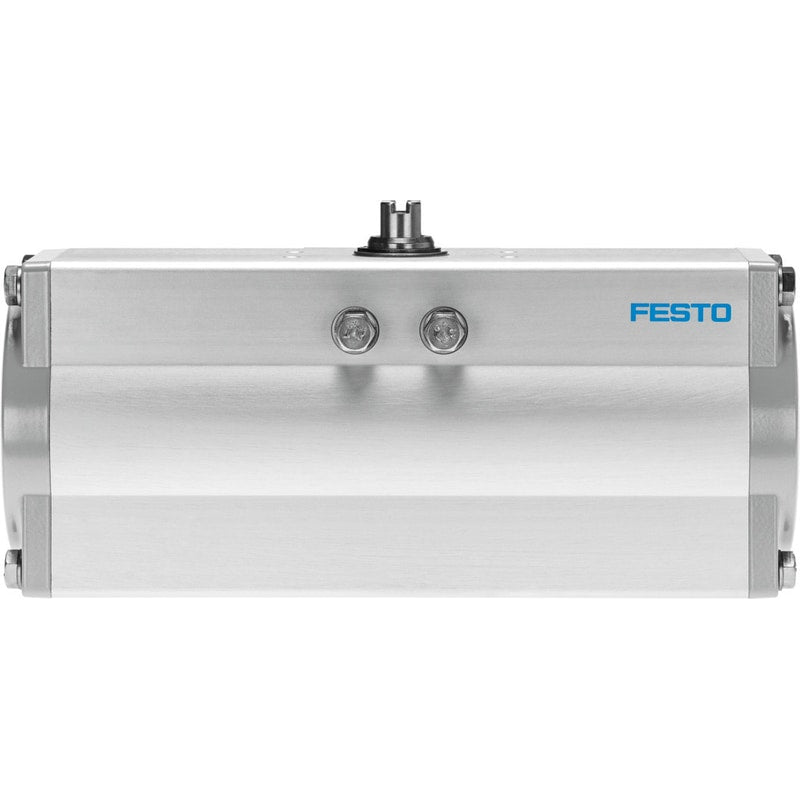

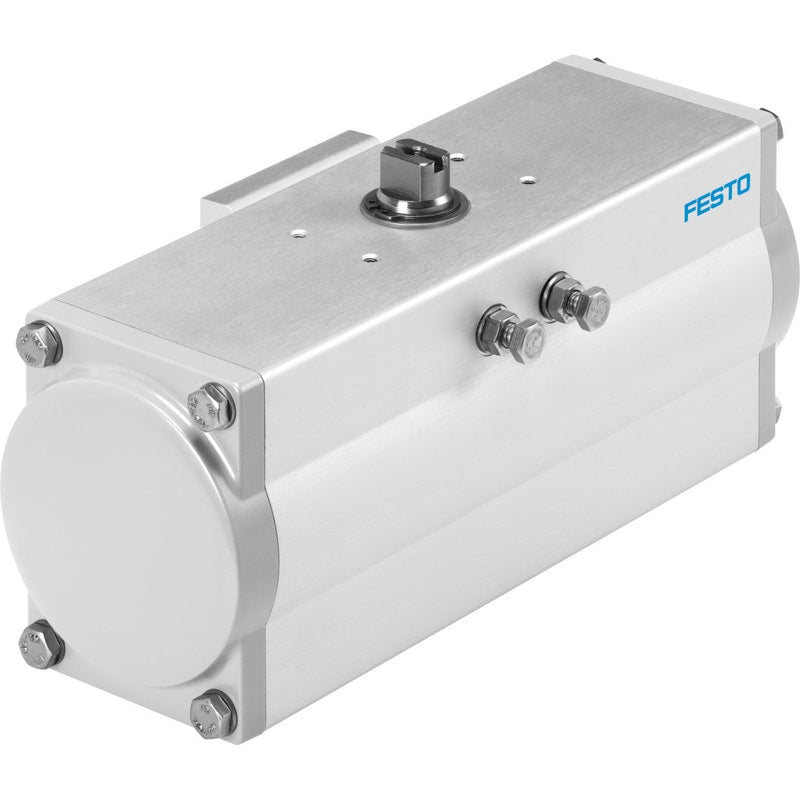

Quarter turn actuator
DFPD-480-RP-180-RD-F1012
8065345
GTIN 4052568442347
Vendor Festo
- Pneumatic connection
- G1/4
- Torque at nominal operating pressure and 0° swivel angle
- 474 Nm
- Swivel angle
- 180 deg
- Flange hole pattern
- F1012
- Shaft connection
- T27
Regular price
$1,838.44
Unit price
