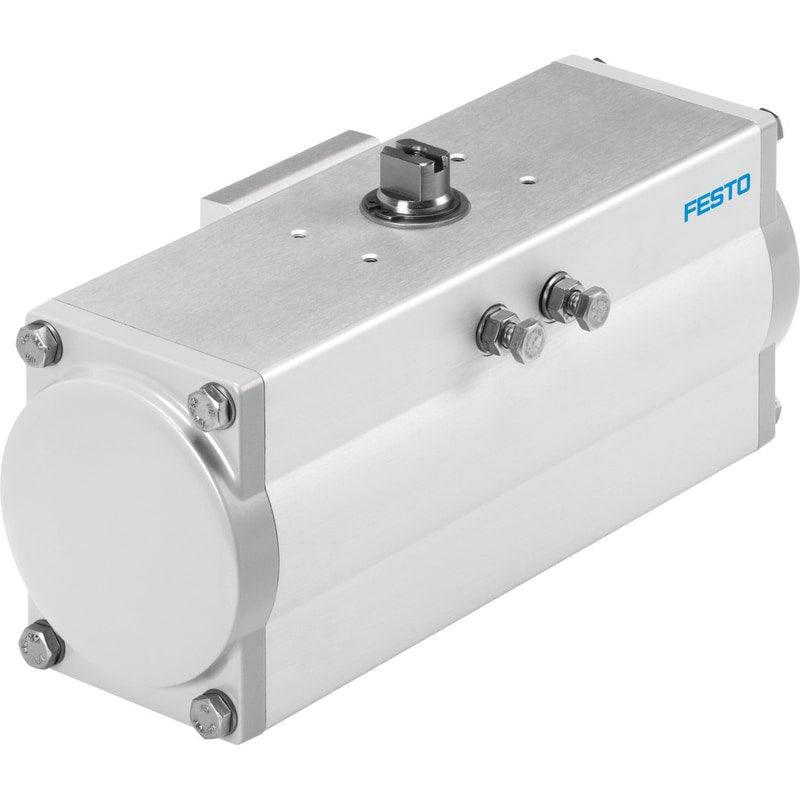

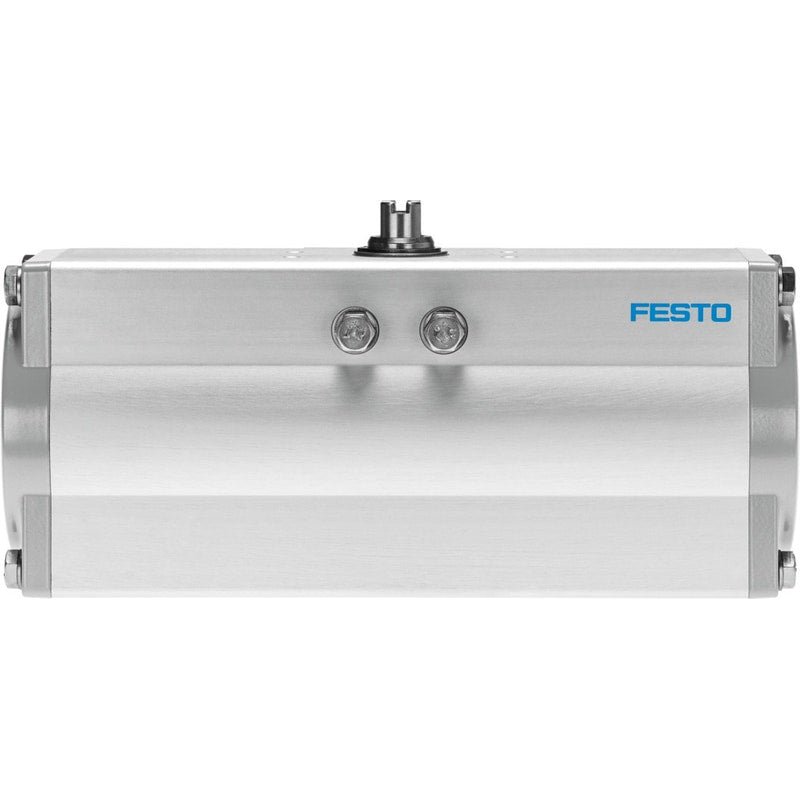

Quarter turn actuator
DFPD-40-RP-135-RD-F0507
8065337
GTIN 4052568442262
Vendor Festo
- Pneumatic connection
- G1/8
- Torque at nominal operating pressure and 0° swivel angle
- 38.3 Nm
- Swivel angle
- 135 deg
- Flange hole pattern
- F0507
- Shaft connection
- T14
Regular price
$288.81
Unit price
DFPD-40-RP-135-RD-F0507 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-40-RP-135-RD-F0507
Regular price
$288.81
Unit price
DFPD-40-RP-135-RD-F0507 is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 40 |
|---|---|
| Flange hole pattern | F0507 |
| Swivel angle | 135 deg |
| End-position adjusting range at 0° | -5 deg ... 5 deg |
| End-position adjusting range at 90° | -5 deg ... 5 deg |
| Depth shaft connection | 16 mm |
| Type code | DFPD |
| Standard connection for valve | ISO 5211 |
| Cushioning | None |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Design | Gear rack/pinion |
| Position sensing | Optical |
| Closing direction | Clockwise closing |
| Symbol | 991265 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Connection for valve positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Safety integrity level (SIL) | Up to SIL 2 high demand mode |
| Operating pressure | 2 bar ... 8 bar |
| Nominal operating pressure | 5.5 bar |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex h IIC T4 Gb X |
| ATEX category for dust | II 2D |
| Explosive ambient temperature | -20°C <= Ta <= +80°C |
| Ambient temperature | -20 °C ... 80 °C |
| Certificate issuing authority | German Technical Control Board (TÃœV) Rheinland |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Dew point min. 10 °C below the ambient and medium temperatureOperation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Storage temperature | -20 °C ... 60 °C |
| Torque at nominal operating pressure and 0° swivel angle | 38.3 Nm |
| Torque at nominal operating pressure and 90° swivel angle | 38.3 Nm |
| Note about the torque | The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling. |
| Air consumption at 6 bar per cycle 0°-90°-0° | 5.6 l |
| Product weight | 2467 g |
| Shaft connection | V14 |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy, anodized |
| Cover material | Die-cast aluminum, coated |
| Material number of cover | EN AC-46100-D |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Material number of housing | EN AW-6063-T6 |
| Material of piston | Aluminium-Druckguss |
| Piston rod material | Die-cast aluminium |
| Material of bearing | POM |
| Cam material | High-alloy stainless steel |
| Cam material number | 1.4301 |
| Material of screws | High-alloy stainless steel |
| Shaft material | Steel, nickel-plated |
| Material number for shaft | 1.0715 |
