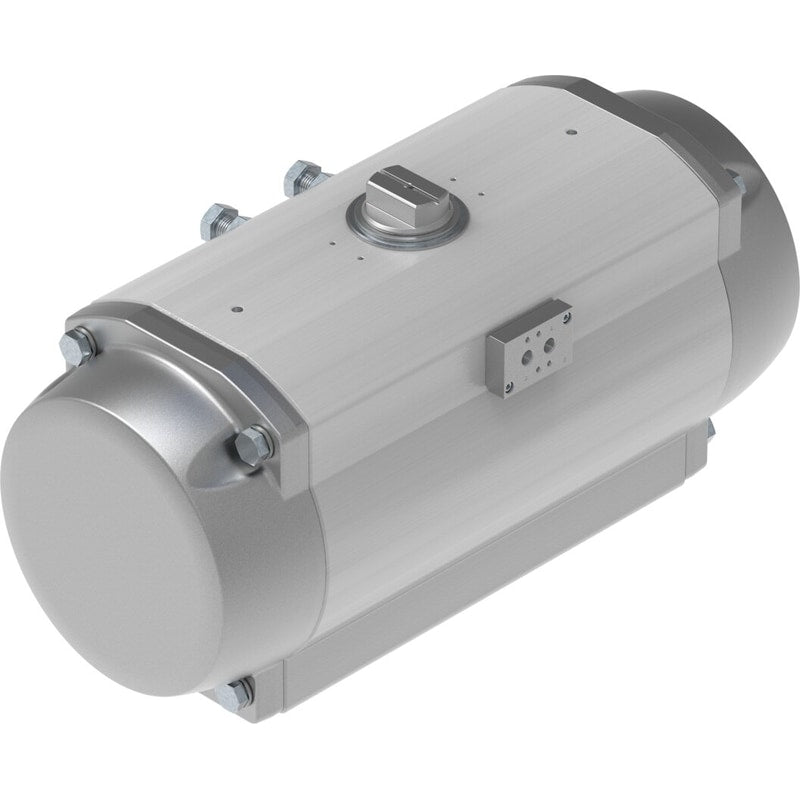

Quarter turn actuator
DFPD-2300-RP-90-RS60-F1216-R3-EP
8065276
GTIN 4052568442248
Vendor Festo
- Pneumatic connection
- G1/4
- Torque at nominal operating pressure and 0° swivel angle
- 1523 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F1216
- Shaft connection
- T46
Regular price
$4,780.50
Unit price
Quarter turn actuator DFPD-2300-RP-90-RS60-F1216-R3-EP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-2300-RP-90-RS60-F1216-R3-EP
Regular price
$4,780.50
Unit price
Quarter turn actuator DFPD-2300-RP-90-RS60-F1216-R3-EP is backordered and will ship as soon as it is back in stock.
semi-rotary drive DFPD-2300-RP-90-RS60-F1216-R3-EP Part number: 8065276 single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, epoxy coating, stainless steel shaft.
| Size of actuator | 2300 |
|---|---|
| Flange hole pattern | F1216 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | '-5 ... 5 deg |
| Shaft connection depth | 48 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Rack and pinion |
| Position detection | Optical |
| Closing direction | right-closing |
