Connecting cable

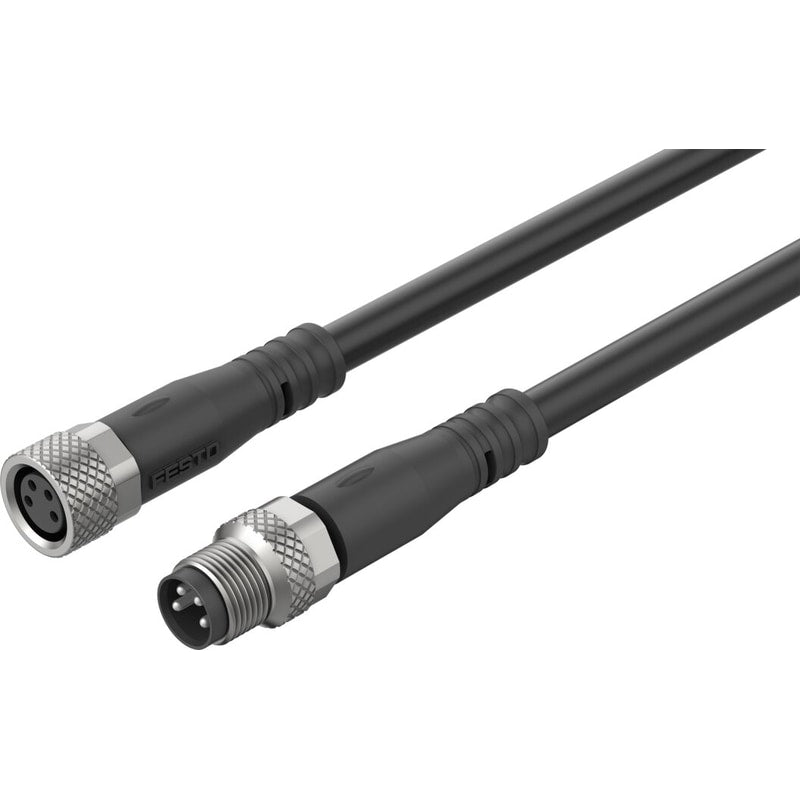

NEBL-M8G4-E-1-N-M8G4
8065104
GTIN 4052568457075
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Cable length
- 1 m
Regular price
$24.05
Unit price
NEBL-M8G4-E-1-N-M8G4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBL-M8G4-E-1-N-M8G4
Regular price
$24.05
Unit price
NEBL-M8G4-E-1-N-M8G4 is backordered and will ship as soon as it is back in stock.
| Type code | NEBL |
|---|---|
| Shield | no |
| Conforms to standard | EN 61076-2-104 |
| Explosion prevention and protection | Observe the information on the certificateZone 2 (ATEX)Zone 22 (ATEX) |
| Cable designation | Without label holder |
| Contact durability | 100 |
| Product weight | 56 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with hexagon AF 9 and longitudinal knurl |
| Electrical connection for input 1, connection pattern | 00991872 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 9 and longitudinal knurl |
| Electrical connection 2, connection pattern | 00991171 |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Operating voltage range AC | 0 V ... 30 V |
| Nominal operating voltage AC | 24 V |
| Current rating at 40°C | 5.6 A |
| Note on acceptable current load at 40°C | 5.3 A at 60°C |
| Surge resistance | 0.8 kV |
| Protective earth connection | Not available |
| Cable length | 1 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 15 mm |
| Bending radius, flexible cable installation | ≥ 50 mm |
| Cable diameter | 4.8 mm |
| Cable diameter tolerance | ± 0.15 mm |
| Cable design | 4 x 0.5 mm² |
| Nominal conductor cross section | 0.5 mm² |
| Degree of protection | IP65IP67IP69K |
| Note on degree of protection | In mounted state |
| Special features | Oil-resistant |
| Ambient temperature | -40 °C ... 85 °C |
| Ambient temperature with flexible cable installation | -20 °C ... 85 °C |
| Storage temperature | -40 °C ... 85 °C |
| Note on materials | Free of copper and PTFERoHS-compliantHalogen-free |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated |
| Insulating sheath material | PP |
