Proximity sensor
SMT-10G-NS-24V-E-2,5Q-OE
8065030
GTIN 4052568290818
Vendor Festo
- Electrical connection 1, connection technology
- Open end
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Switching output
- NPN
Regular price
$75.14
Unit price
SMT-10G-NS-24V-E-2,5Q-OE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-10G-NS-24V-E-2,5Q-OE
Regular price
$75.14
Unit price
SMT-10G-NS-24V-E-2,5Q-OE is backordered and will ship as soon as it is back in stock.

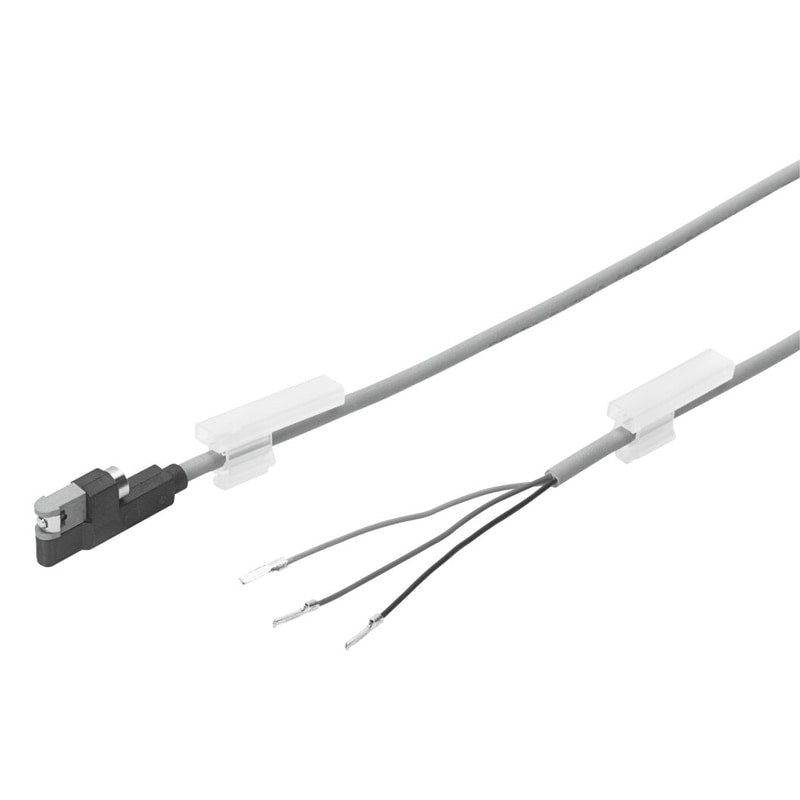

proximity sensor SMT-10G-NS-24V-E-2,5Q-OE Magnetic, contactless, for C-slot. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measuring principle=Magnetoresistive, Ambient temperature=-20 - 70 °C
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measuring principle | Magnetoresistive |
| Ambient temperature | '-20 ... 70 °C |
| Switch output | NPN |
| Switching element function | Normally open contact |
| Max. output current | 100 mA |
| Max. contact rating DC | 2.8 W |
| Short circuit strength | Yes |
| Overload withstand capability | Available |
| Operating voltage range DC | 10 ... 30 V |
| Polarity protected | for all electrical connections |
