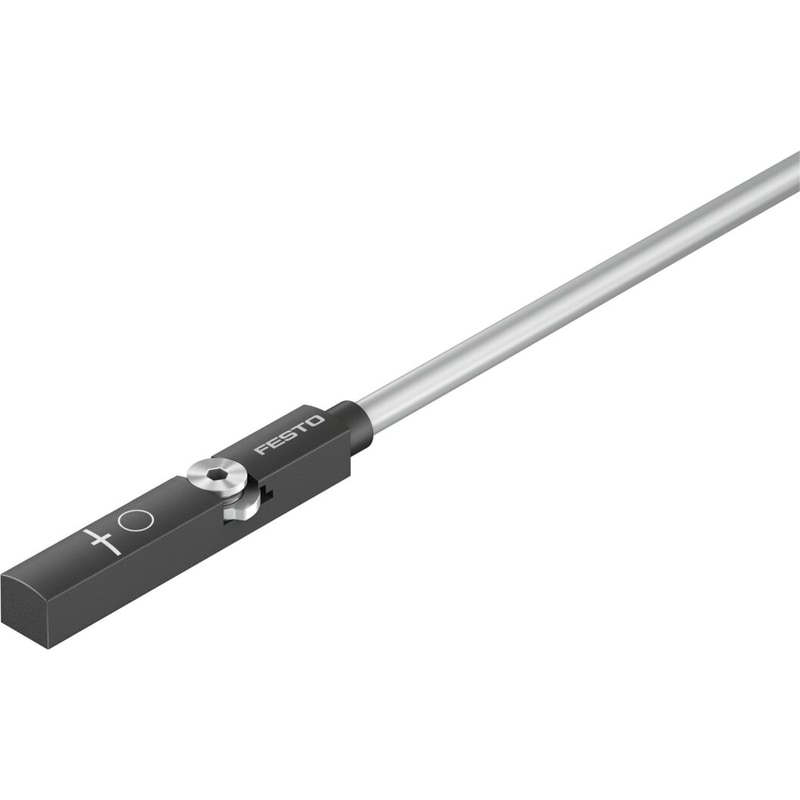

Position transmitter
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE
8063975
GTIN 4052568442132
Vendor Festo
- Design
- for T-slot
- Displacement resolution
- 0.02 mm
Regular price
$132.37
Unit price
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE
Regular price
$132.37
Unit price
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE is backordered and will ship as soon as it is back in stock.

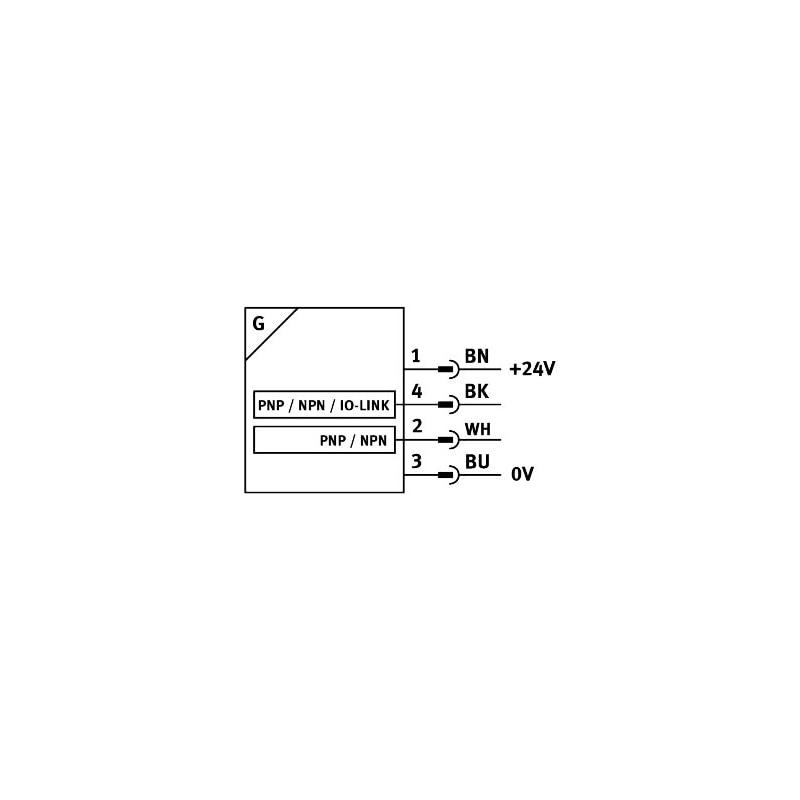

| Type code | SDAS |
|---|---|
| Electrical connection 1, connection type | Cable |
| KC characters | KC EMC |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995894 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Halogen-freeRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | ≤ 52000 µm |
| Ambient temperature | -40 °C ... 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | ≤ 0.02 mm |
| Repetition accuracy | 0.2 mm |
| Switching output | 2x PNP or 2x NPN adjustable |
| Switching element function | N/C contact/N/O contact switchable |
| On time | < 4 ms |
| Switch-off time | < 4 ms |
| Max. switching frequency | 125 Hz |
| Max. output current | 50 mA |
| Max. switching capacity DC | 1.5 W |
| Voltage drop | < 0.5 V |
| Typical linearity error in ± mm | ±1 mm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | I-PortIO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | IdentificationSwitching signal channel (SSC)DiagnosticsTeach channelProcess data variable (PDV) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 12 bit PDV (position measurement)4 bit SSC (switching signal) |
| IO-Link®, minimum cycle time | 2.5 ms |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Torsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standardCable chain: 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot from aboveScrewed tightly |
| Mounting position | Any |
| Product weight | 27 g |
| Housing material | High-alloy stainless steelPA-reinforced |
| Switching status indication | LED yellow |
| Status indicator | LED red |
| Setting options | Capacitive pushbuttonIO-Link® |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP68IP65 |
