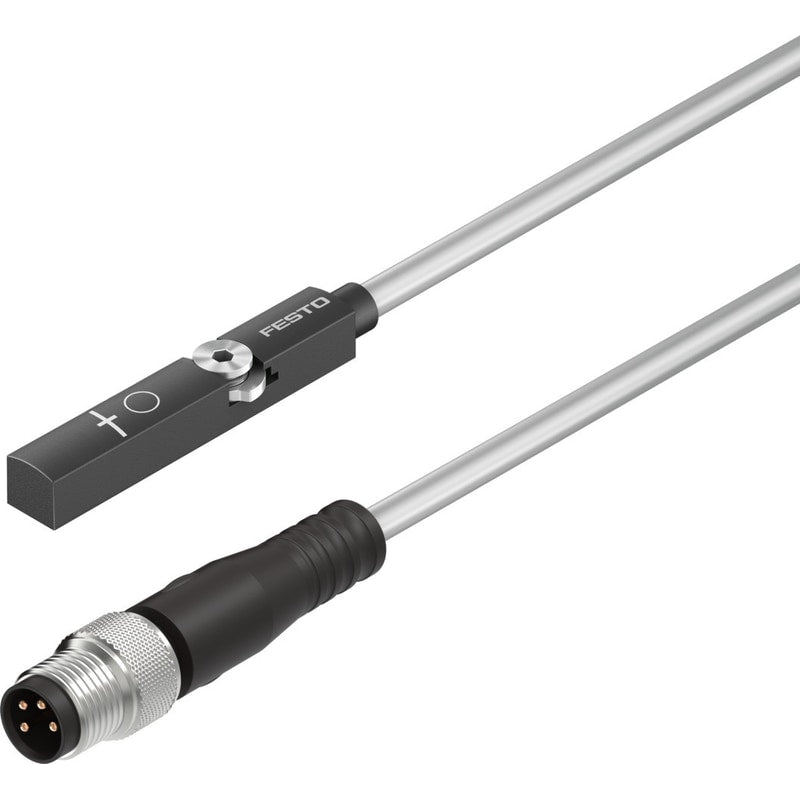

Position transmitter
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8
8063974
GTIN 4052568442125
Vendor Festo
- Design
- for T-slot
- Displacement resolution
- 0.02 mm
Regular price
$134.75
Unit price
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8
Regular price
$134.75
Unit price
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
| Type code | SDAS |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |

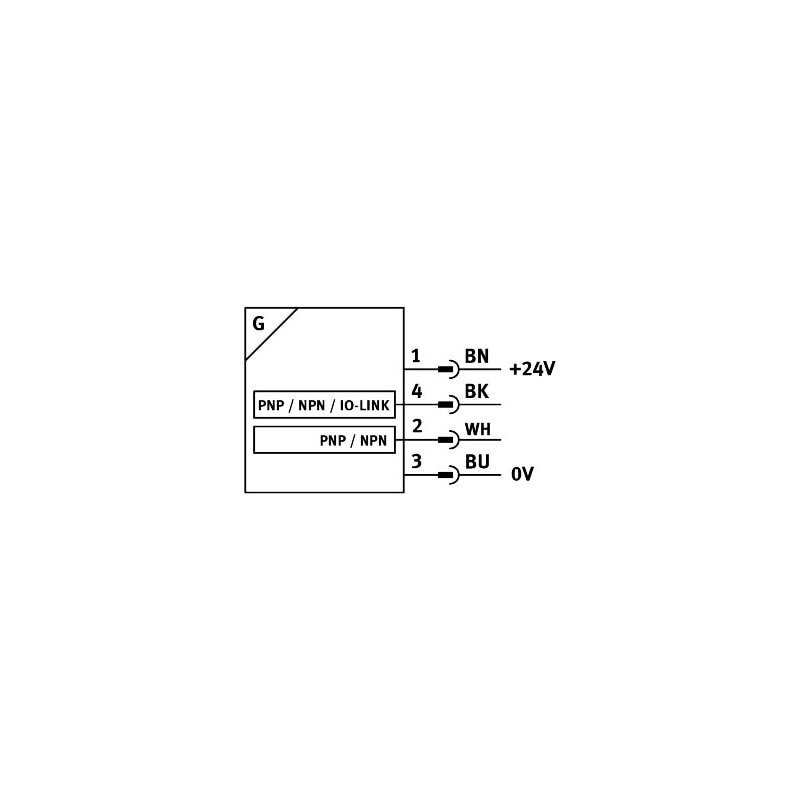

| Electrical connection for input 1, connection pattern | 991171 |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995894 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Halogen-freeRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | ≤ 52000 µm |
| Ambient temperature | -40 °C ... 80 °C |
| Typical sampling interval | 2 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | ≤ 0.02 mm |
| Repetition accuracy | 0.2 mm |
| Switching output | 2x PNP or 2x NPN adjustable |
| Switching element function | N/C contact/N/O contact switchable |
| On time | < 4 ms |
| Max. switching frequency | 125 Hz |
| Max. switching output voltage DC | 30 V |
| Max. output current | 50 mA |
| Max. switching capacity DC | 1.5 W |
| Voltage drop | < 0.5 V |
| Typical linearity error in ± mm | ±1 mm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | IO-Link®I-Port |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | DiagnosticsIdentificationTeach channelSwitching signal channel (SSC)Process data variable (PDV) |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 4 bit SSC (switching signal)12 bit PDV (position measurement) |
| IO-Link®, minimum cycle time | 2.5 ms |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Copper alloy, gold-plated |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 28 mmFlexural strength: as per Festo standardTorsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightlyCan be inserted in slot from above |
| Mounting position | Any |
| Product weight | 9.5 g |
| Housing material | High-alloy stainless steelPA-reinforced |
| Material of union nut | Brass, nickel-plated |
| Switching status indication | LED yellow |
| Status indicator | LED red |
| Setting options | IO-Link®Capacitive pushbutton |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP68IP65 |
