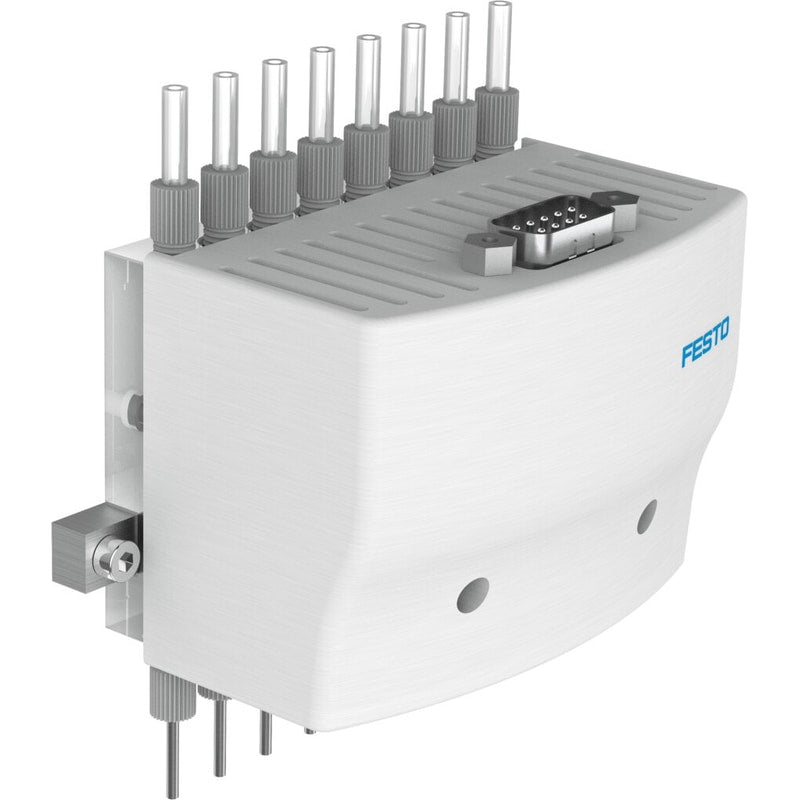

Dispense head
VTOE-8-D8-T3-M22C-08-F-P-P-M
8063638
GTIN 4052568296766
Vendor Festo
- Nominal width of dosing needle
- 0.6 mm
- Electrical connection
- Plug - Sub-D
- Fluid connector
- 8x UNF1/4-28
- Degree of protection
- IP30
Regular price
$3,098.06
Unit price
VTOE-8-D8-T3-M22C-08-F-P-P-M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VTOE-8-D8-T3-M22C-08-F-P-P-M
Regular price
$3,098.06
Unit price
VTOE-8-D8-T3-M22C-08-F-P-P-M is backordered and will ship as soon as it is back in stock.
| Valve function | 2/2, closed, monostable |
|---|---|
| Fluid connector | 8x UNF1/4-28 |
| Type of mounting | Optionally:With internal thread and centering sleeveWith through-hole for M3 screw |
| Materials in contact with the media | ETFEHigh-alloy stainless steelFFPMPEEK |
| Mounting position | Any |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Duty cycle | 1 |
| Note on power consumption | Specification per pneumatic valve |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4301 |
| Electrical connection | 9-pinPlugSub-D |
| Max. electrical power consumption | 1.8 W |
| Width dimension | 9 mm |
| Nominal width of dosing needle | 0.6 mm |
| Storage temperature | 5 °C ... 40 °C |
| Product weight | 220 g |
| Operating pressure | 0 bar ... 0.5 bar |
| Nominal width | 0.8 mm |
| Type code | VTOE |
| Sealing principle | Soft |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Nominal operating voltage DC | 24 V |
| Operating medium | Gaseous mediaLiquid media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Temperature of medium | 5 °C ... 50 °C |
| Degree of protection | IP30 |
| Ambient temperature | 5 °C ... 40 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Actuation type | Electrical |
