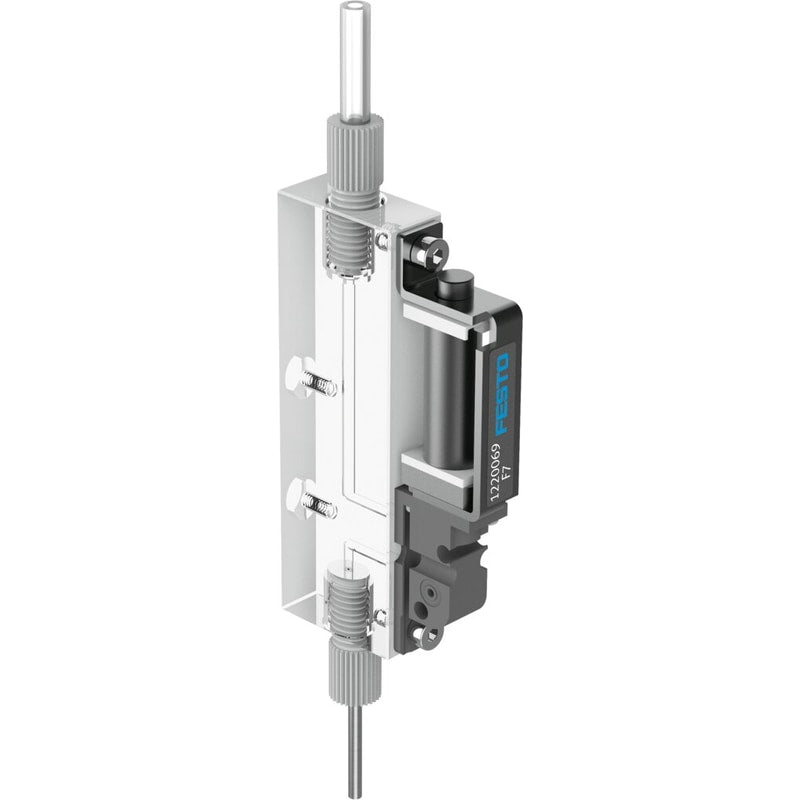

Dispense head
VTOE-D8-T3-M22C-08-F-P-P-S
8063373
GTIN 4052568296704
Vendor Festo
- Nominal width of dosing needle
- 0.6 mm
- Electrical connection
- Cable - Open end
- Fluid connector
- UNF1/4-28
- Degree of protection
- IP30
Regular price
$476.04
Unit price
VTOE-D8-T3-M22C-08-F-P-P-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VTOE-D8-T3-M22C-08-F-P-P-S
Regular price
$476.04
Unit price
VTOE-D8-T3-M22C-08-F-P-P-S is backordered and will ship as soon as it is back in stock.
| Valve function | 2/2, closed, monostable |
|---|---|
| Fluid connector | UNF1/4-28 |
| Type of mounting | With internal thread and centering sleeve |
| Materials in contact with the media | High-alloy stainless steelFFPMPEEKETFE |
| Mounting position | Any |
| Note on fluid connector | Fitting enclosed for pneumatic tubing with 3 mm outside diameter |
| Duty cycle | 1 |
| Material of dosing needle | High-alloy stainless steel |
| Material number for dosing needle | 1.4301 |
| Wire ends | Stripped |
| Nominal conductor cross section | AWG28 |
| Electrical connection | Cable2-wireOpen end |
| Max. electrical power consumption | 1.8 W |
| Width dimension | 9 mm |
| Nominal width of dosing needle | 0.6 mm |
| Storage temperature | 5 °C ... 40 °C |
| Product weight | 18 g |
| Cable length | 0.15 m |
| Operating pressure | 0 bar ... 0.5 bar |
| Nominal width | 0.8 mm |
| Type code | VTOE |
| Sealing principle | Soft |
| Reset method | Mechanical spring |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Gaseous mediaLiquid media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Temperature of medium | 5 °C ... 50 °C |
| Degree of protection | IP30 |
| Ambient temperature | 5 °C ... 40 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Actuation type | Electrical |
