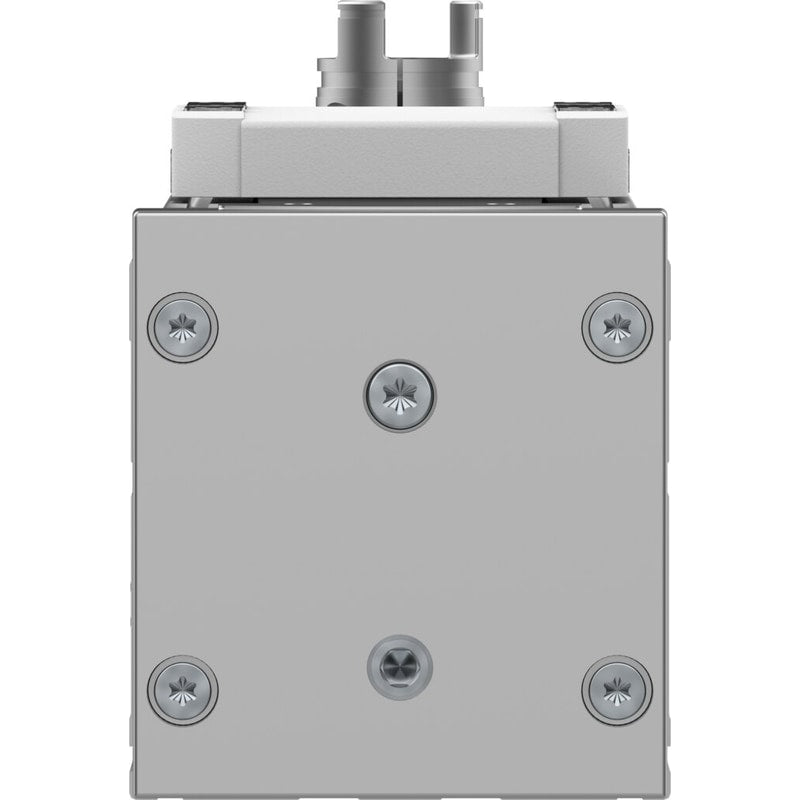

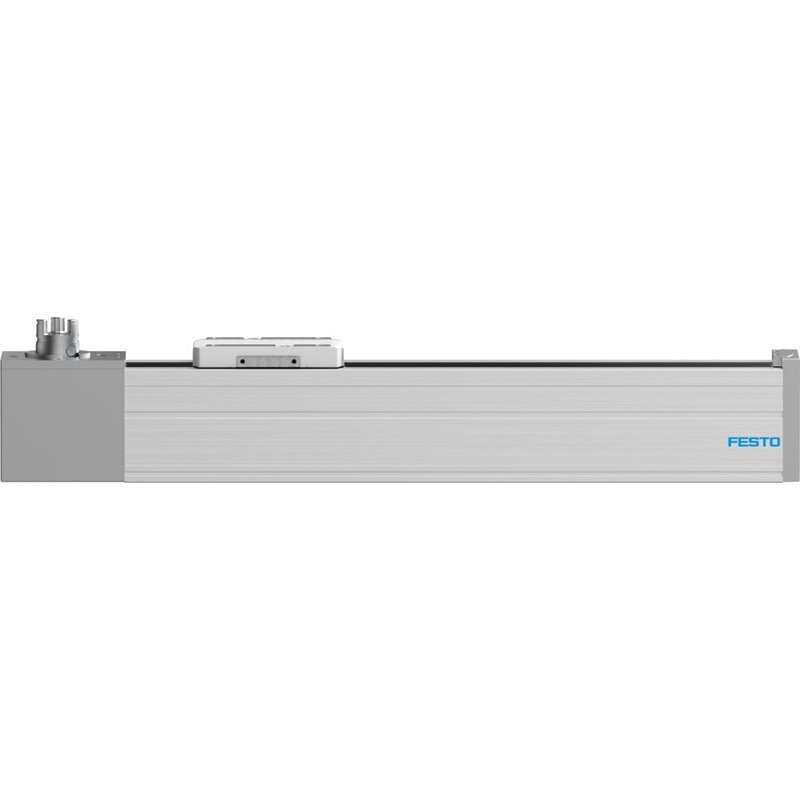

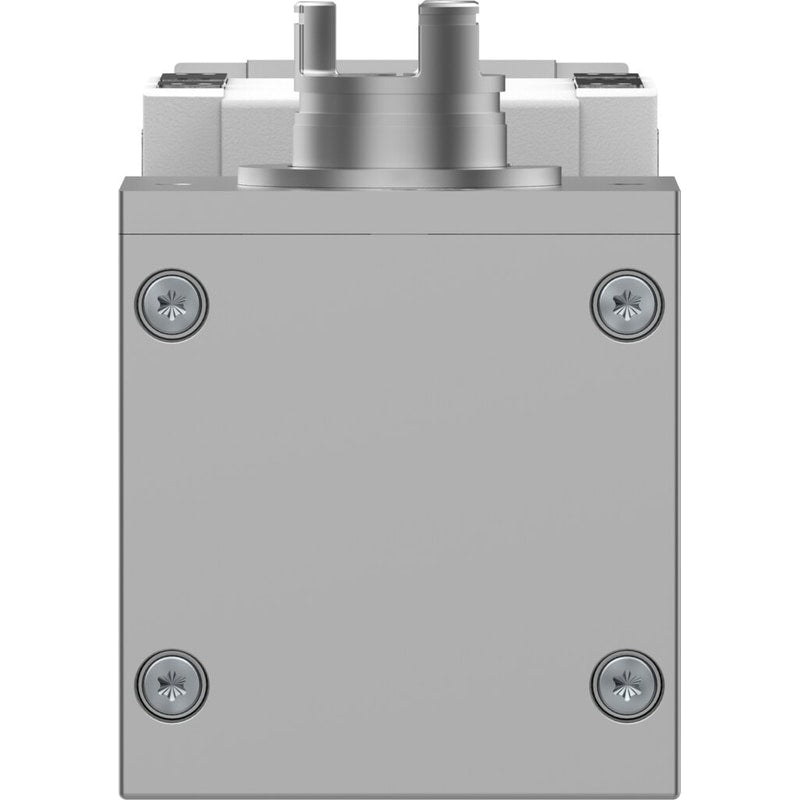

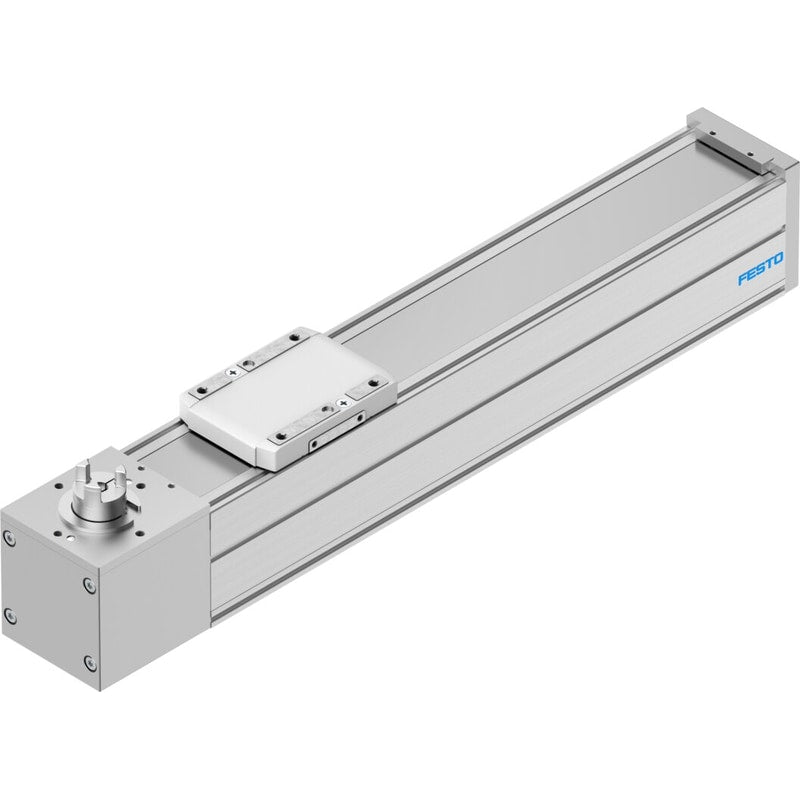

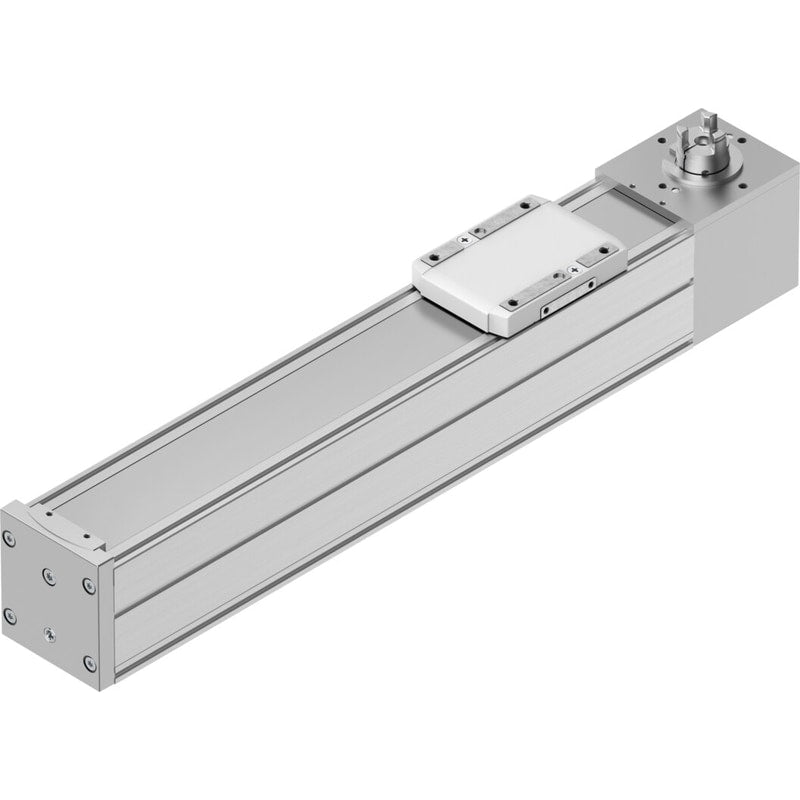

Belt driven linear actuator
ELGC-TB-KF-80-200
8062786
GTIN 4052568296155
Vendor Festo
- Size
- 80
- Max. feed force Fx
- 250 N
- Repetition accuracy
- ±0.1 mm
Regular price
$804.05
Unit price
ELGC-TB-KF-80-200 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGC-TB-KF-80-200
Regular price
$804.05
Unit price
ELGC-TB-KF-80-200 is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 33.42 mm |
|---|---|
| Working stroke | 200 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.002 |
| Toothed belt pitch | 3 mm |
| Type code | ELGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Symbol | 991212 |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 15 m/s² |
| Max. speed | 1.5 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| 2nd moment of area Iy | 1370000 mmâ´ |
| 2nd moment of area Iz | 1660000 mmâ´ |
| Max. driving torque | 4.178 Nm |
| Max. force Fy | 900 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 552 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 1104 N |
| Max. no-load resistance to shifting | 24.7 N |
| Max. torque Mx | 59.8 Nm |
| Max. torque My | 56.2 Nm |
| Max. torque Mz | 56.2 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 5 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 4 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 4 Nm |
| Max. feed force Fx | 250 N |
| No-load driving torque | 0.413 Nm |
| Torsion moment of inertia It | 90500 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.1927 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.793 kgcm² |
| Mass moment of inertia JO | 2.912 kgcm² |
| Feed constant | 105 mm/U |
| Moving mass | 901 g |
| Moving mass at 0Â mm stroke | 901 g |
| Slide weight | 272 g |
| Additional weight per 10Â mm stroke | 73 g |
| Basic weight with 0Â mm stroke | 3500 g |
| Product weight | 4956 g |
| Interface code, actuator | T46 |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | Stainless steel strip |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Tempered steel |
| Guide rail material | Tempered steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Die-cast aluminum |
| Toothed belt material | Polychloroprene with glass fiber |
