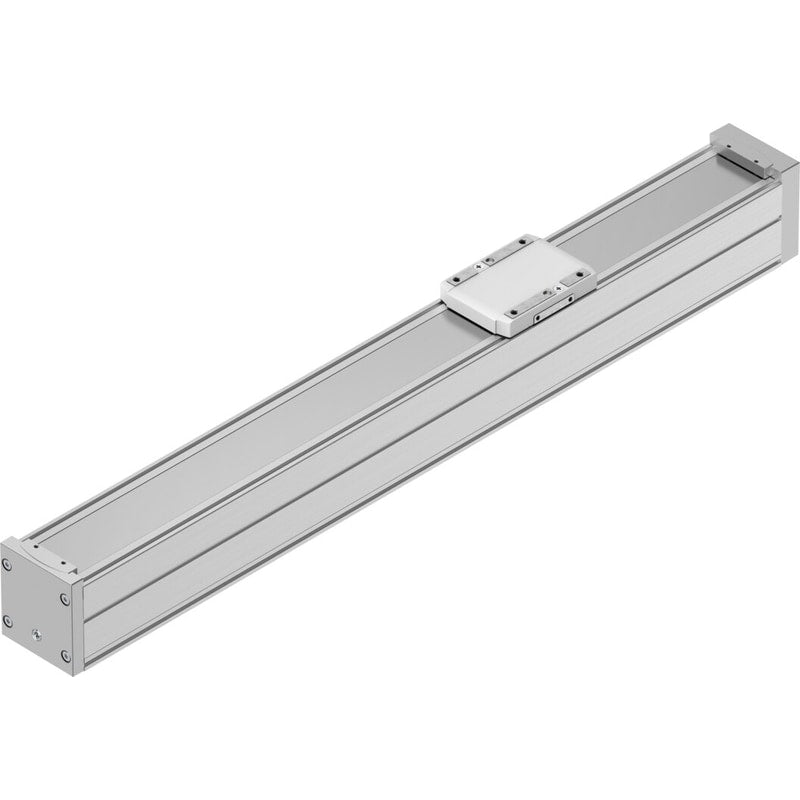

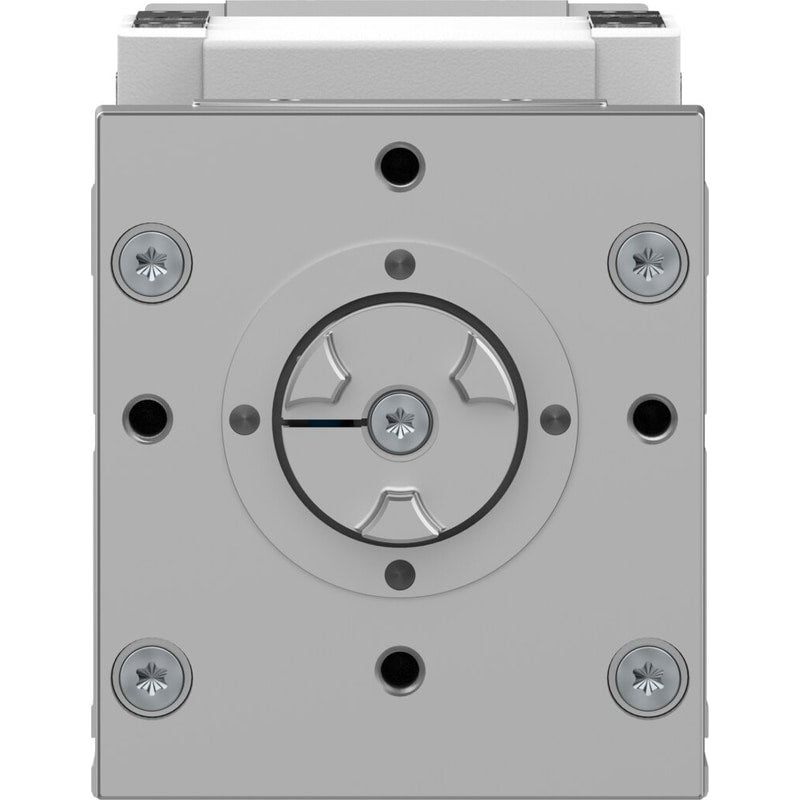

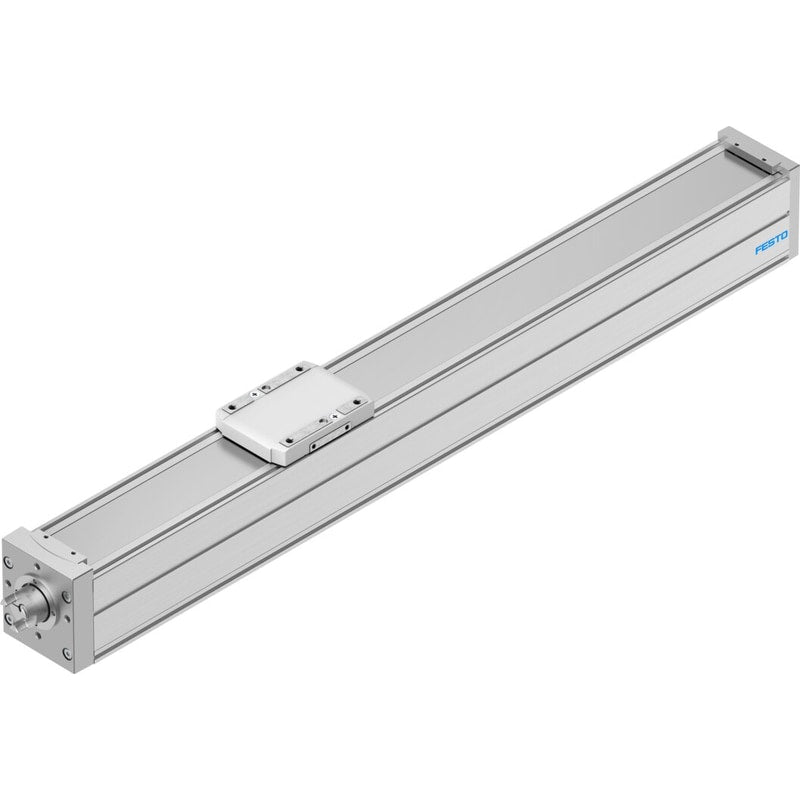

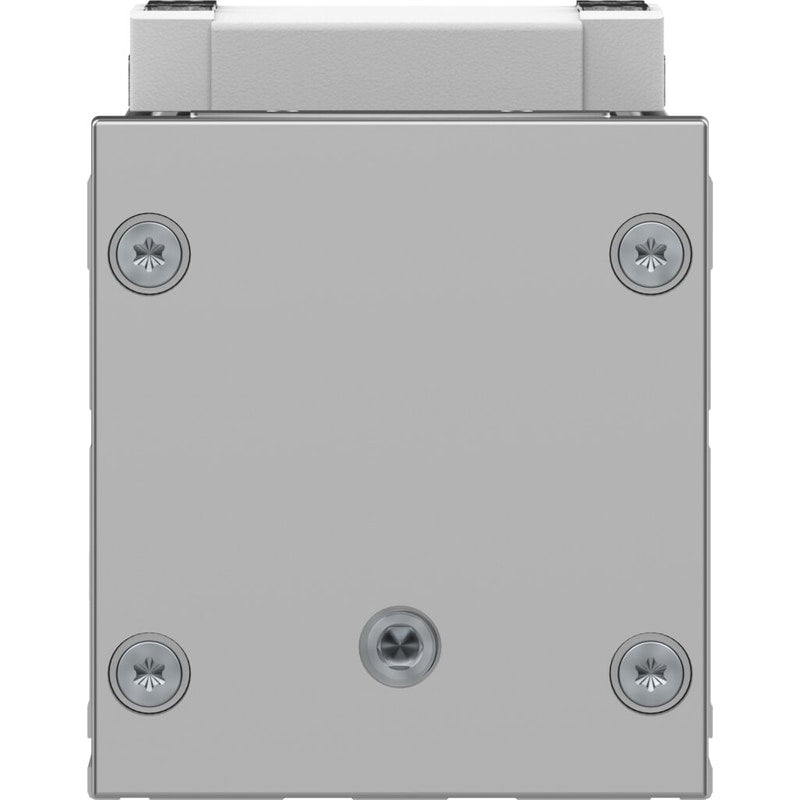

Ball screw axis
ELGC-BS-KF-80-600-16P
8061503
GTIN 4052568295929
Vendor Festo
- Size
- 80
- Max. feed force Fx
- 350 N
- Repetition accuracy
- ±0.01 mm
Regular price
$1,321.88
Unit price
ELGC-BS-KF-80-600-16P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGC-BS-KF-80-600-16P
Regular price
$1,321.88
Unit price
ELGC-BS-KF-80-600-16P is backordered and will ship as soon as it is back in stock.
| Working stroke | 600 mm |
|---|---|
| Size | 80 |
| Stroke reserve | 0 mm |
| Screw diameter | 16 mm |
| Spindle pitch | 16 mm/U |
| Type code | ELGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screwElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Spindle type | Ball screw drive |
| Symbol | 991211 |
| Max. acceleration | 15 m/s² |
| Max. rotational speed | 3750 1/min |
| Max. speed | 1 m/s |
| Repetition accuracy | ±0.01 mm |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| 2nd moment of area Iy | 1370000 mmâ´ |
| 2nd moment of area Iz | 1660000 mmâ´ |
| No-load torque at maximum travel speed | 0.396 Nm |
| No-load torque at minimum travel speed | 0.095 Nm |
| Max. force Fy | 900 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 3312 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 9936 N |
| Max. torque Mx | 59.8 Nm |
| Max. torque My | 56.2 Nm |
| Max. torque Mz | 56.2 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 220 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 207 Nm |
| Max. feed force Fx | 350 N |
| Torsion moment of inertia It | 90500 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.35257 kgcm² |
| Mass moment of inertia JL per kg of payload | 0.064846 kgcm² |
| Mass moment of inertia JO | 0.07856 kgcm² |
| Feed constant | 16 mm/U |
| Moving mass | 978 g |
| Additional weight per 10Â mm stroke | 88 g |
| Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
| Static deflection (load at standstill) | 0.1 % of axis length |
| Interface code, actuator | T46 |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | High-alloy stainless steel |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Slide material | Die-cast aluminum |
| Spindle nut material | Steel |
| Spindle material | Steel |
