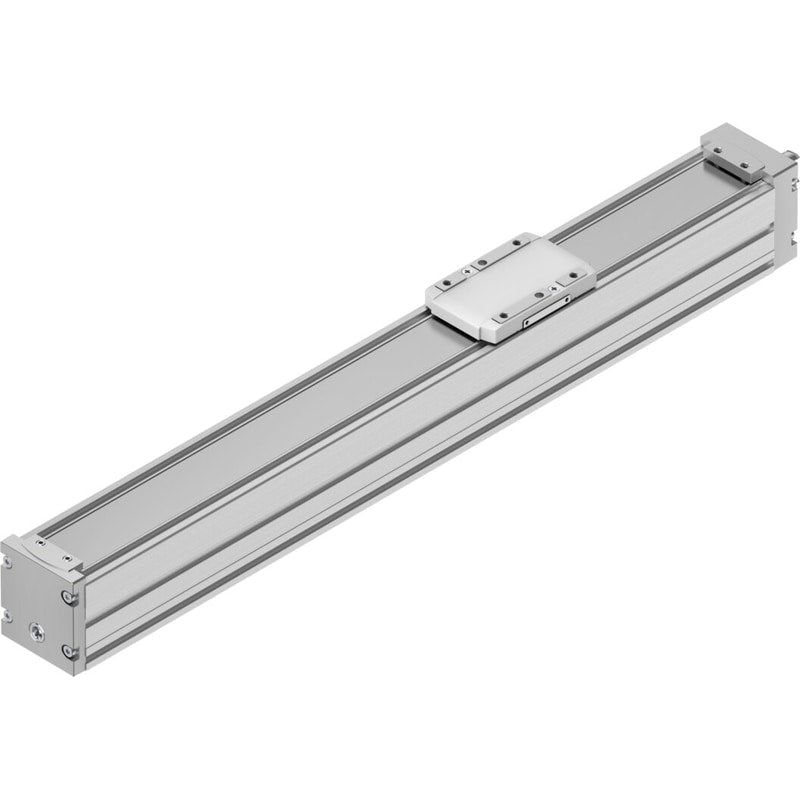

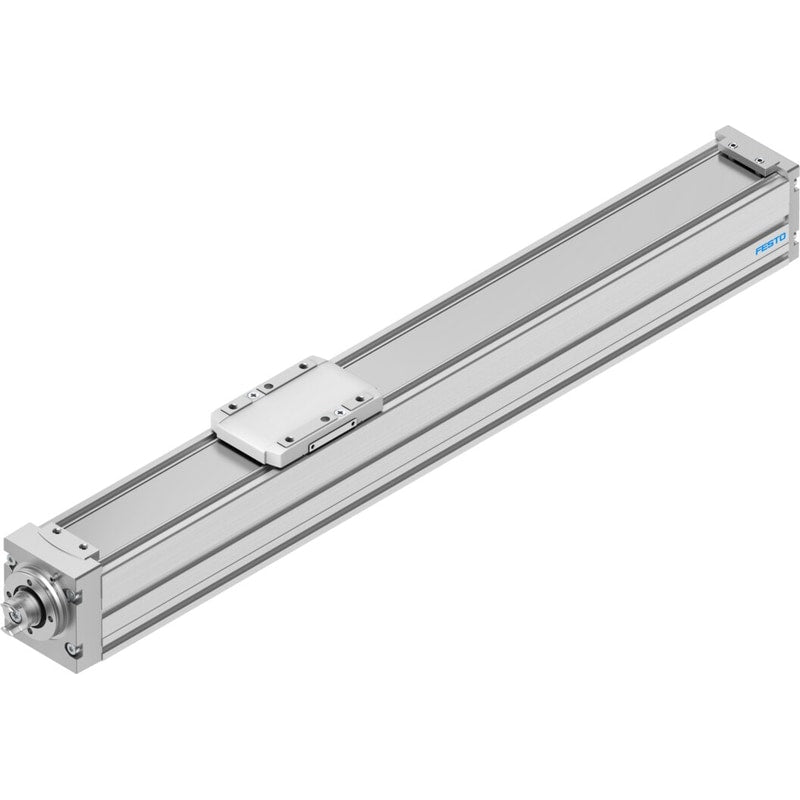

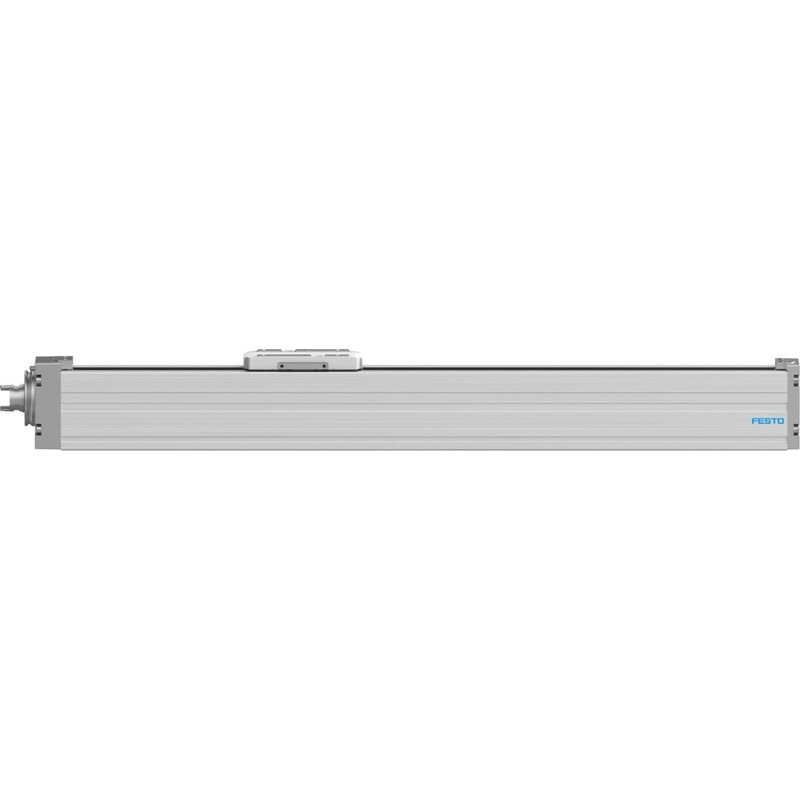

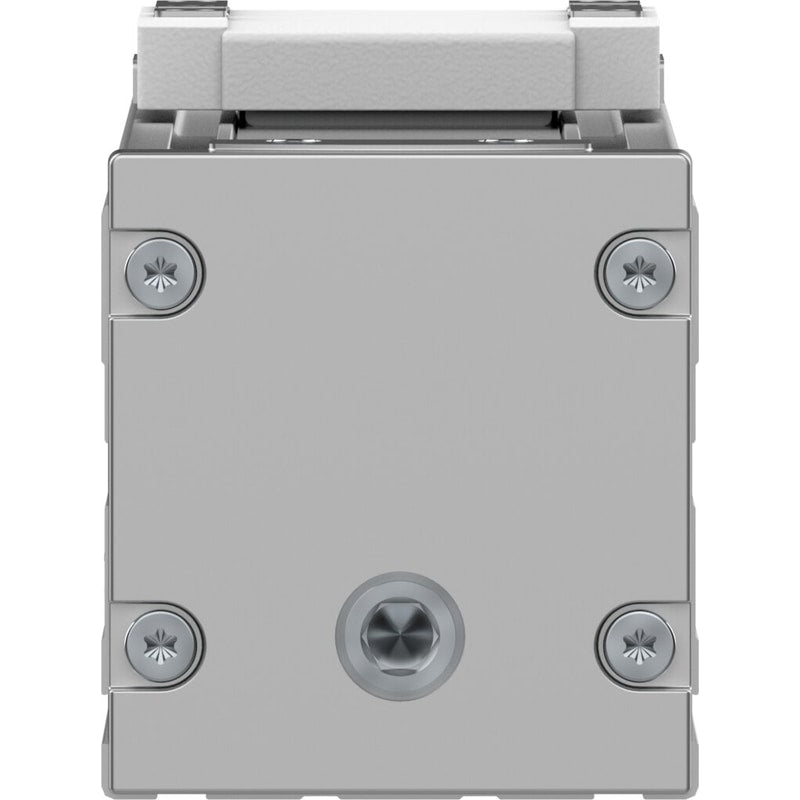

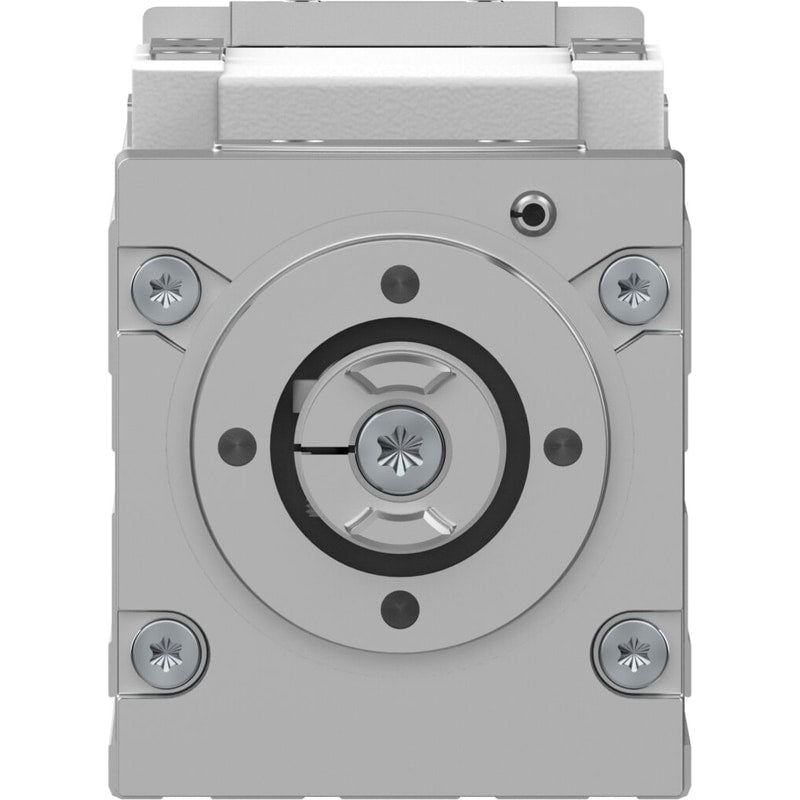

Ball screw axis
ELGC-BS-KF-45-300-10P
8061486
GTIN 4052568295752
Vendor Festo
- Size
- 45
- Max. feed force Fx
- 100 N
- Repetition accuracy
- ±0.015 mm
Regular price
$988.22
Unit price
ELGC-BS-KF-45-300-10P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGC-BS-KF-45-300-10P
Regular price
$988.22
Unit price
ELGC-BS-KF-45-300-10P is backordered and will ship as soon as it is back in stock.
| Working stroke | 300 mm |
|---|---|
| Size | 45 |
| Stroke reserve | 0 mm |
| Screw diameter | 10 mm |
| Spindle pitch | 10 mm/U |
| Type code | ELGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screwElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Spindle type | Ball screw drive |
| Symbol | 991211 |
| Max. acceleration | 15 m/s² |
| Max. rotational speed | 3600 1/min |
| Max. speed | 0.6 m/s |
| Repetition accuracy | ±0.015 mm |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| 2nd moment of area Iy | 140000 mmâ´ |
| 2nd moment of area Iz | 170000 mmâ´ |
| No-load torque at maximum travel speed | 0.12 Nm |
| No-load torque at minimum travel speed | 0.032 Nm |
| Max. force Fy | 300 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 1104 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 2208 N |
| Max. torque Mx | 5.5 Nm |
| Max. torque My | 4.7 Nm |
| Max. torque Mz | 4.7 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 20 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 17 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 17 Nm |
| Max. feed force Fx | 100 N |
| Torsion moment of inertia It | 8500 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.05056 kgcm² |
| Mass moment of inertia JL per kg of payload | 0.02533 kgcm² |
| Mass moment of inertia JO | 0.0082 kgcm² |
| Feed constant | 10 mm/U |
| Moving mass | 220 g |
| Additional weight per 10Â mm stroke | 36 g |
| Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
| Static deflection (load at standstill) | 0.1 % of axis length |
| Interface code, actuator | V32 |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | High-alloy stainless steel |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Slide material | Die-cast aluminum |
| Spindle nut material | Steel |
| Spindle material | Steel |
