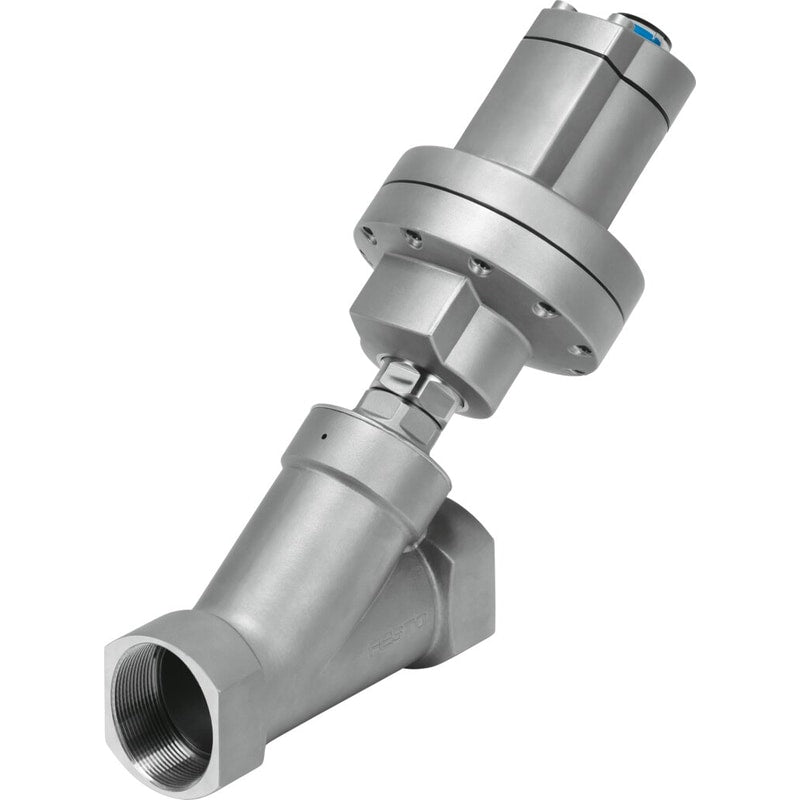

Angle seat valve
VZXA-B-TS7-2"-M2-V14T-10-M-90-26-V4
8060553
GTIN 4052568435851
Vendor Festo
- Cable connection
- Threaded sleeve 2 NPT as per ANSI/ASME B 1.20.1
- Flow rate Kv
- 60.4 m³/h
- Medium pressure
- 0 bar - 10 bar
- Degree of protection
- IP65 - IP67
Regular price
$1,601.17
Unit price
VZXA-B-TS7-2"-M2-V14T-10-M-90-26-V4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZXA-B-TS7-2"-M2-V14T-10-M-90-26-V4
Regular price
$1,601.17
Unit price
VZXA-B-TS7-2"-M2-V14T-10-M-90-26-V4 is backordered and will ship as soon as it is back in stock.
| Type code | VZXA |
|---|---|
| Certificate issuing authority | German Technical Control Board (TÃœV) 968/V 1039.00/18German Technical Control Board (TÃœV) 968/V 1039.00/18 |
| Safety integrity level (SIL) | SIL 2 |
| PFH | 0.000000136 |
| PFD | 0.000595 |
| Design | Poppet valve with diaphragm actuator |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Cable connection | Threaded sleeve NPT2 as per ANSI/ASME B 1.20.1 |
| Valve function | 43498 |
| Flow direction | Non-reversible |
| Medium pressure | 0 bar ... 10 bar |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Pneumatic connection | Internal thread G1/8 |
| Operating pressure | 5 bar ... 7 bar |

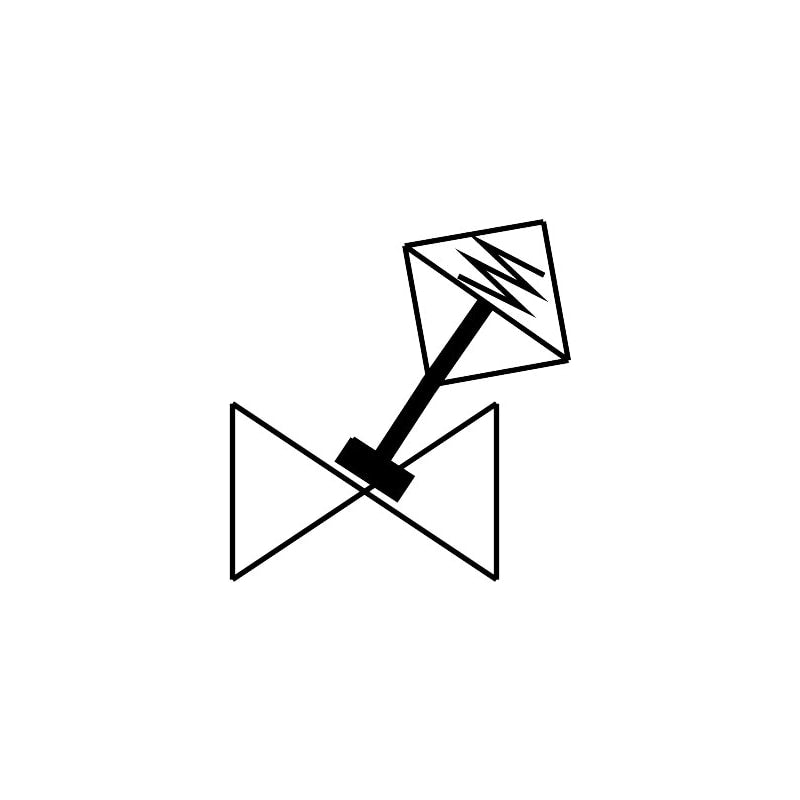

| Symbol | 995582 |
| Medium | Hydraulic fluid based on mineral oilInert gasVaporWaterNeutral liquidsFiltered compressed air, 200 µm filter meshMineral oil |
| Flow direction | Under valve seat, for gaseous and liquid media |
| Control of the medium | On/off mode |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Ambient temperature | 0 °C ... 60 °C |
| Flow rate Kv | 60.4 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Valve housing material | Cast stainless steel |
| Material number, fitting housing | ASTM A351-CF3M |
| Seals material | NBR |
| Spindle seal material | PTFE |
| Seat seal material | PTFE |
| Product weight | 8610 g |
| CE marking (see declaration of conformity) | as per EU machinery directive |
| Actuator size | 90 mm |
| Stroke | 26 mm |
| Control function | Closed by spring force, NC |
| Position sensing | With mechanical indicator |
| Drive housing material | Cast stainless steel |
| Material number, drive housing | 1.4408 |
| Explosion prevention and protection | Zone 21 (ATEX)Zone 2 (ATEX)Zone 22 (ATEX)Zone 1 (ATEX) |
| Storage temperature | -10 °C ... 60 °C |
| Degree of protection | IP65IP69KIP67 |
| Piston rod material | High-alloy stainless steel |
| Cover material | Cast stainless steel |
