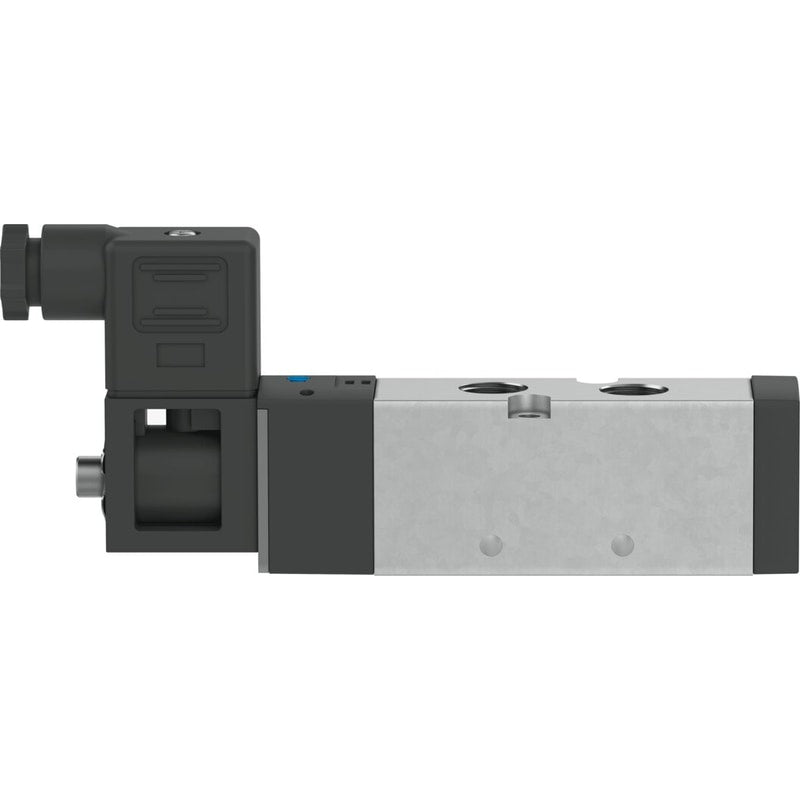

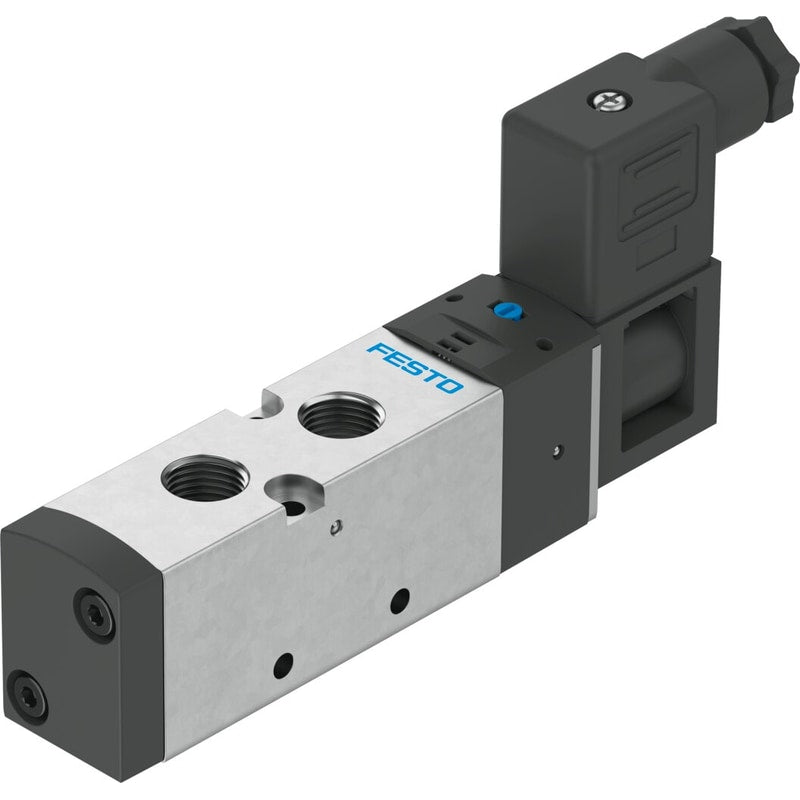

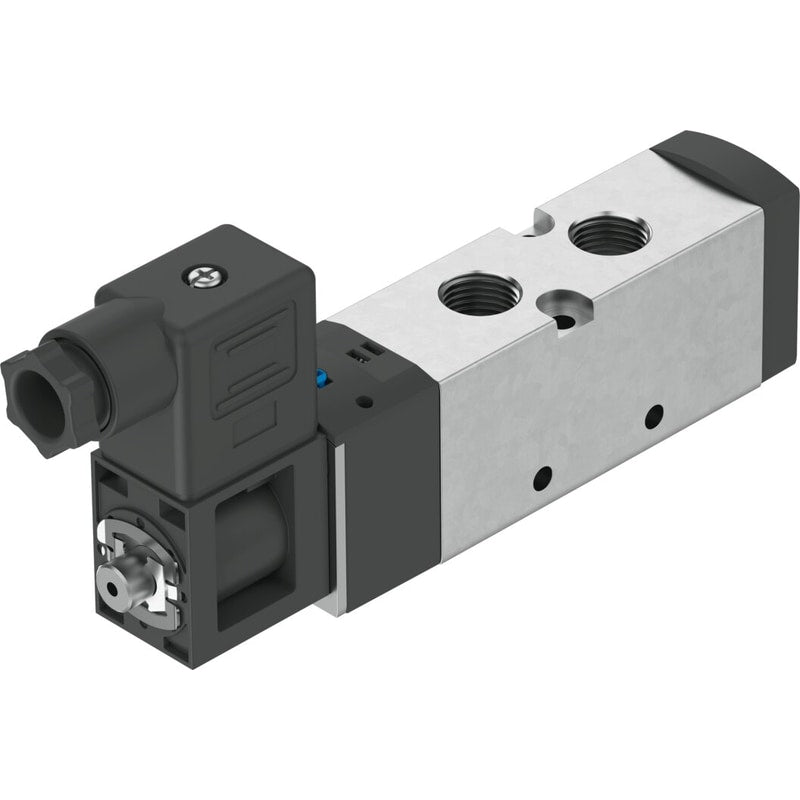

Air solenoid valve
VUVS-LK25-M52-AD-G14-1B2+GL-S
8060305
GTIN 4052568435639
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$75.96
Unit price
VUVS-LK25-M52-AD-G14-1B2+GL-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVS-LK25-M52-AD-G14-1B2+GL-S
Regular price
$75.96
Unit price
VUVS-LK25-M52-AD-G14-1B2+GL-S is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, monostable |
|---|---|
| Actuation type | Electrical |
| Valve size | 26.5mm |
| Standard nominal flow rate | 1000l/min |
| Pneumatic working port | G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | 0.15MPa |
| Operating pressure | 1.5bar |
| Structural design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP65 |
| Nominal width | 6.7mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991049 |
| Lap | Overlap |
| b-value | 0.45 |
| C value | 3.86l/sbar |
| Switching time off | 22ms |
| On switching time | 20ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2500µs |
| Max. negative test pulse on 1 signal | 1100µs |
| Coil characteristics | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -5°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C |
| Product weight | 274g |
| Electrical connection | 3-pin |
| Cable diameter | 6mm |
| Nominal conductor cross section | 0.5mm² |
| Type of mounting | Optionally: |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston slide material | Wrought aluminum alloy |
