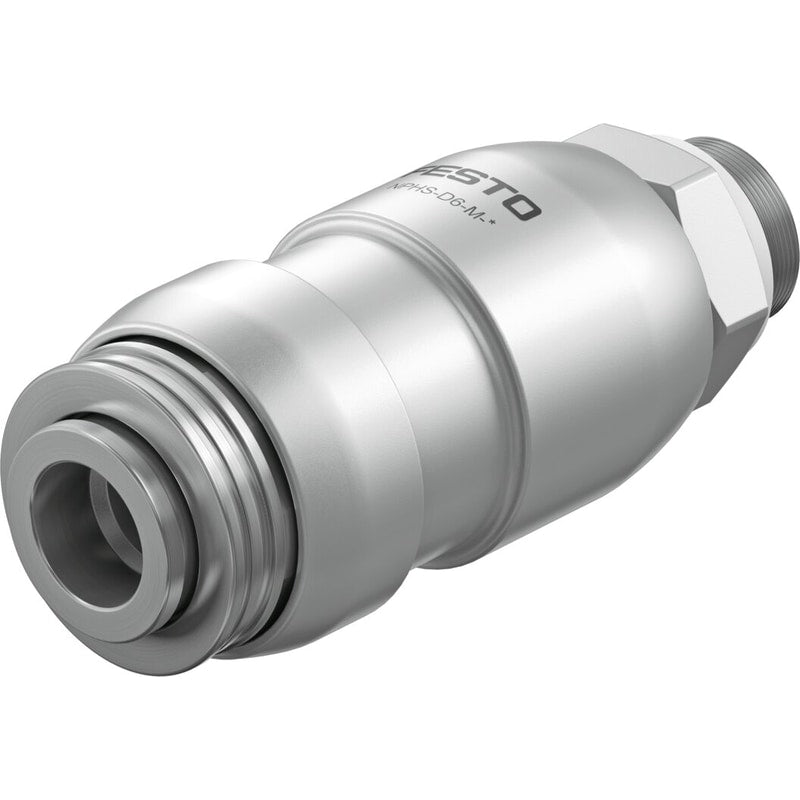

Quick coupling socket
NPHS-D6-M-G38
8059276
GTIN 4052568290214
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Normal nominal flow rate (normalized to DIN 1343)
- 2000 l/min - 2100 l/min
- Nominal tightening torque
- 15 Nm
Regular price
$68.18
Unit price
Quick coupling socket NPHS-D6-M-G38 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPHS-D6-M-G38
Regular price
$68.18
Unit price
Quick coupling socket NPHS-D6-M-G38 is backordered and will ship as soon as it is back in stock.
quick coupling socket NPHS-D6-M-G38 Nominal size=10 mm, Operating pressure complete temperature range=-0,95 - 20 bar, Standard nominal flow rate=2050 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Socket |
|---|---|
| Nominal size | 10 mm |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Standard nominal flow rate | 2, 050 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Nominal tightening torque | 15 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 179 g |
| connection 1 | Male thread G3/8 |
| Materials note | Conforms to RoHS |
