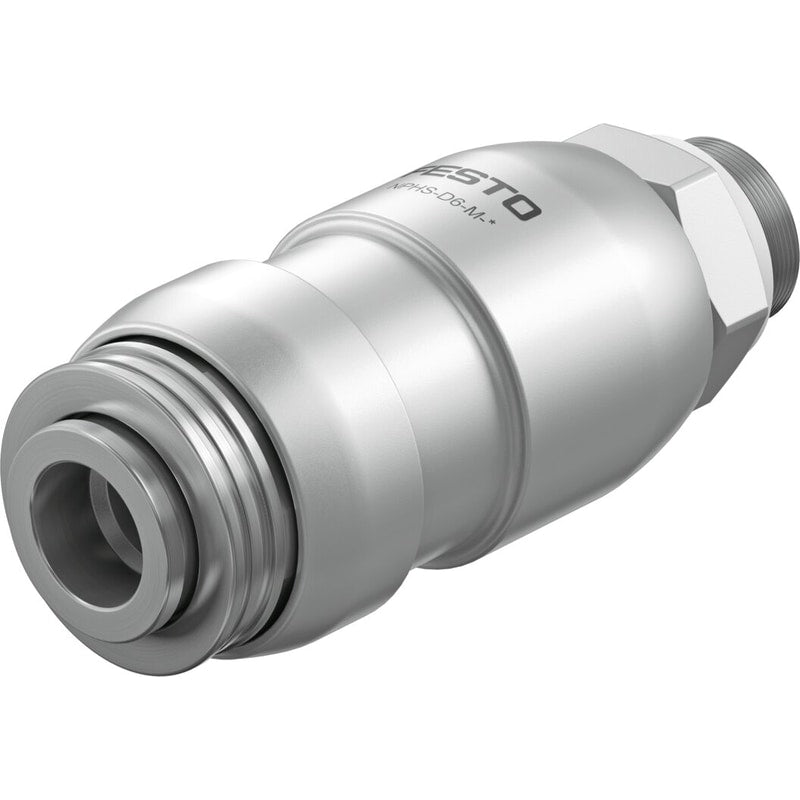

Quick coupling socket NPHS-D6-M-G14
8059275
Vendor Festo
Regular price
$67.63
Unit price
Quick coupling socket NPHS-D6-M-G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Quick coupling socket NPHS-D6-M-G14
Regular price
$67.63
Unit price
Quick coupling socket NPHS-D6-M-G14 is backordered and will ship as soon as it is back in stock.
quick coupling socket NPHS-D6-M-G14 Nominal size=8,2 mm, Operating pressure complete temperature range=-0,95 - 20 bar, Standard nominal flow rate=1833 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Socket |
|---|---|
| Nominal size | 8.2 mm |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Standard nominal flow rate | 1, 833 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Nominal tightening torque | 7 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 173 g |
| connection 1 | Male thread G1/4 |
| Materials note | Conforms to RoHS |
