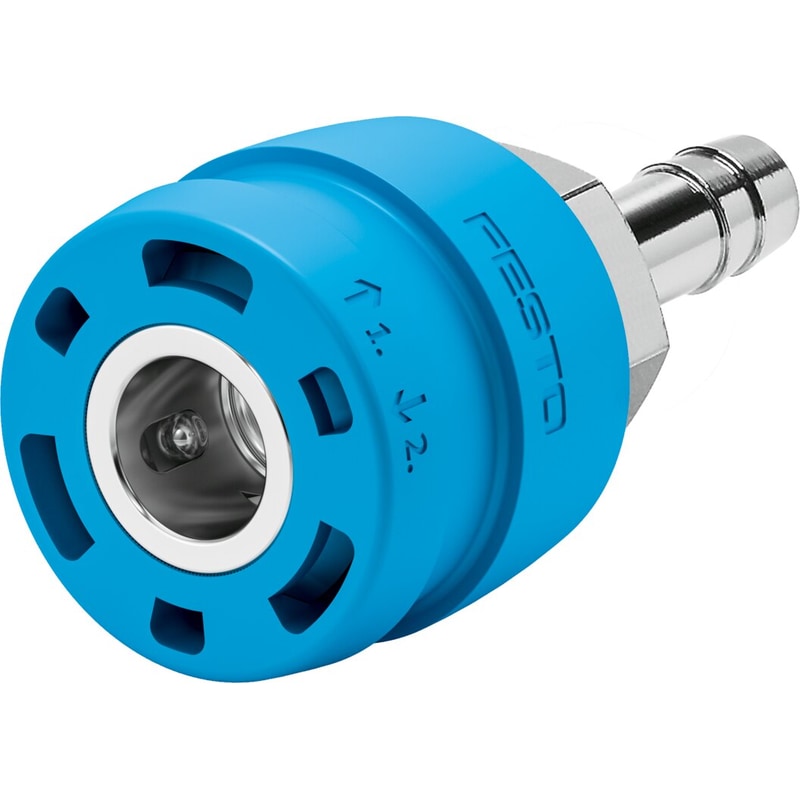

Quick coupling socket
NPHS-D6-P-BC9
8059274
GTIN 4052568290191
Vendor Festo
- Pneumatic connection 1
- Barbed hose fitting 9 mm
- Normal nominal flow rate (normalized to DIN 1343)
- 1093 l/min - 1613 l/min
Regular price
$32.24
Unit price
Quick coupling socket NPHS-D6-P-BC9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPHS-D6-P-BC9
Regular price
$32.24
Unit price
Quick coupling socket NPHS-D6-P-BC9 is backordered and will ship as soon as it is back in stock.
quick coupling socket NPHS-D6-P-BC9 Nominal size=7 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Standard nominal flow rate=1448 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | Coupling Socket |
|---|---|
| Nominal size | 7 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Standard nominal flow rate | 1, 448 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 95 g |
| connection 1 | for barbed connector internal diameter 9 mm |
| Materials note | Conforms to RoHS |
