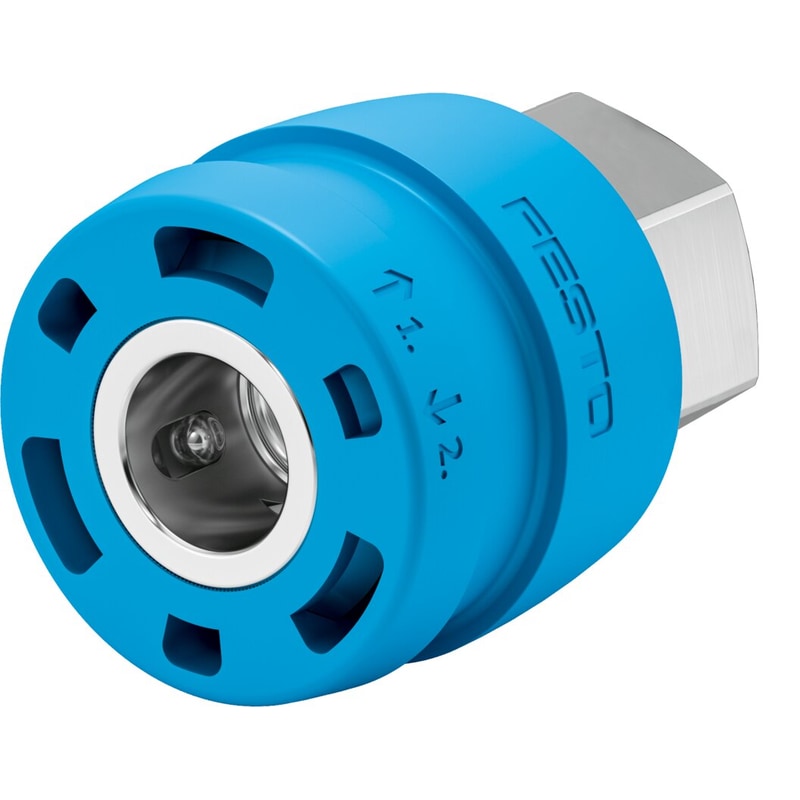

Quick coupling socket
NPHS-D6-P-G14F
8059271
GTIN 4052568290160
Vendor Festo
- Pneumatic connection 1
- Internal thread G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 1183 l/min - 2050 l/min
Regular price
$30.47
Unit price
Quick coupling socket NPHS-D6-P-G14F is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPHS-D6-P-G14F
Regular price
$30.47
Unit price
Quick coupling socket NPHS-D6-P-G14F is backordered and will ship as soon as it is back in stock.
quick coupling socket NPHS-D6-P-G14F Operating pressure complete temperature range=-0,95 - 10 bar, Standard nominal flow rate=1800 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=1 - Low corrosion stress
| Fitting Type | Coupling Socket |
|---|---|
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Standard nominal flow rate | 1, 800 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 124 g |
| connection 1 | Female thread 1/4 |
| Materials note | Conforms to RoHS |
