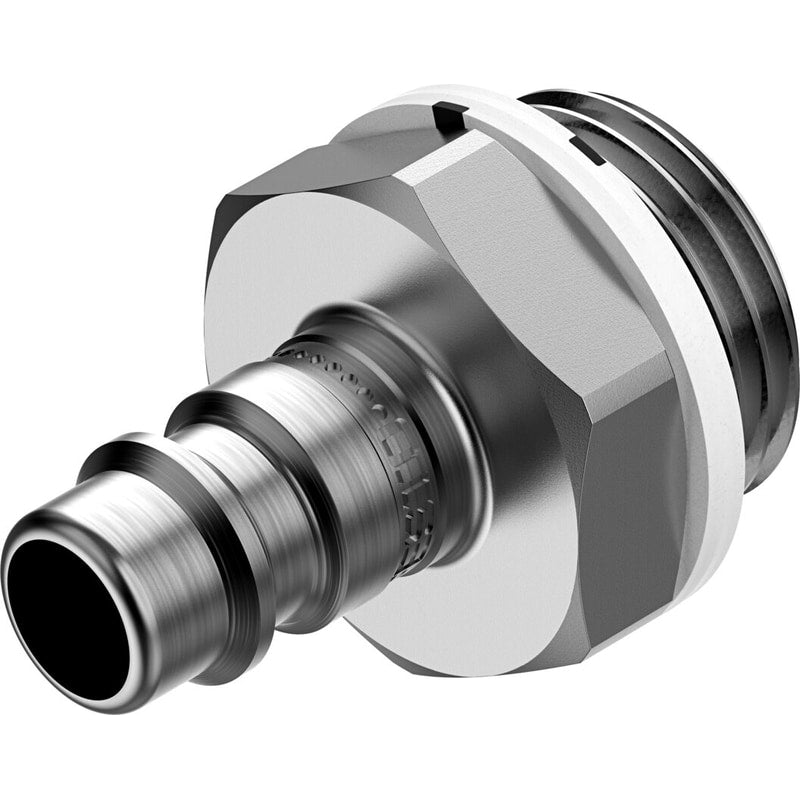

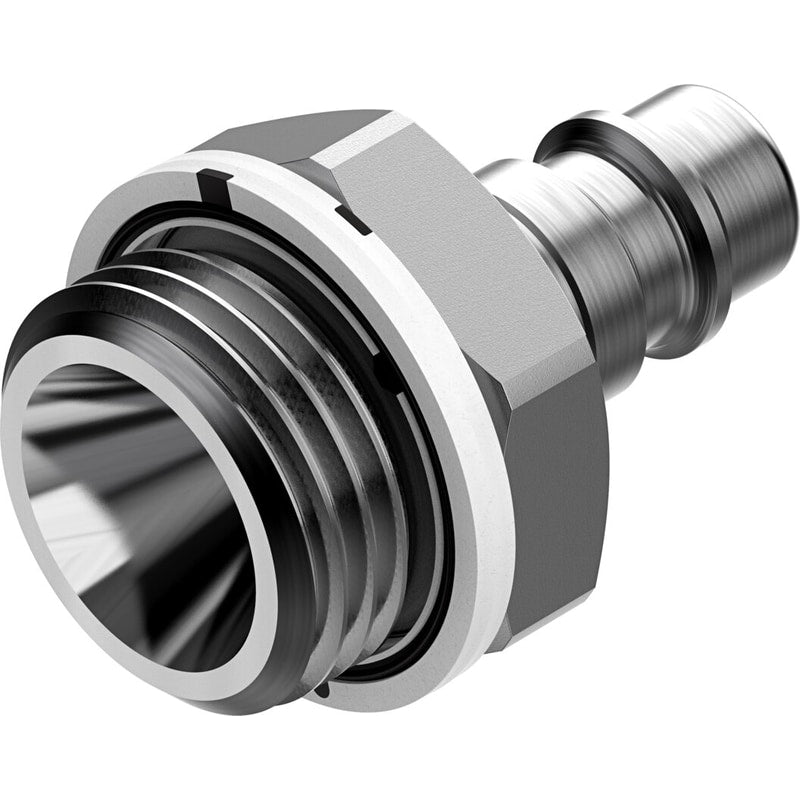

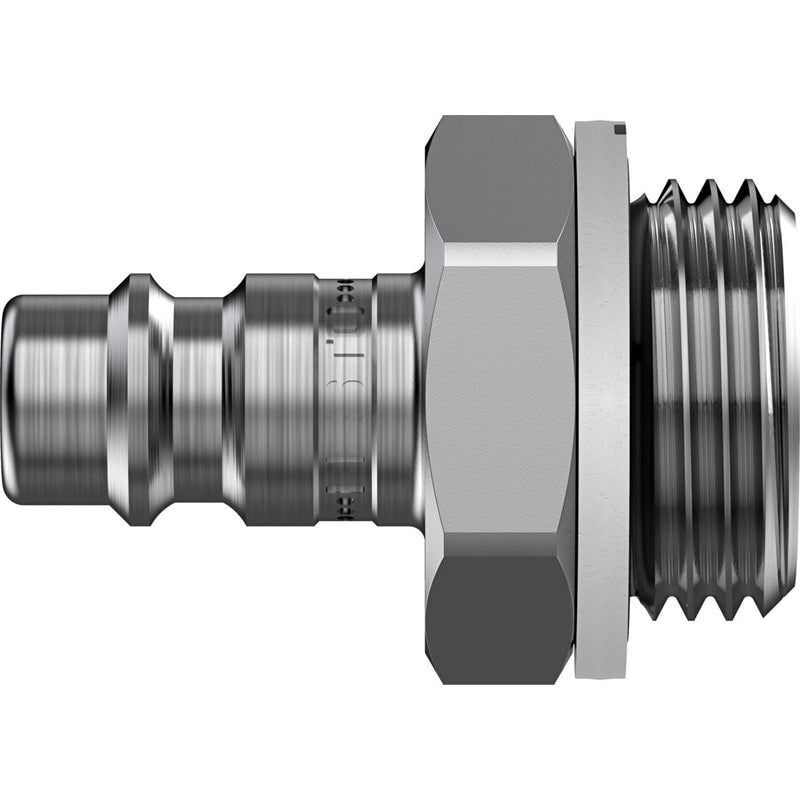

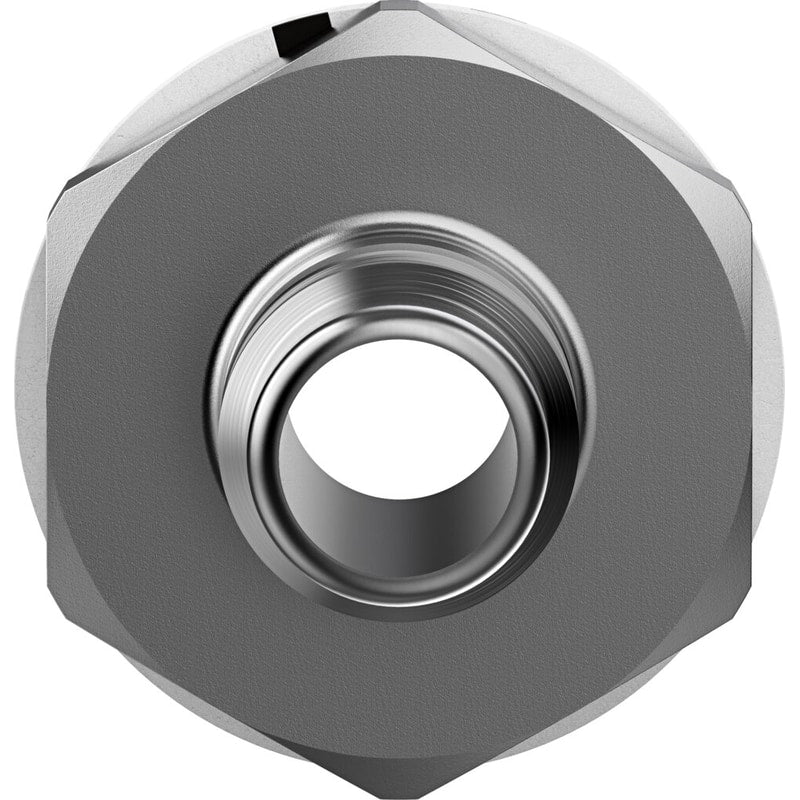

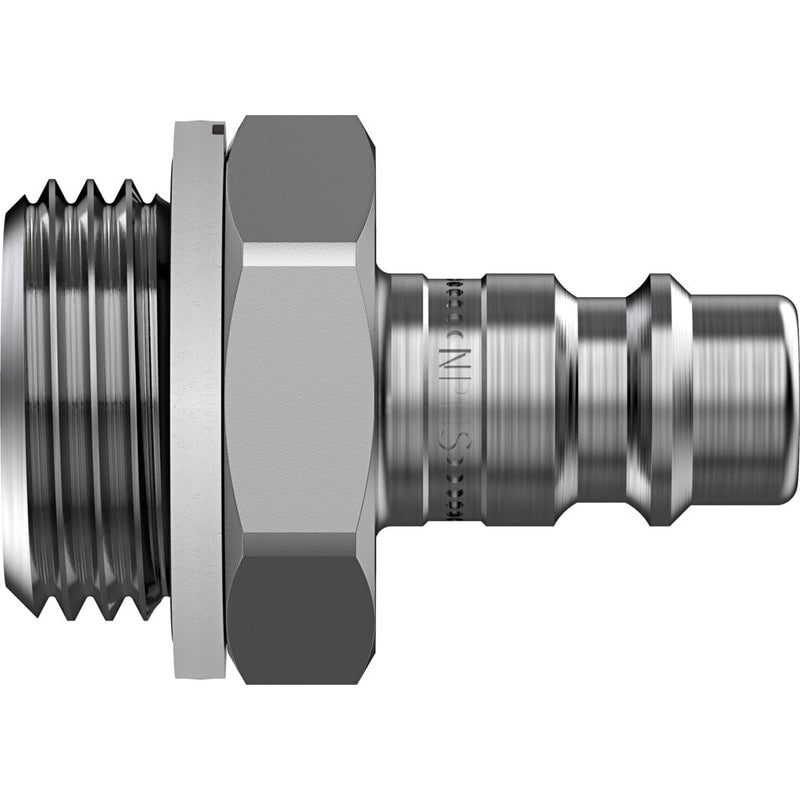

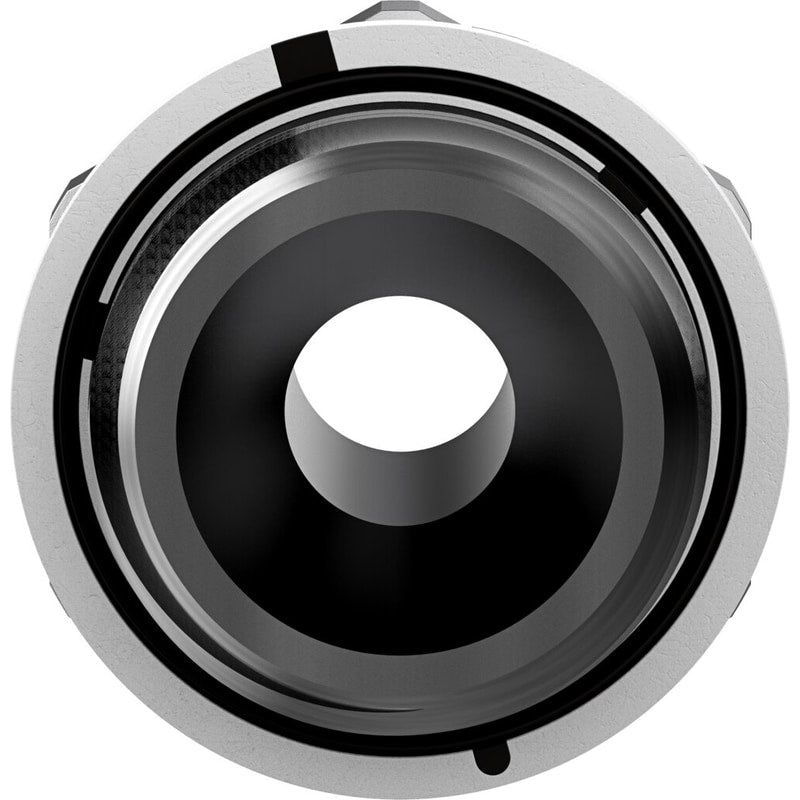

Quick coupling plug
NPHS-S6-M-G12
8059260
GTIN 4052568290078
Vendor Festo
- Pneumatic connection 1
- External thread G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 1002 l/min - 2000 l/min
- Nominal tightening torque
- 14 Nm
Regular price
$7.41
Unit price
Quick coupling plug NPHS-S6-M-G12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPHS-S6-M-G12
Regular price
$7.41
Unit price
Quick coupling plug NPHS-S6-M-G12 is backordered and will ship as soon as it is back in stock.
quick coupling plug NPHS-S6-M-G12 Nominal size=7,85 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=0 - No corrosion stress
| Fitting Type | Quick Coupling Plug |
|---|---|
| Nominal size | 7.85 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Nominal tightening torque | 14 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 50 g |
| connection 1 | Male thread G1/2 |
| Materials note | Conforms to RoHS |
