Proximity sensors

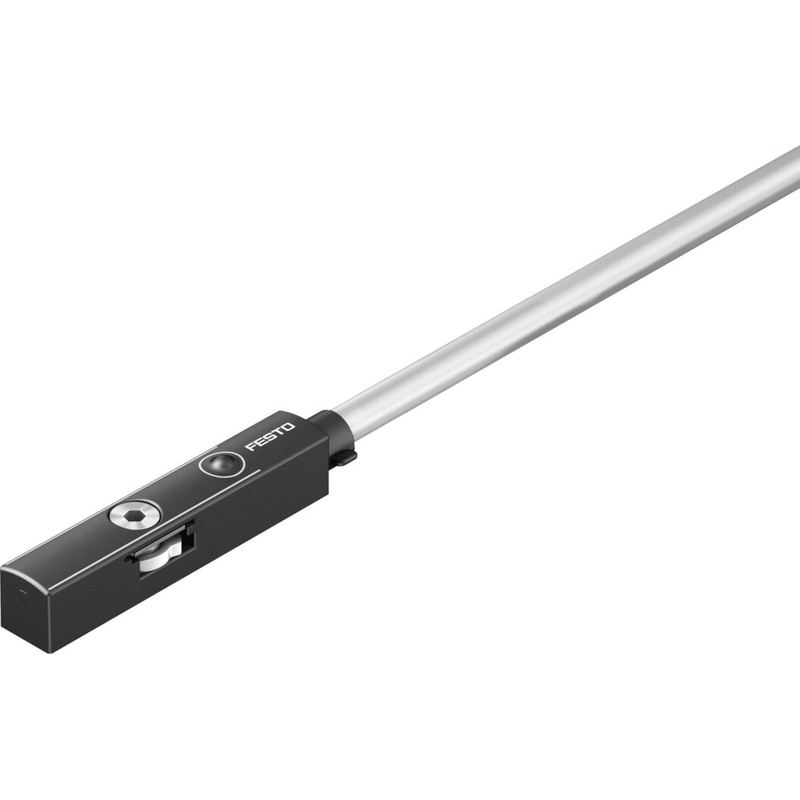

SDBT-MSX-1L-PU-E-5-N-LE
8059122
GTIN 4052568300463
Vendor Festo
- Electrical connection 1, connection technology
- Open end
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O-N/C contact, switchable
- Switching output
- PNP/NPN switchable
Regular price
$68.97
Unit price
SDBT-MSX-1L-PU-E-5-N-LE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDBT-MSX-1L-PU-E-5-N-LE
Regular price
$68.97
Unit price
SDBT-MSX-1L-PU-E-5-N-LE is backordered and will ship as soon as it is back in stock.
| Design | for T-slot |
|---|---|
| Based on norm | EN 60947-5-2 |
| Symbol | 00995964 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| KC characters | KC EMC |
| Note on materials | Free of copper and PTFE RoHS-compliant Halogen-free |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Ambient temperature | -40 °C ... 85 °C |
| Max. travel speed | 3 m/s |
| Repetition accuracy | 0.1 mm |
| Switching output | PNP/NPN switchable |
| Switching element function | N/O contact |
| Hysteresis | 0.2 mm |
| On time | ≤ 2 ms |
| Switch-off time | ≤ 2 ms |
| Max. switching frequency | 200 Hz |
| Max. output current | 100 mA |
| Max. output current in mounting kits | 100 mA |
| Max. switching capacity DC | 2.8 W |
| Max. switching capacity DC in mounting kits | 2.8 W |
| Voltage drop | < 1.5 V |
| Minimum load current | 0.15 mA |
| Residual current | < 0.2 mA |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 10 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Cable chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 5 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Wire ends | Cable end sleeve |
| Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.6 Nm |
| Mounting position | Any |
| Product weight | 56 g |
| Housing colour | Black |
| Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow |
| Status indicator | LED green |
| Setting options | Auto teach-in Capacitive pushbutton |
| Ambient temperature with flexible cable installation | -5 °C ... 85 °C |
| Degree of protection | IP68 |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 4 |
