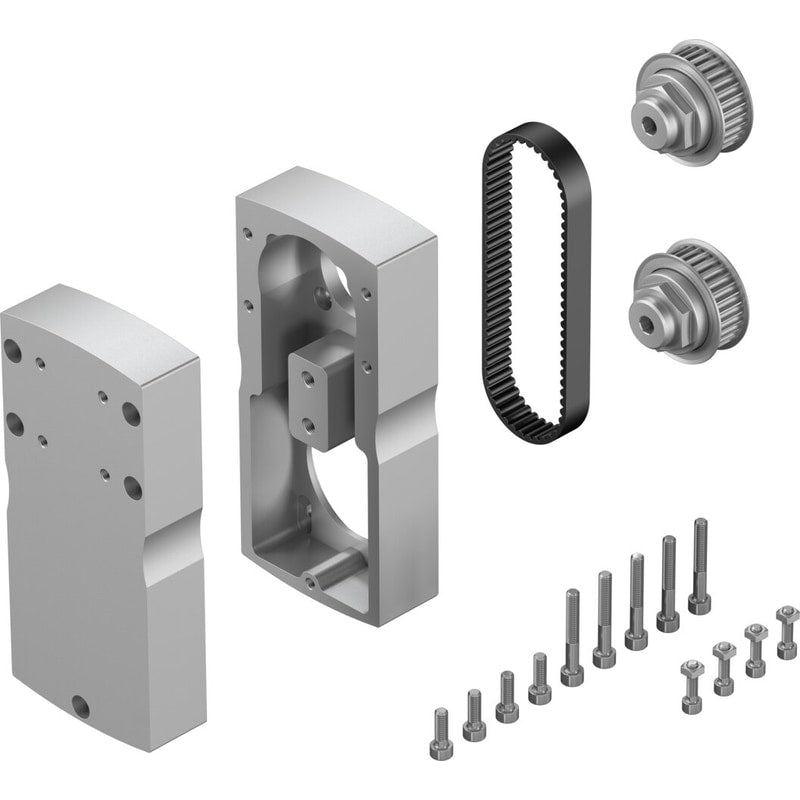

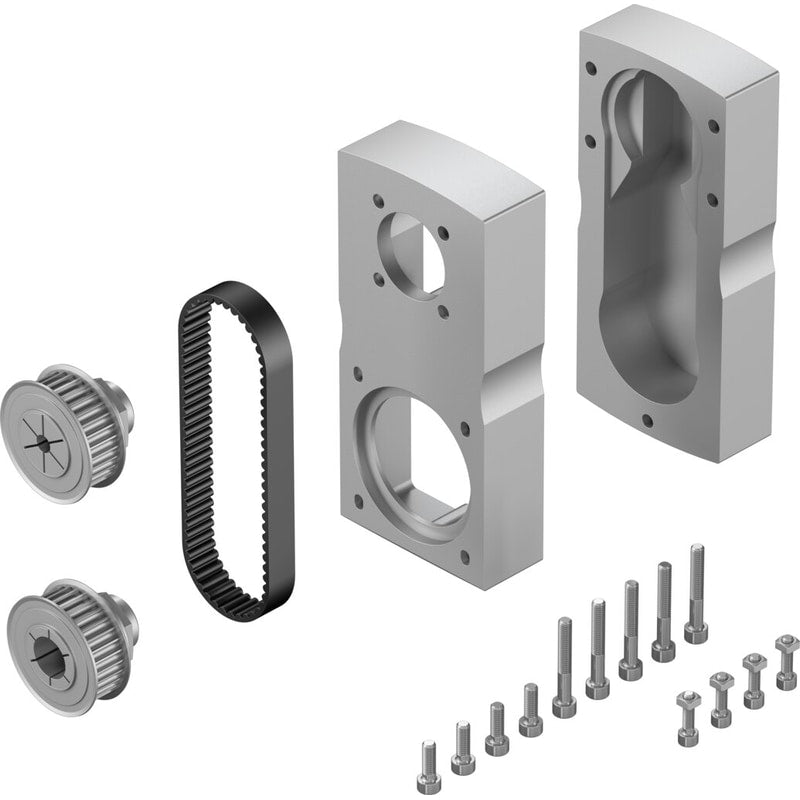

Parallel kit
EAMM-U-86-D60-60PA-102
8058983
GTIN 4052568289546
Vendor Festo
Regular price
$1,045.40
Unit price
EAMM-U-86-D60-60PA-102 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMM-U-86-D60-60PA-102
Regular price
$1,045.40
Unit price
EAMM-U-86-D60-60PA-102 is backordered and will ship as soon as it is back in stock.
| Size | 86 |
|---|---|
| Type code | EAMM-U |
| Mounting position | Any |
| Max. rotational speed | 5000 1/min |
| Storage temperature | -25 °C ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C ... 60 °C |
| Mass moment of inertia | 175 kgmm² |
| No-load driving torque | 0.25 Nm |
| Transferable torque | 9.5 Nm |
| Product weight | 2500 g |
| Interface code, actuator | D60 |
| Interface code, motor in | 60PA |
| Note on materials | RoHS-compliant |
