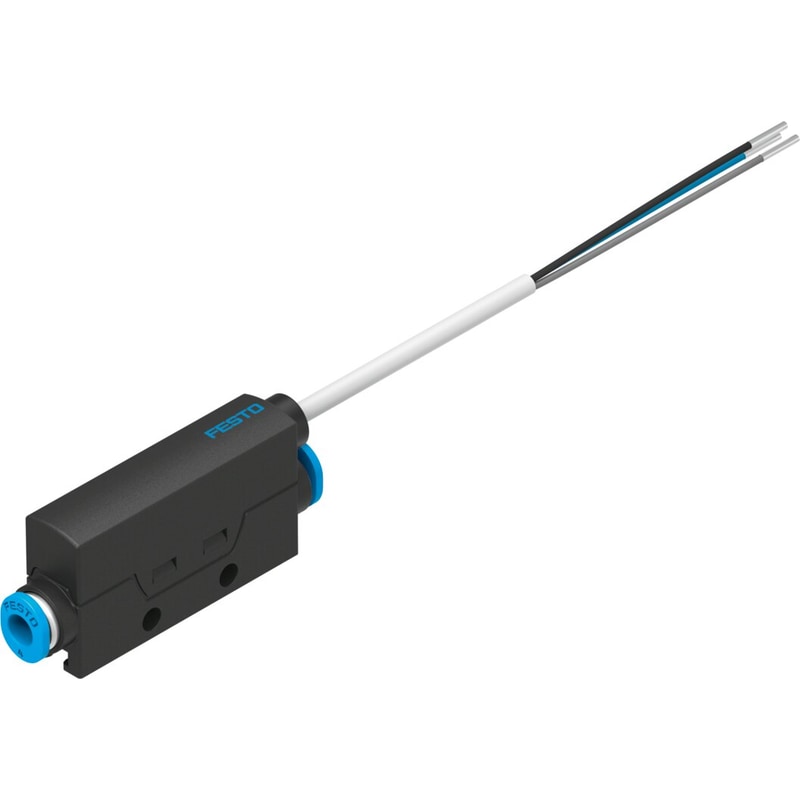

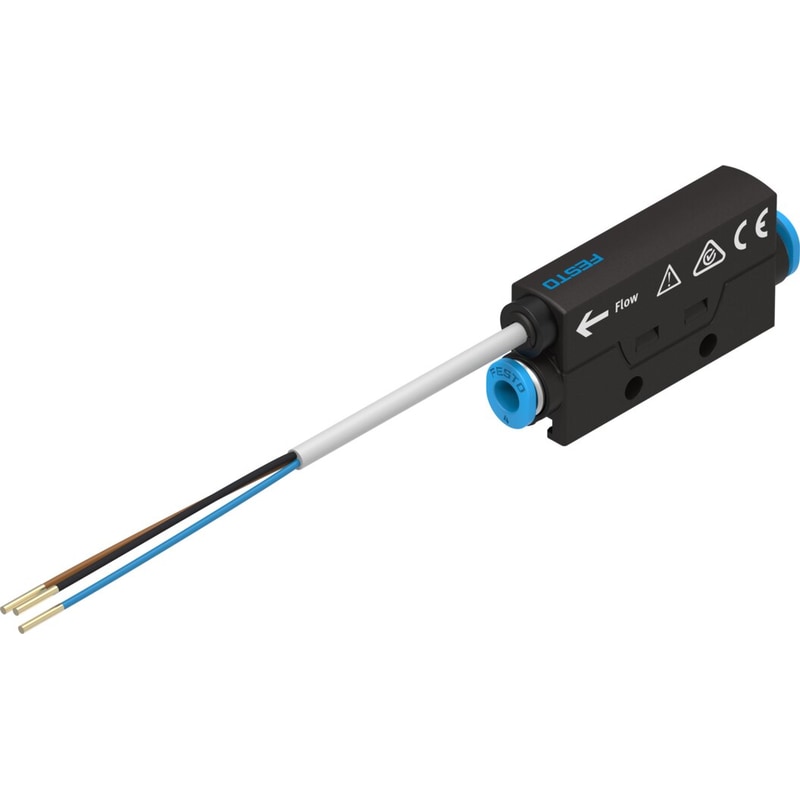

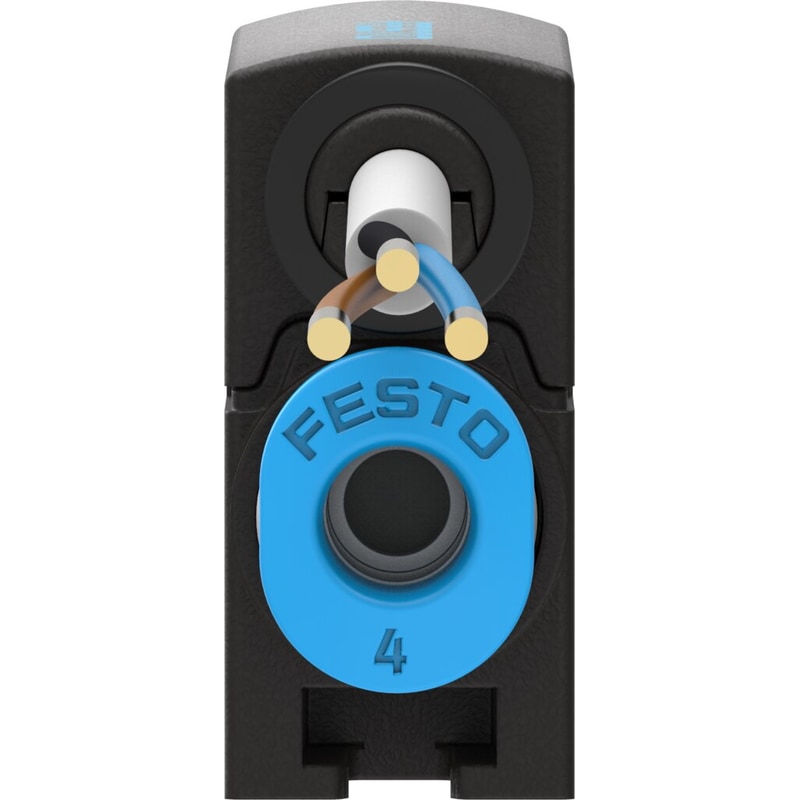

Flow transmitter
SFTE-5U-Q4-B-2.5K
8058513
GTIN 4052568435370
Vendor Festo
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4] - Nitrogen
- Operating pressure
- -0.9 bar - 10 bar
- Flow direction
- Unidirectional
Regular price
$227.37
Unit price
SFTE-5U-Q4-B-2.5K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SFTE-5U-Q4-B-2.5K
Regular price
$227.37
Unit price
SFTE-5U-Q4-B-2.5K is backordered and will ship as soon as it is back in stock.
| Measured variable | Mass flow rateVolumetric flow rate |
|---|---|
| Electrical connection 1, connection technology | Open end |
| Analog output | 1 - 5 V |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Certification | RCM compliance mark |
| Note on materials | RoHS-compliant |
| Reverse polarity protection | for all electrical connections |
| Flow direction | Unidirectional |
| Type code | SFTE |
| Measuring principle | Thermal |
| Method of measurement | Heat loss |
| Short-circuit protection | yes |
| Housing material | PA-reinforced |
| Mounting position | Any |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| KC characters | KC EMC |
| Degree of protection | IP40 |
| Overload protection | Available |
| Material of cable sheath | TPE-U(PUR) |
| Symbol | 00991853 |
| Electrical connection 1, connection type | Cable |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4]Nitrogen |
| Type of mounting | Line installationWith through-holeWith accessories |
| Pneumatic connection | For plug connection outside diameter 4 mm |
| Nominal temperature | 23 °C |
| Repetition accuracy in ± %FS | 1 %FS |
| Min. load resistance of voltage output | 20 kOhm |
| Electrical connection 1, number of pins/wires | 3 |
| Rise time | 3 ms |
| Flow rate detection range, start value | 0 l/min |
| Cable length | 2.5 m |
| Idle current | ≤ 17 mA |
| Operating pressure | -0.9 bar ... 10 bar |
| Ambient temperature | 0 °C ... 50 °C |
| DC operating voltage range | 22 V ... 26 V |
| Temperature of medium | 0 °C ... 50 °C |
| Product weight | 40 g |
| Flow rate detection range, end value | 5 l/min |
