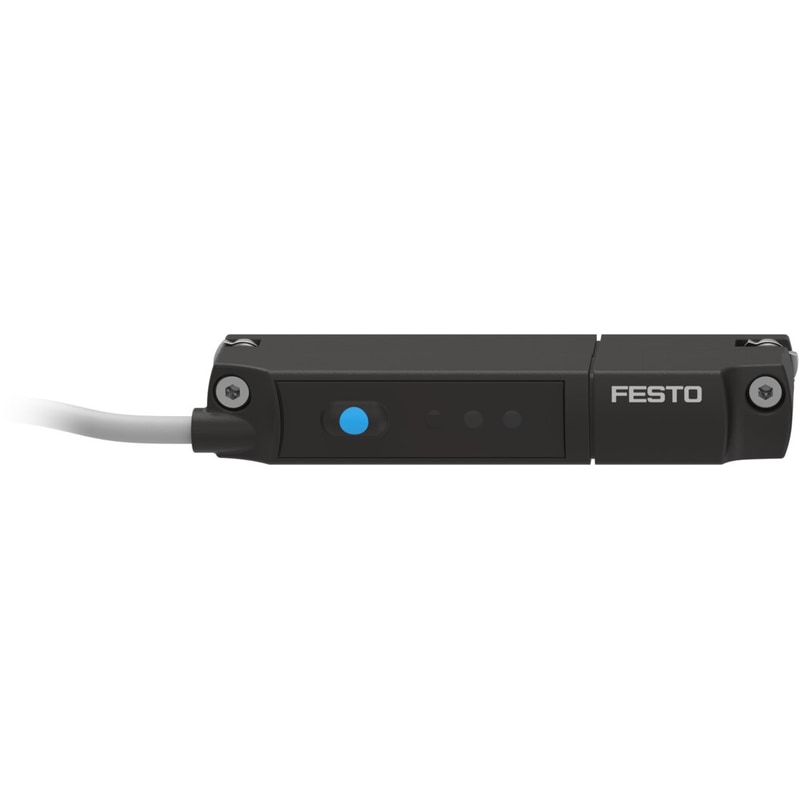

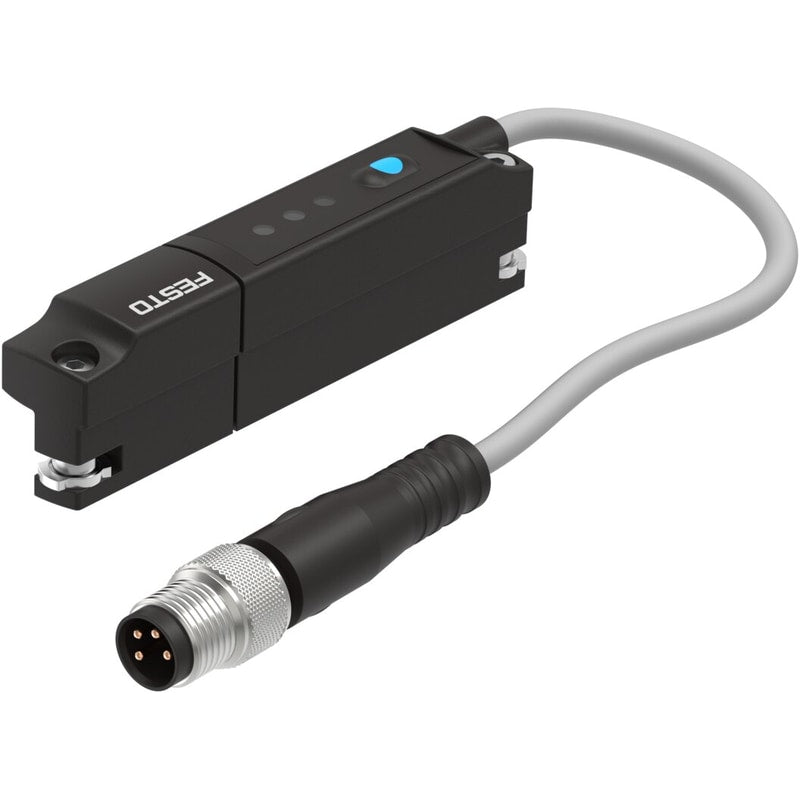

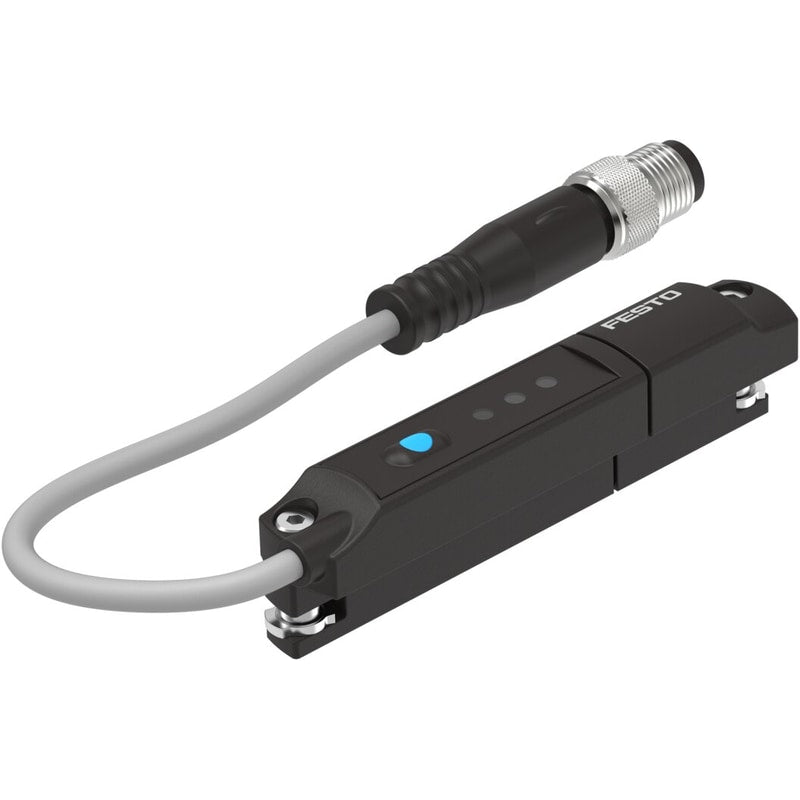

Position transmitter
SDAP-MHS-M50-1L-A-E-0.3-M8
8050120
GTIN 4052568288778
Vendor Festo
- Design
- for T-slot
- Analog output
- 4 - 20 mA
- Displacement resolution
- 0.05 mm
Regular price
$308.74
Unit price
SDAP-MHS-M50-1L-A-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDAP-MHS-M50-1L-A-E-0.3-M8
Regular price
$308.74
Unit price
SDAP-MHS-M50-1L-A-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
| Type code | SDAP |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |

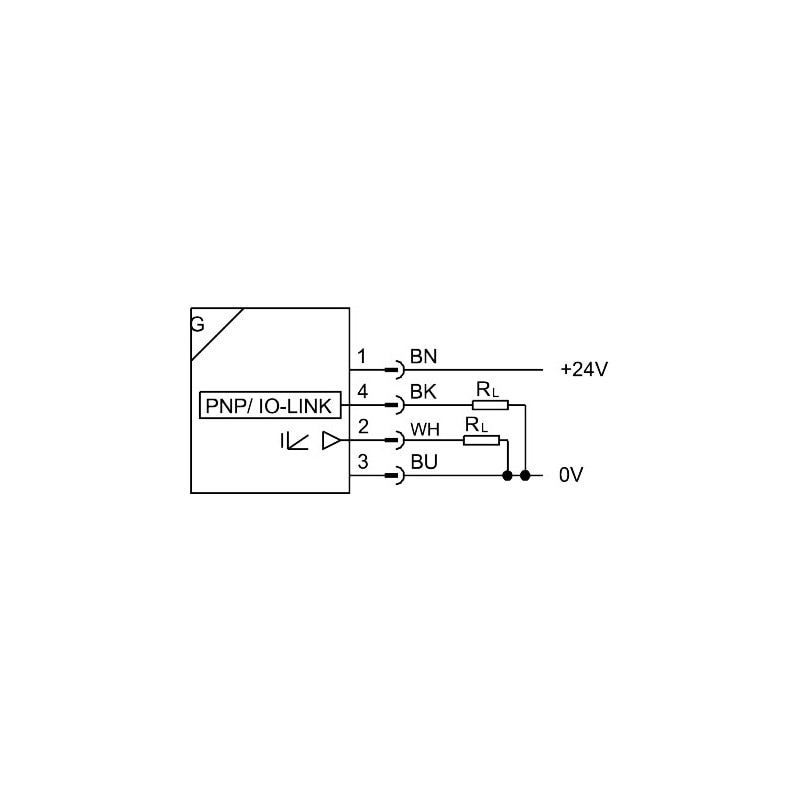

| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991171 |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995706 |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | RoHS-compliantHalogen-free |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | 0 µm ... 50000 µm |
| Ambient temperature | -25 °C ... 70 °C |
| Typical sampling interval | 1 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.05 mm |
| Analog output | 4 - 20 mA |
| Sensitivity | 0.32 mA/mm |
| Typical linearity error in ± mm | ±0.25 mm |
| Max. load resistance of current output | 500 Ohm |
| Overload protection | Available |
| DC operating voltage range | 15 V ... 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Gold-platedCopper alloy |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 28 mmFlexural strength: as per Festo standardTorsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightlyCan be inserted in slot from above |
| Mounting position | Any |
| Product weight | 19 g |
| Housing material | Brass, nickel-platedHigh-alloy stainless steelPolyesterPA-reinforced |
| Material of union nut | Brass, nickel-plated |
| Film material | Polyester |
| Ready status indication | LED green |
| Status indicator | LED red |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP68IP65 |
