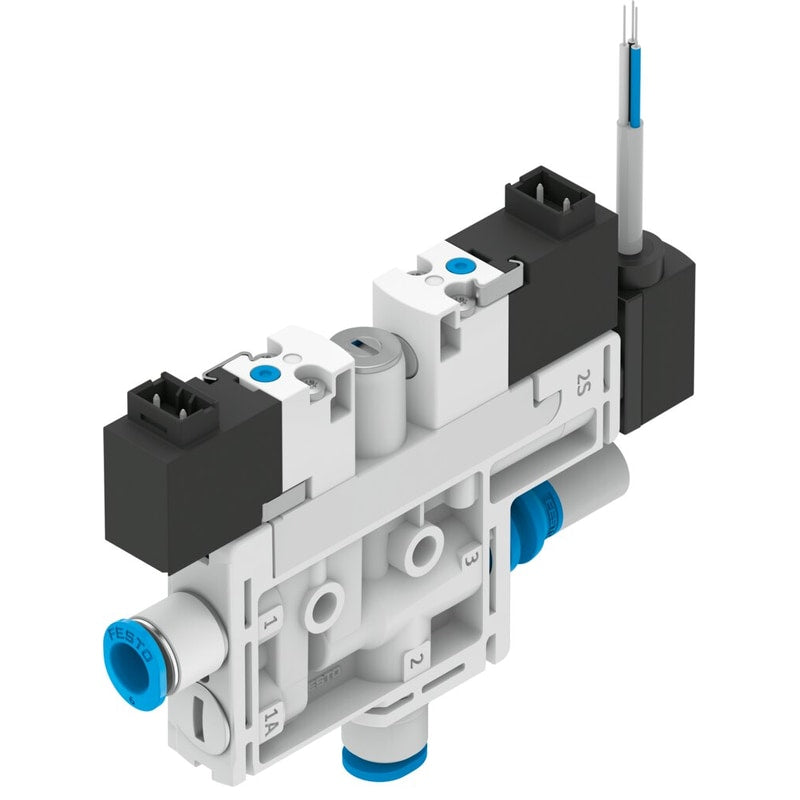

Vacuum generator
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3
8049052
GTIN 4052568295189
Vendor Festo
- Nominal width of Laval nozzle
- 0.45 mm
- Max. vacuum
- 89 %
- Max. suction rate with respect to atmosphere
- 4 l/min
Regular price
$366.37
Unit price
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3
Regular price
$366.37
Unit price
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 is backordered and will ship as soon as it is back in stock.
| Electrical connection output, function | Sensor |
|---|---|
| Electrical connection for input, connection pattern | 995626 |
| Electrical connection input, function | Ejector pulseVacuum generator |
| Electrical connection input, connection type | 2x plugs |
| Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end |
| Electrical input connection, mounting type | Snap-locking |
| Material of cable sheath | PVC |
| Cable characteristic | Suitable for energy chains |
| Electrical input connection, connection technology | Connection diagram H |
| Method of measurement | Piezoresistive pressure sensor with display |
| Color cable sheath | Gray |
| Cable diameter tolerance | ± 0.1 mm |
| Electrical connection, input, number of pins/wires | 2 |
| Electrical output connection, number of pins/wires | 3 |
| Nominal width of Laval nozzle | 0.45 mm |
| Nominal conductor cross section | 0.14 mm² |
| Cable diameter | 2.9 mm |
| Cable length | 2.5 m |
| DC sensor operating voltage range | 18 V ... 30 V |
| Width dimension | 10 mm |
| Type code | OVEL |
| Muffler construction type | Open |
| Ejector characteristics | StandardHigh vacuum |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |
| Integrated function | Electric ejector pulseFlow controlShut off valve, electricPneumatic muffler openPressure sensorCompressed air filter |
| Design | T-shape |
| Switching element function | N/O contactN/C contactSwitchable |
| Switching function | Freely programmable |

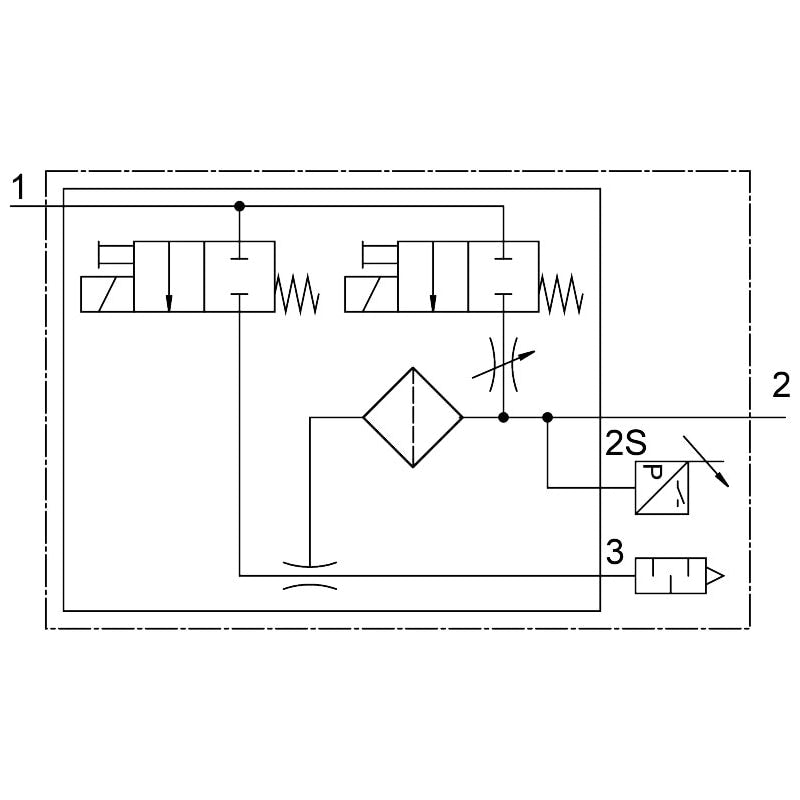

| Symbol | 995804 |
| Valve function | Closed |
| Display type | 2-digitLED display |
| Setting options | IO-Link®Teach-inVia display and pushbuttons |
| Operating pressure for max. suction rate | 3 bar |
| Operating pressure | 2 bar ... 7 bar |
| Operating pressure for max. vacuum | 4.2 bar |
| Max. vacuum | 0.89 |
| Nominal operating pressure | 4 bar |
| Max. suction rate with respect to atmosphere | 4 l/min |
| Air supply time at nominal operating pressure | 2 s |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Duty cycle | 1 |
| Switching output | PNP/NPN switchable |
| Coil characteristics | 24 V DC: 1.0 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 50 °C |
| Noise level at nominal operating pressure | 64 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 75 g |
| Pressure measuring range | -1 bar ... 1 bar |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
| Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | For pneumatic tubing outside diameter 4 mm |
| Material of connecting thread | POM |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Compressed air filter material | POM |
| Housing material | PA-reinforced |
| Material of adjusting screw | Steel |
| Muffler material | PE |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
