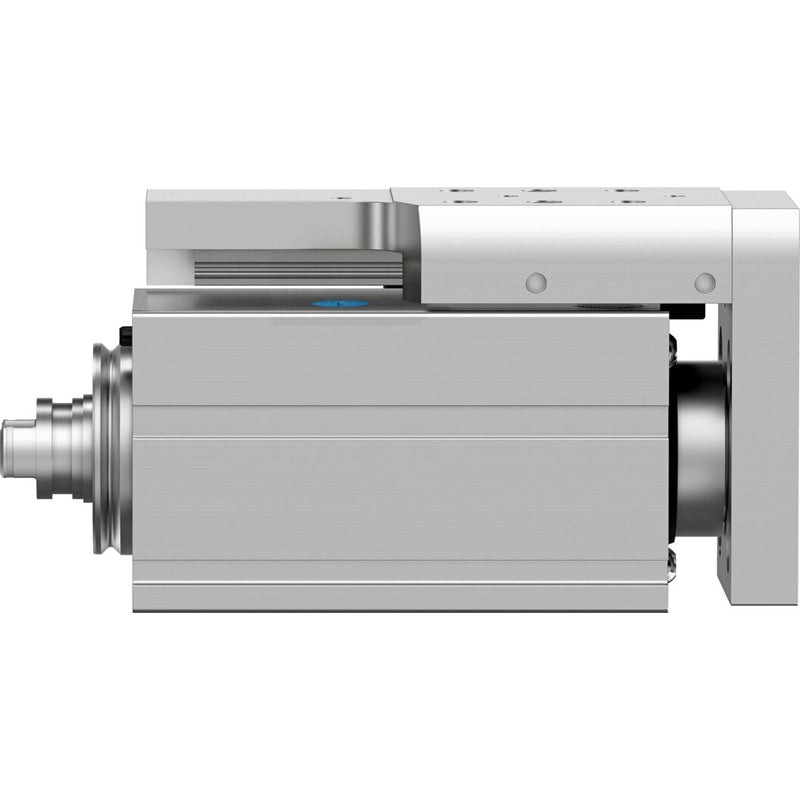

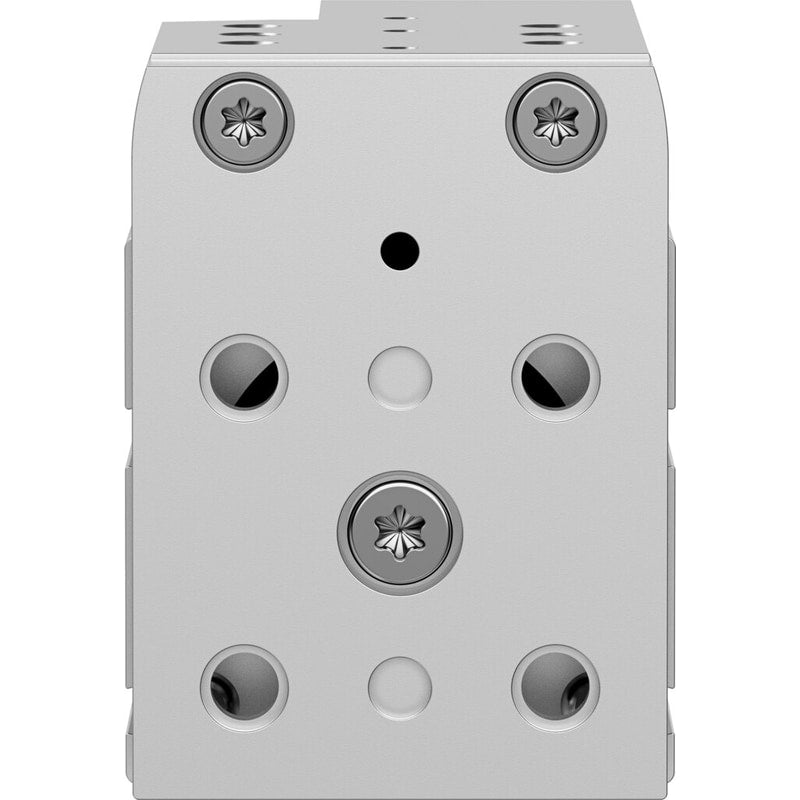

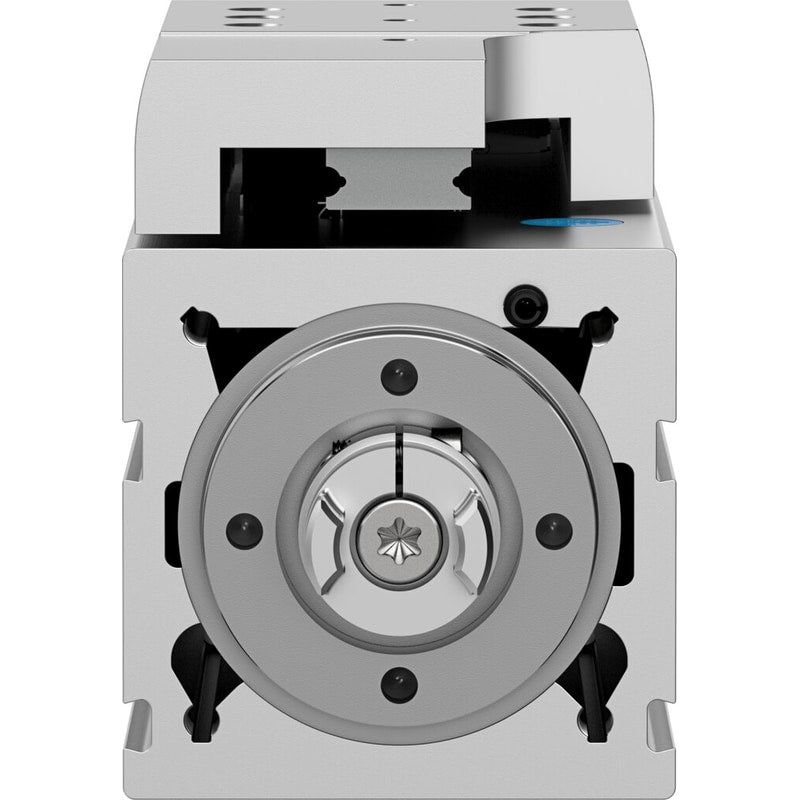

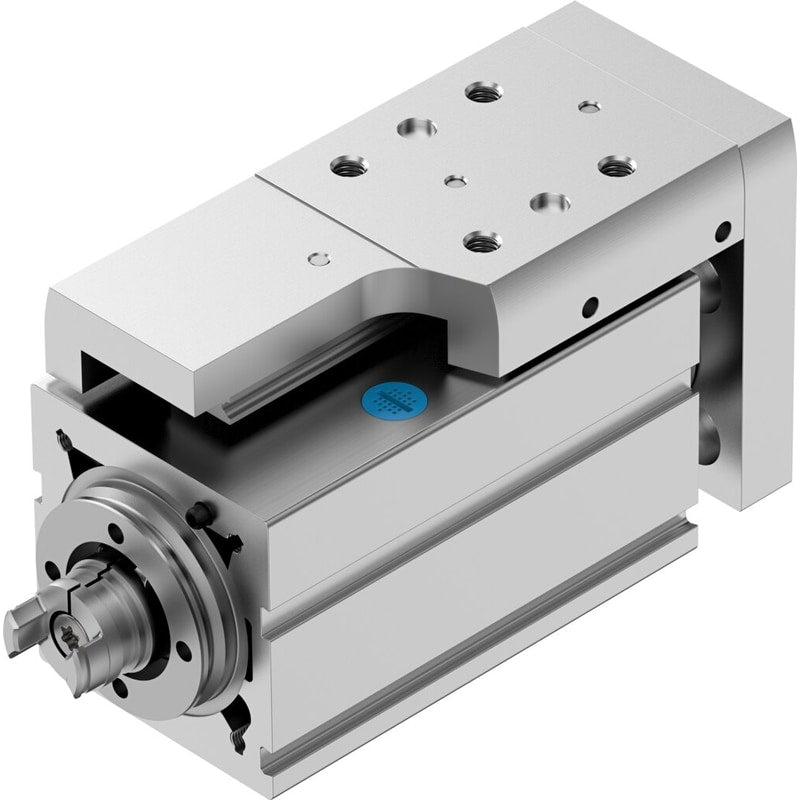

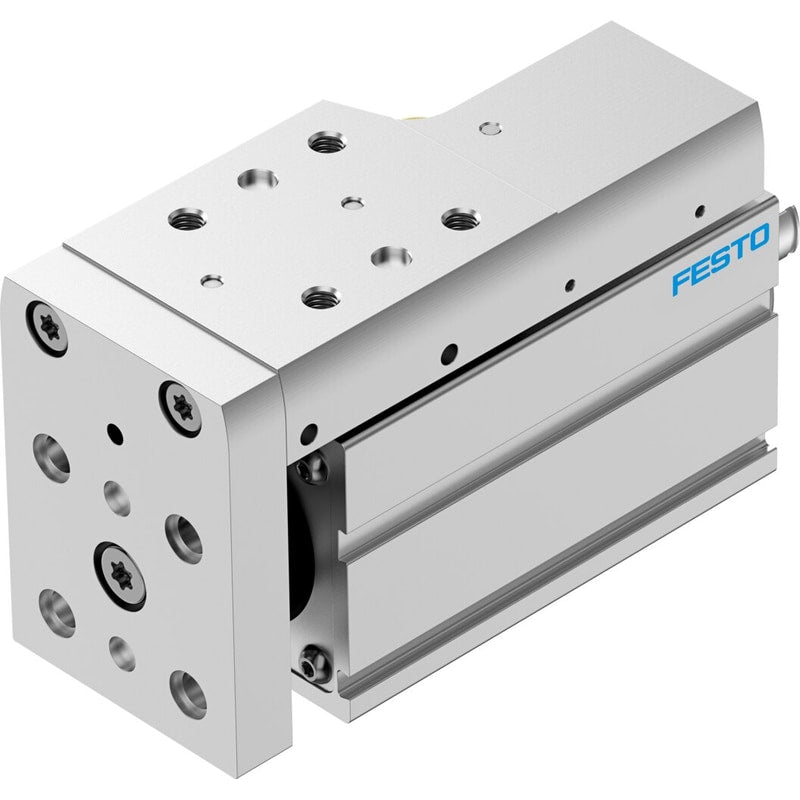

Mini slide
EGSC-BS-KF-45-25-10P
8048300
GTIN 4052568294977
Vendor Festo
- Size
- 45
- Max. feed force Fx
- 120 N
- Repetition accuracy
- ±0.015 mm
- Working stroke
- 25 mm
Regular price
$969.01
Unit price
Mini slide EGSC-BS-KF-45-25-10P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSC-BS-KF-45-25-10P
Regular price
$969.01
Unit price
Mini slide EGSC-BS-KF-45-25-10P is backordered and will ship as soon as it is back in stock.
mini slide EGSC-BS-KF-45-25-10P Part number: 8048300
| Working stroke | 25 mm |
|---|---|
| Size | 45 |
| Stroke reserve | 0 mm |
| Reversing backlash | 150 µm |
| Spindle diameter | 10 mm |
| Spindle pitch | 10 mm/U |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electric mini slideWith ball screw |
| Motor type | Stepper motorServomotor |
| Referencing | Fixed stop block positiveFixed stop block negativeReference switch |
| Spindle type | Ball screw |
| Position detection | For proximity sensor |
