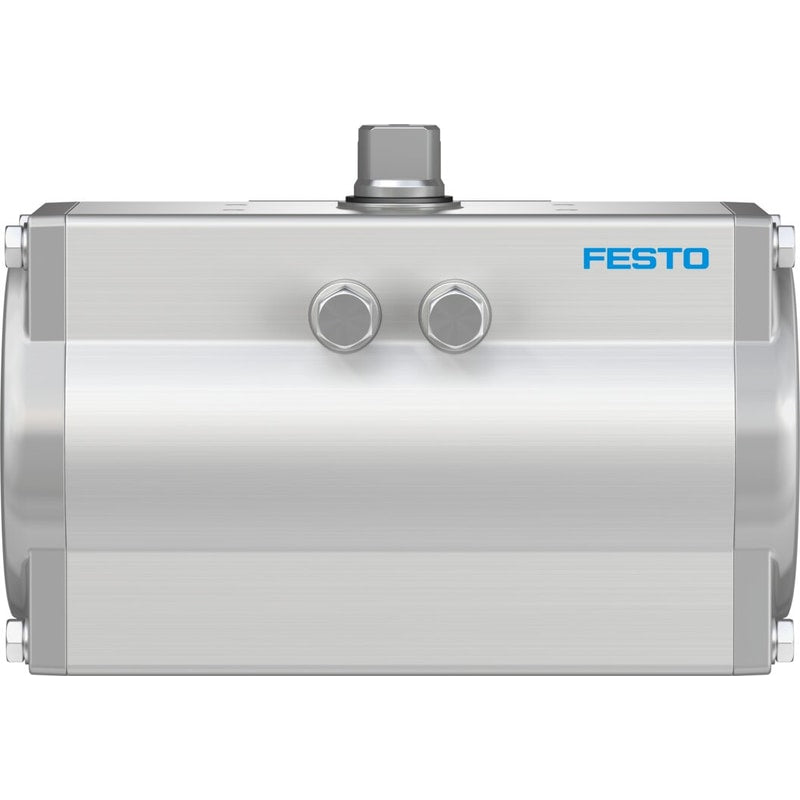

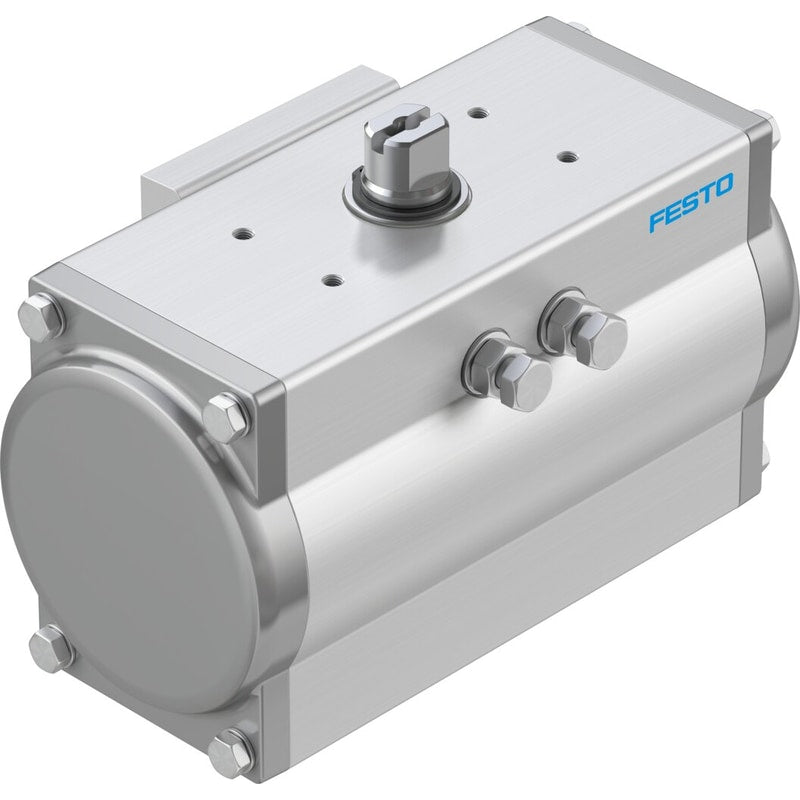

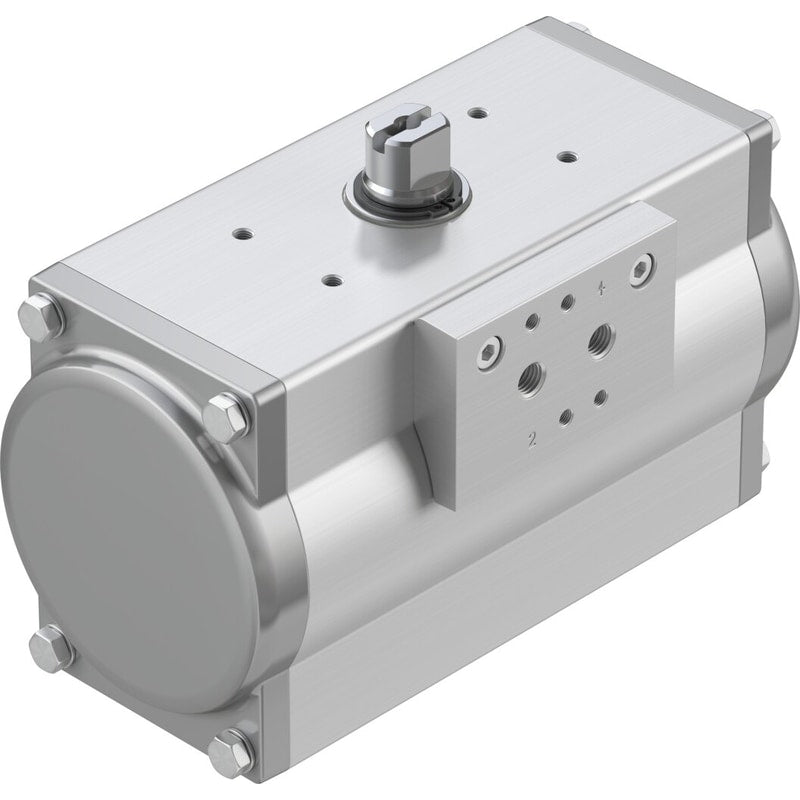

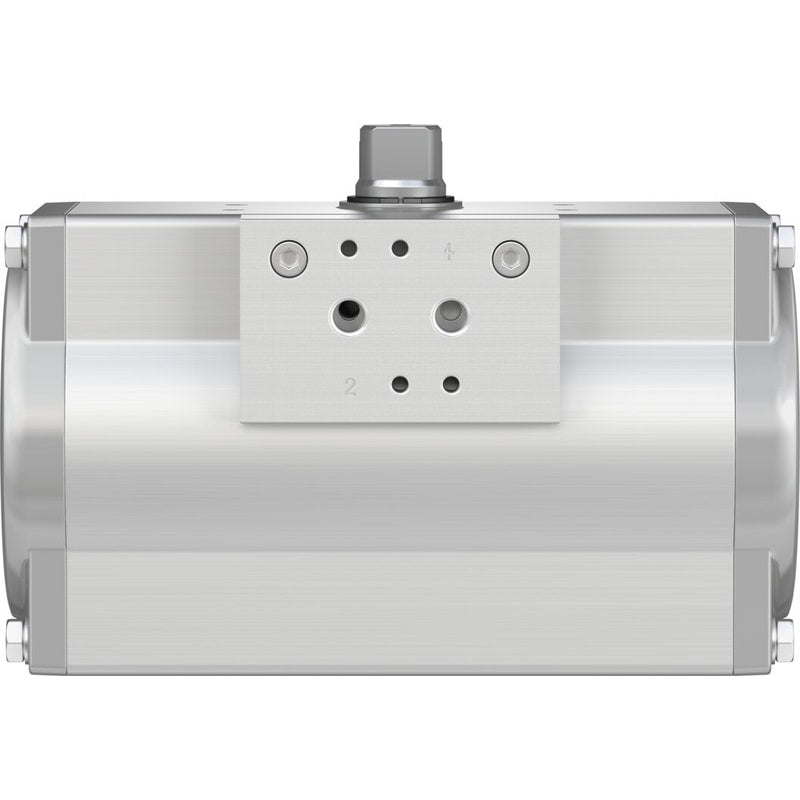

Quarter turn actuator
DFPD-80-RP-90-RD-F0507
8047616
GTIN 4052568287344
Vendor Festo
- Pneumatic connection
- G1/8
- Torque at nominal operating pressure and 0° swivel angle
- 82.4 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F0507
- Shaft connection
- T17
Regular price
$271.33
Unit price
Quarter turn actuator DFPD-80-RP-90-RD-F0507 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-80-RP-90-RD-F0507
Regular price
$271.33
Unit price
Quarter turn actuator DFPD-80-RP-90-RD-F0507 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DFPD-80-RP-90-RD-F0507 Size of actuator=80, Flange hole pattern=F0507, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjustment range at 90°=-5 - 5 deg
| Size of actuator | 80 |
|---|---|
| Flange hole pattern | F0507 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | '-5 ... 5 deg |
| Shaft connection depth | 19.3 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rack and pinion |
| Position detection | Optical |
| Closing direction | right-closing |
