Input module

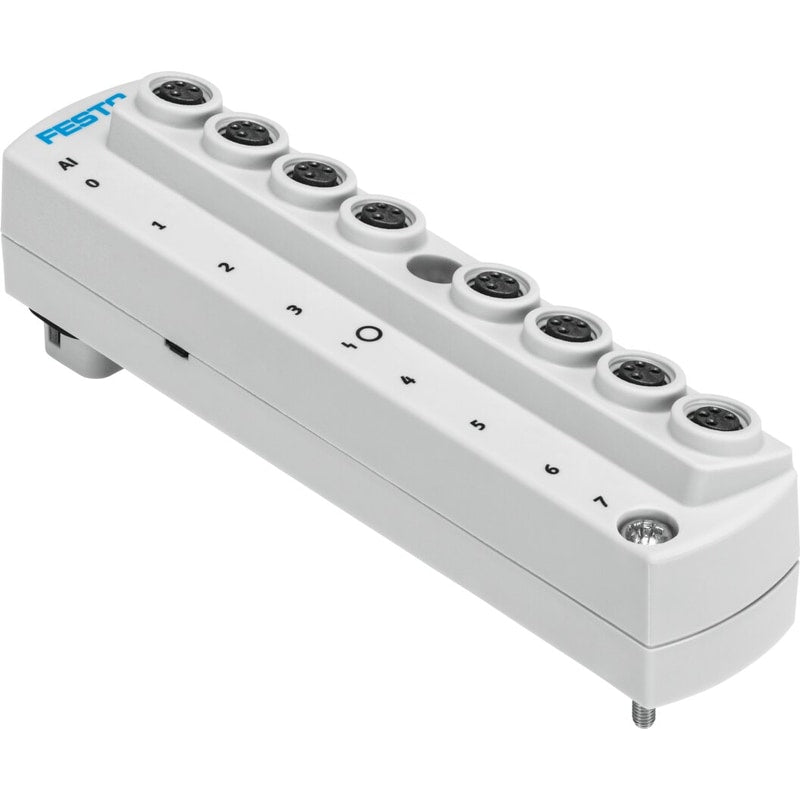

CTMM-S1-A-8E-A-M8-4
8047506
GTIN 4052568435295
Vendor Festo
Regular price
$478.68
Unit price
CTMM-S1-A-8E-A-M8-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTMM-S1-A-8E-A-M8-4
Regular price
$478.68
Unit price
CTMM-S1-A-8E-A-M8-4 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 27 mm x 123 mm x 40 mm |
|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Electrical connection input, function | Analog input |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 12 mA |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Electrical input connection, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Signal range | 4 - 20 mA |
| Electrical connection input, connection type | 8x socket |
| Diagnostics via LED | Faults per module |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Electrical connection, input, number of pins/wires | 4 |
| Width dimension | 28 mm |
| Type code | CTMM |
| No. of outputs | 0 |
| No. of inputs | 8 |
| Measured variable | Current |
| Fuse protection (short circuit) | Internal electronic fuse |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | no |
| Electrical isolation between channels | no |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Degree of protection | IP67IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 75 g |
| Max. cable length | 30 m |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
