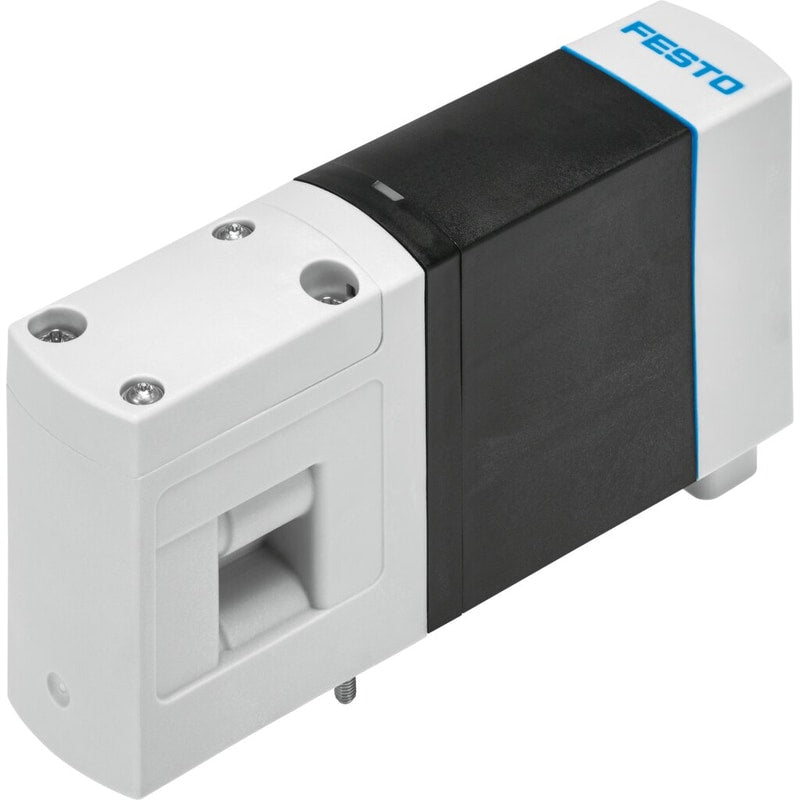

Pneumatic valve
VEVM-S1-27-B-C-F-1T1L
8047503
GTIN 4052568435264
Vendor Festo
- Structural design
- Piston seat
- Valve function
- Can be assigned using Motion App
- Nominal operating voltage DC
- 24 V
- Degree of protection
- IP65
Regular price
$718.00
Unit price
VEVM-S1-27-B-C-F-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VEVM-S1-27-B-C-F-1T1L
Regular price
$718.00
Unit price
VEVM-S1-27-B-C-F-1T1L is backordered and will ship as soon as it is back in stock.
| Pilot exhaust air port 84 | M7 |
|---|---|
| Actuation type | Electrical |
| Type of control | Pilot-controlled |
| Pneumatic connection 4 | G1/8 |
| Exhaust air function | Without flow control option |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | To EU directive for EMC |
| Pneumatic connection 2 | G1/8 |
| Flow direction | Non-reversible |
| Pilot air supply port | External |
| Pneumatic connection 1 | G3/8 |
| Material fire test | UL94 HB |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Suitability for vacuum | yes |
| Duty cycle | 1 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Relative air humidity | 0 - 90 % |
| Type code | VEVM |
| Mounting position | Any |
| Pilot air port 14 | M5 |
| Valve function | Can be assigned using Motion App |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Sealing principle | Soft |
| Pneumatic connection 3 | G3/8 |
| Housing material | PA |
| Seals material | NBRTPE-U(PU) |
| For use in the food industry | See supplementary material information |
| Vibration resistance | Transport application test with severity level 2 in accordance with FN942017-4 and EN 60068-2-6 |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Status indicator | LED red = malfunctionLED blue = normal state |
| Design | Piston seat |
| Information on operating pressure | Vacuum operation at connection 3 only0 - 8 bar with external pilot air |

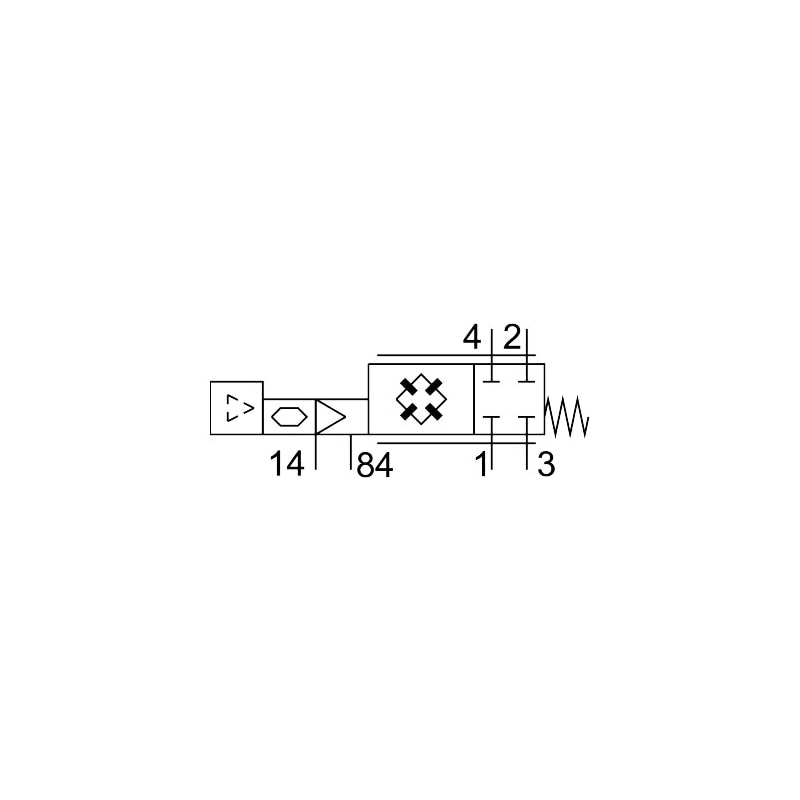

| Symbol | 995604 |
| Permissible voltage fluctuations | +/- 25 % |
| Width dimension | 28 mm |
| Valve size | 27 mm |
| Switching time off | 8.5 ms |
| Pilot pressure | 3 bar ... 8 bar |
| Ambient temperature | 5 °C ... 50 °C |
| Nominal operating voltage DC | 24 V |
| Electrical power consumption | 1.5 W |
| On switching time | 8.5 ms |
| Storage temperature | -20 °C ... 40 °C |
| Operating pressure | 3 bar ... 8 bar |
| Product weight | 200 g |
| Nominal width | 4.2 mm |
| Temperature of medium | 5 °C ... 50 °C |
