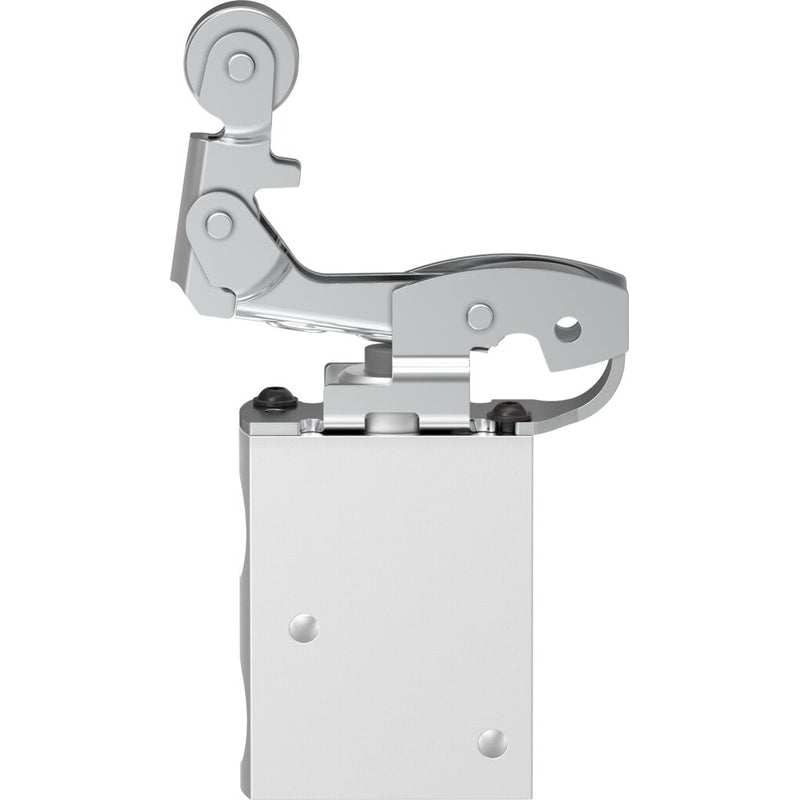

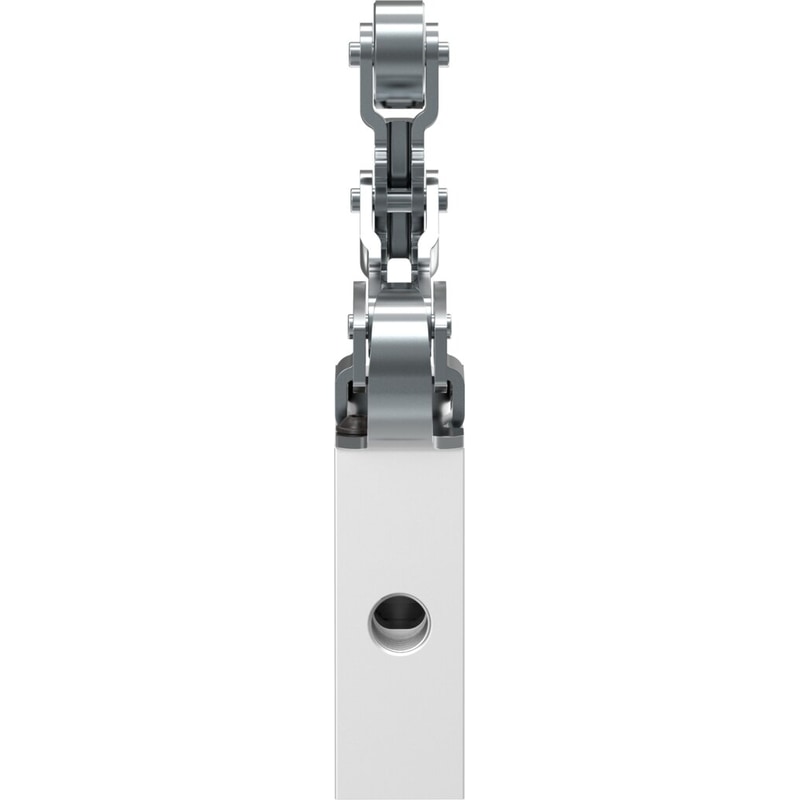

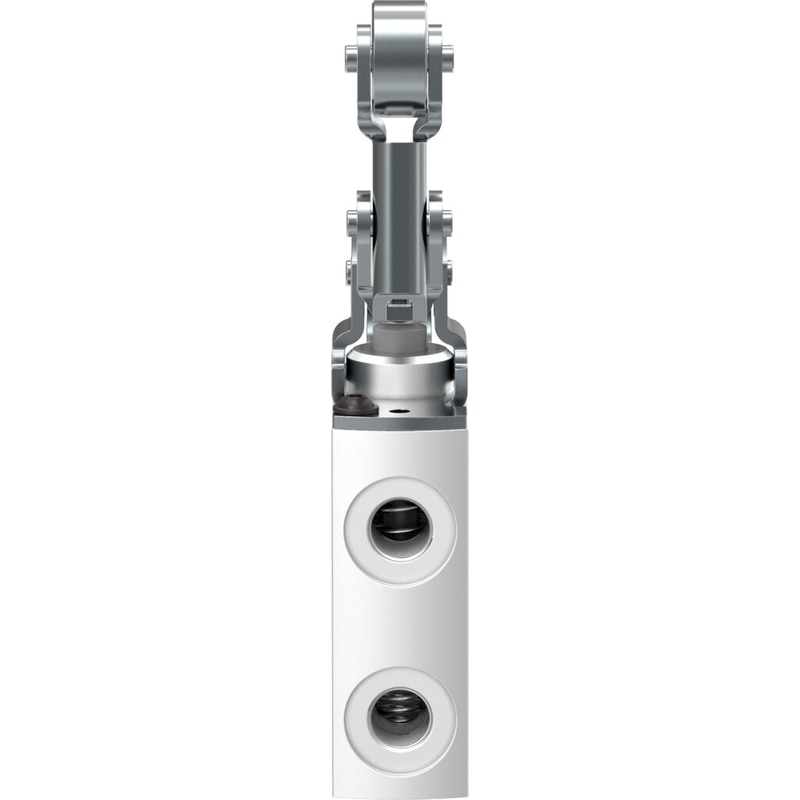

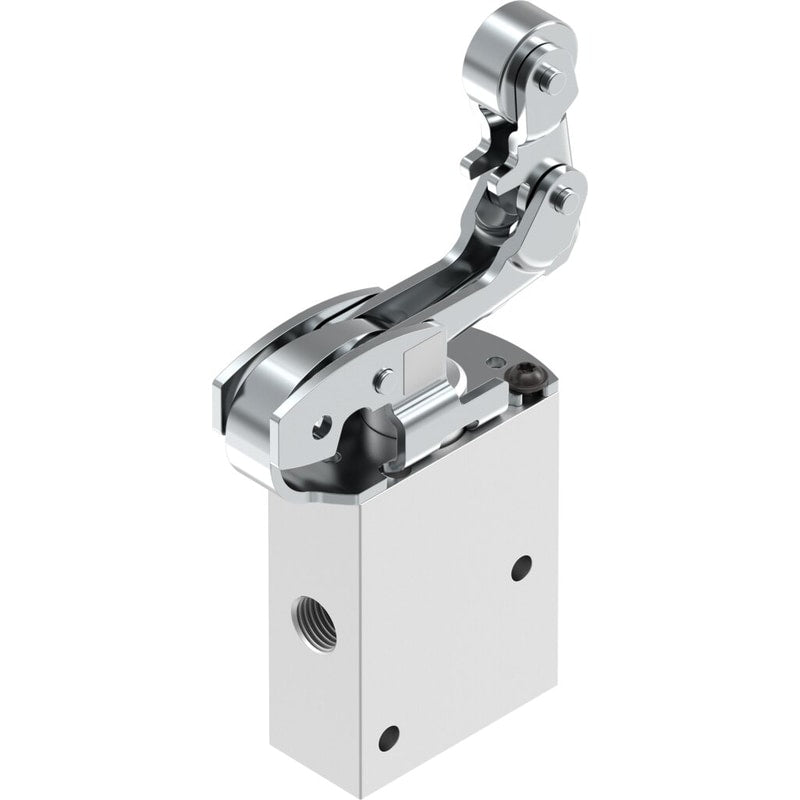

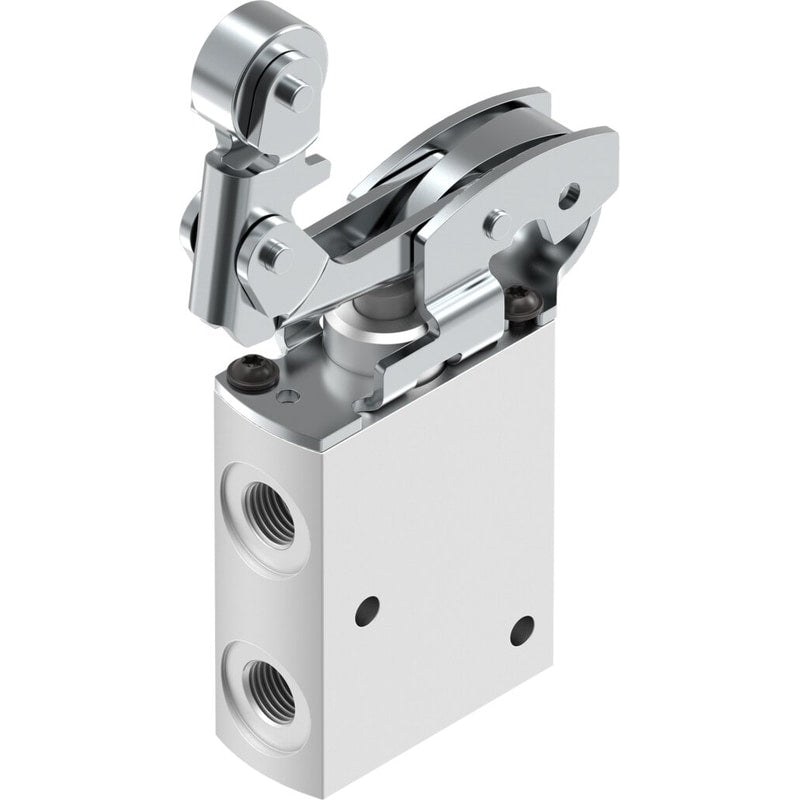

Roller lever valve
VMEF-KT-M32-M-N18
8047105
GTIN 4052568435226
Vendor Festo
- Valve function
- 3/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 750 l/min
- Pneumatic connection 1
- 1/8 NPT
- Operating pressure
- -0.95 bar - 10 bar
- Width
- 20 mm
Regular price
$151.58
Unit price
VMEF-KT-M32-M-N18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMEF-KT-M32-M-N18
Regular price
$151.58
Unit price
VMEF-KT-M32-M-N18 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, monostable |
|---|---|
| Lap | Zero overlap |
| Actuation type | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate | 750 l/min |
| Pneumatic working port | 1/8 NPT |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Plate seatOne-way roller lever |
| Reset method | Mechanical spring |
| Max. stroke limit (hard) | 11 mm |
| Nominal width | 5.6 mm |
| Type code | VMEF |
| Application note | Risk of pinching |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 991348 |
| Max. actuating speed with lateral actuation | 0.7 m/s |
| Max. switching frequency | 3 Hz |
| Cam angle | 30 deg |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Note on ambient temperature | Influence of heat on wear |
| Actuating force | 32.7 N |
| Product weight | 227 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT |
| Pneumatic connection 3 | 1/8 NPT |
| Note on materials | RoHS-compliant |
| Actuator attachments material | Steel, galvanized |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
