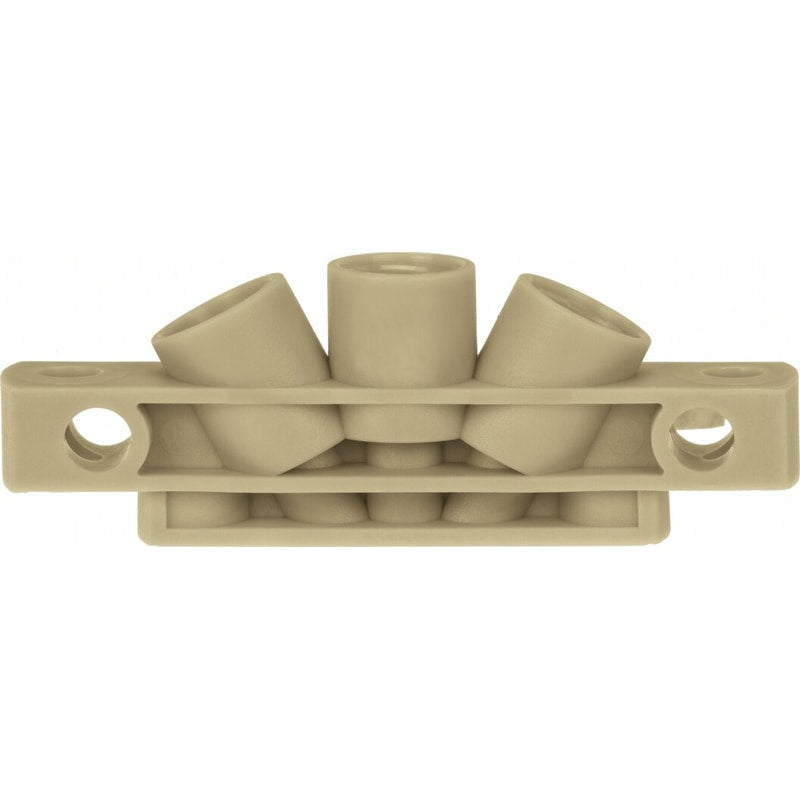

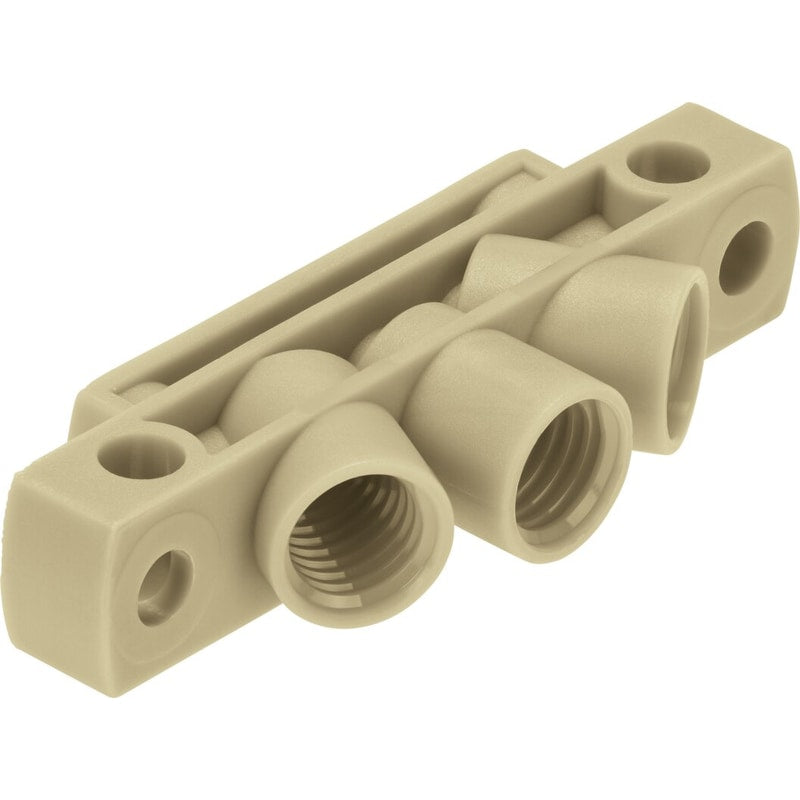

Sub-base
VABS-K1-7B-12-M5-P
8047064
GTIN 4052568459499
Vendor Festo
Regular price
$22.97
Unit price
VABS-K1-7B-12-M5-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-K1-7B-12-M5-P
Regular price
$22.97
Unit price
VABS-K1-7B-12-M5-P is backordered and will ship as soon as it is back in stock.
| Threaded sleeve material | Brass |
|---|---|
| For use in the food industry | See supplementary material information |
| Fluid connector | Internal thread M5 |
| Nominal width | 1.2 mm |
| Valve size | 7 mm |
| Type code | VABS |
| Mounting position | Any |
| Design | Connection direction downwards |
| Flow direction | Reversible |
| Operating medium | Liquid mediaGaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Max. tightening torque for valve mounting | 0.15 Nm |
| Product weight | 3 g |
| Sub-base mounting type | With through-hole |
| Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant |
| Material of sub-base | PEEK |
