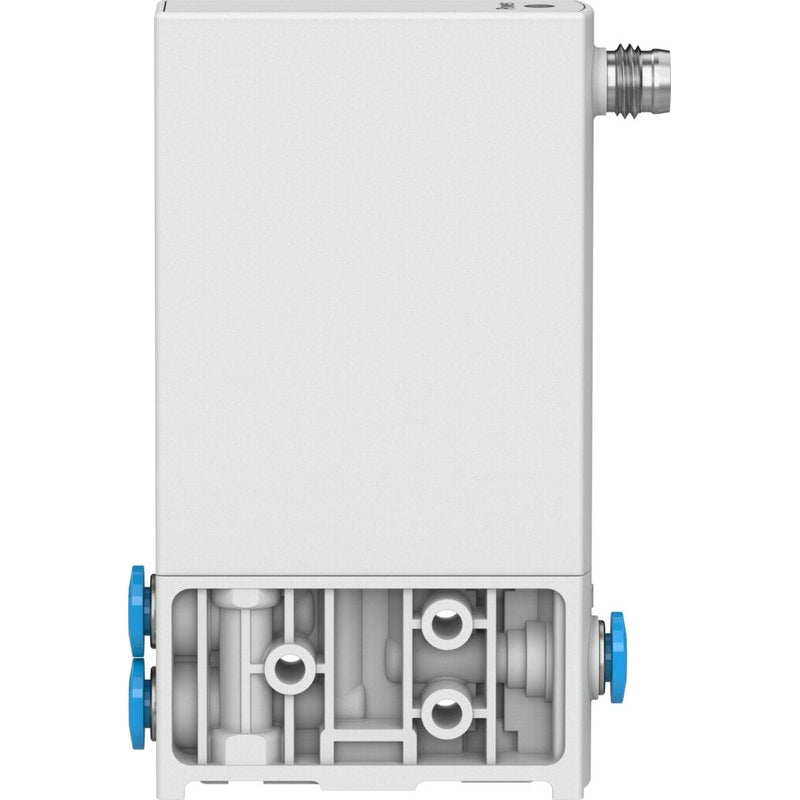

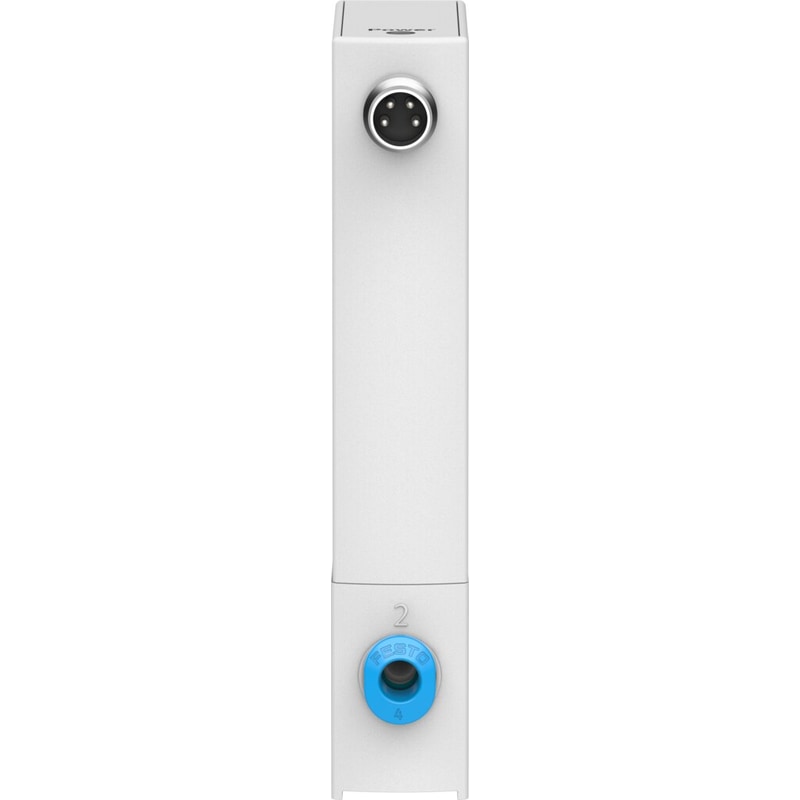

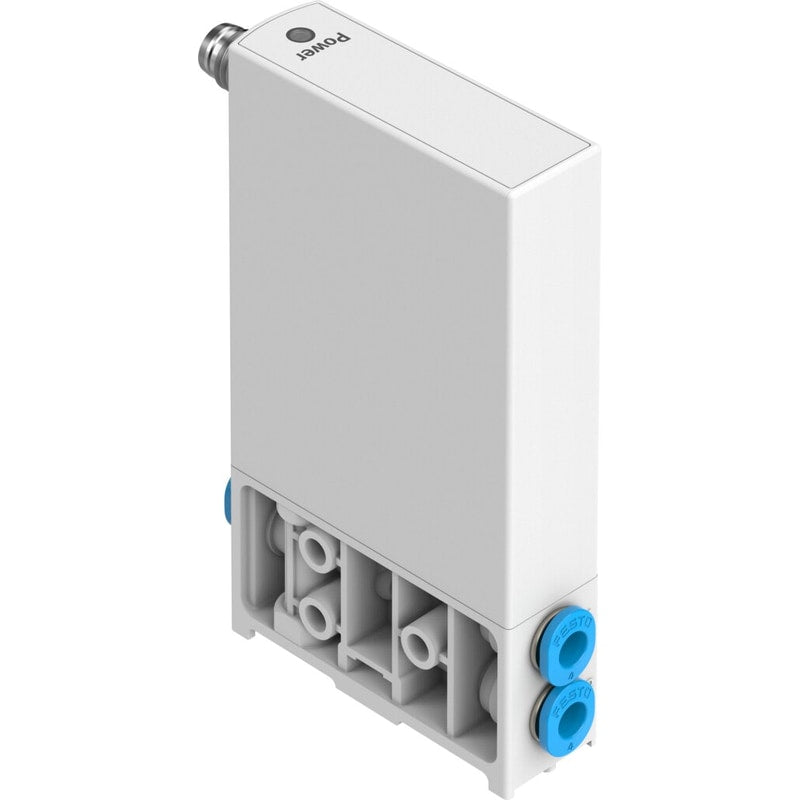

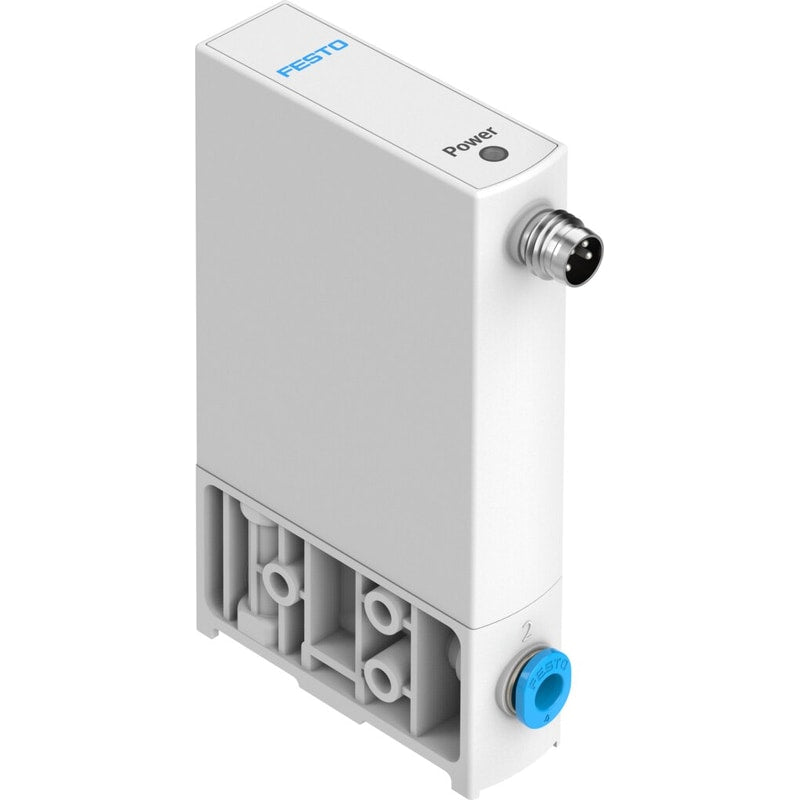

Proportional pressure control valve
VEAA-L-3-D9-Q4-V1-1R1
8046903
GTIN 4052568294717
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- QS-4
- Electrical connection
- M8x1 - Plug - as per EN 60947-5-2
- Normal nominal flow rate (normalized to DIN 1343)
- 10 l/min
- Standard nominal flow rate 2-3
- 6 l/min
Regular price
$682.11
Unit price
VEAA-L-3-D9-Q4-V1-1R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VEAA-L-3-D9-Q4-V1-1R1
Regular price
$682.11
Unit price
VEAA-L-3-D9-Q4-V1-1R1 is backordered and will ship as soon as it is back in stock.
| Type code | VEAA |
|---|---|
| KC characters | KC EMC |
| Absolute accuracy in ± %FS at room temperature | 0.7 %FS |
| Valve function | 3-way proportional pressure control valve |
| Type of control | Direct |
| Reset method | Mechanical spring |
| Actuation type | Electrical |
| Mounting position | Any |
| Sealing principle | Soft |
| Symbol | 995607 |
| Ambient temperature | 0 °C ... 50 °C |
| Temperature of medium | 5 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Dimensions W x L x H | 15 mm x 54.5 mm x 85 mm |
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | QS-4 |
| Pneumatic connection 3 | QS-4 |
| Seals material | NBR |
| Type of mounting | Optionally:With accessoriesWith through-hole |
| Inlet pressure 1 | 0 bar ... 11 bar |
| Outlet pressure 2 | 0.03 bar ... 6 bar |
| Standard nominal flow rate | ≥ 10 l/min |
| Standard nominal flow rate 2-3 | ≥ 6 l/min |
| Repetition accuracy in ± %FS | 0.4 %FS |
| Hysteresis in ± %FS | 0.25 %FS |
| Temperature coefficient | 0.05 %/K |
| Product weight | 55 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | RoHS-compliant |
| Certification | RCM compliance mark |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| DC operating voltage range | 19 V ... 29 V |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 0.1 |
| Reference value | 0 - 10 V4 - 20 mA |
| Precision analog output in ± %FS | 2 %FS |
| Max. electrical power consumption | 1 W |
| Reverse polarity protection | for all electrical connections |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VEAA/VEAB safety position: if the electrical power supply is lost, the outlet pressure is maintained in uncontrolled form, it may increase or fall – pneumatic valve blocked. |
| Display type | LED |
| Electrical connection | 4-pinM8x1Plugas per EN 60947-5-2 |
| Housing material | PA-reinforced |
