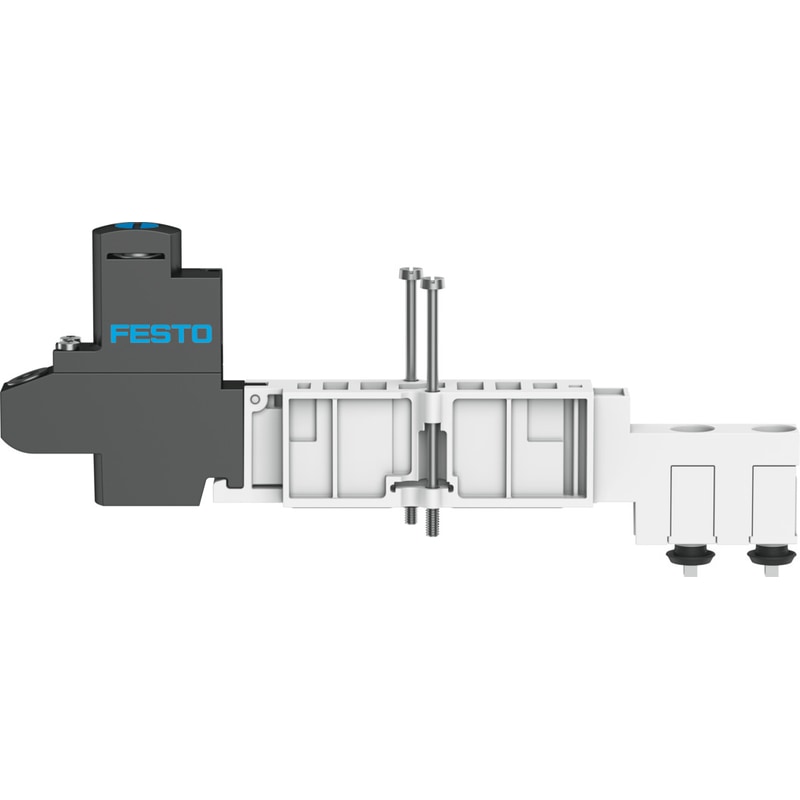

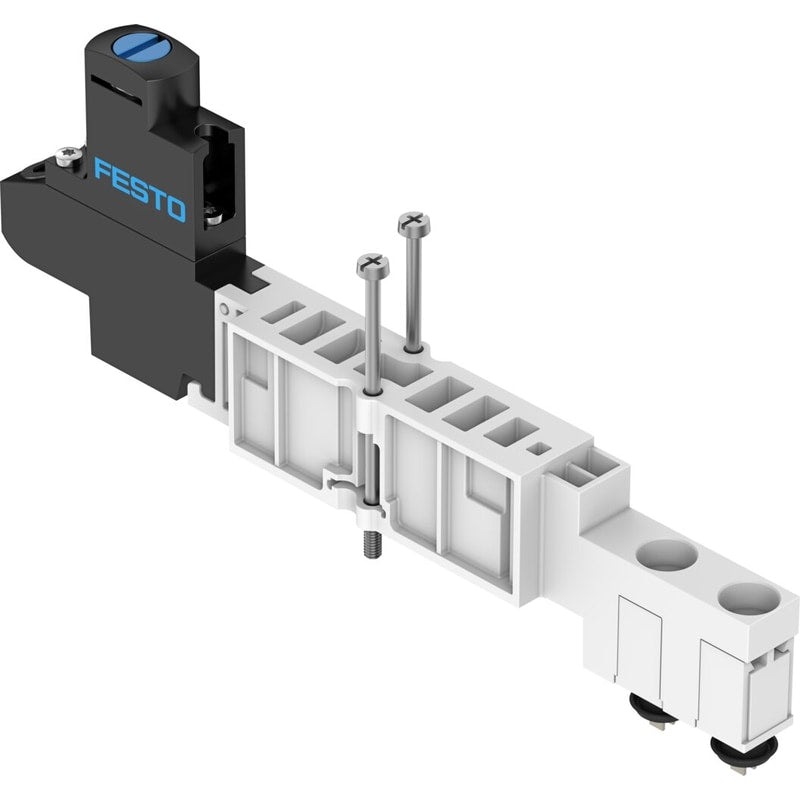

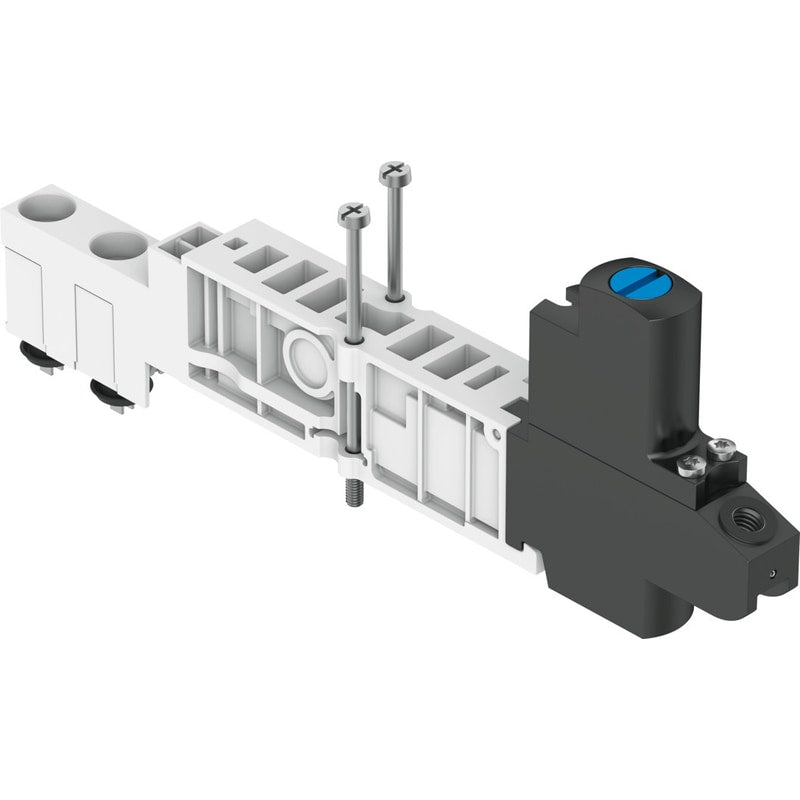

Regulator plate
VMPA14-B8-R1-M5-06
8043518
GTIN 4052568557164
Vendor Festo
Regular price
$196.73
Unit price
VMPA14-B8-R1-M5-06 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-B8-R1-M5-06
Regular price
$196.73
Unit price
VMPA14-B8-R1-M5-06 is backordered and will ship as soon as it is back in stock.
| Width | 14 mm |
|---|---|
| Mounting position | Any |
| Pneumatic vertical stacking | Pressure regulator for 1 |
| Controller function | Outlet pressure constant With secondary exhausting |

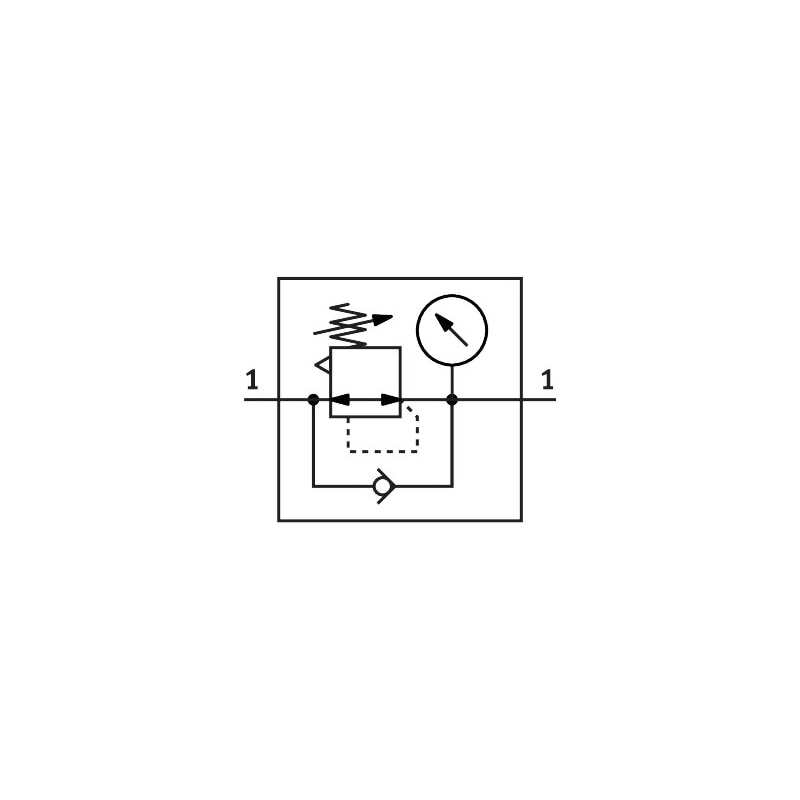

| Symbol | 00992000 |
| Pressure regulation range | 0.5 bar ... 6 bar |
| Inlet pressure 1 | 0.5 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 as per IEC 60529 |
| Ambient temperature | -5 °C ... 50 °C |
| Max. tightening torque | 0.65 Nm |
| Product weight | 76 g |
| Vertical stacking mounting type | On manifold sub-base |
| Pressure gauge connection | M5 |
| Note on materials | RoHS-compliant |
| Material of operator panel | PA |
| Seals material | NBR |
| Controller housing material | PA |
