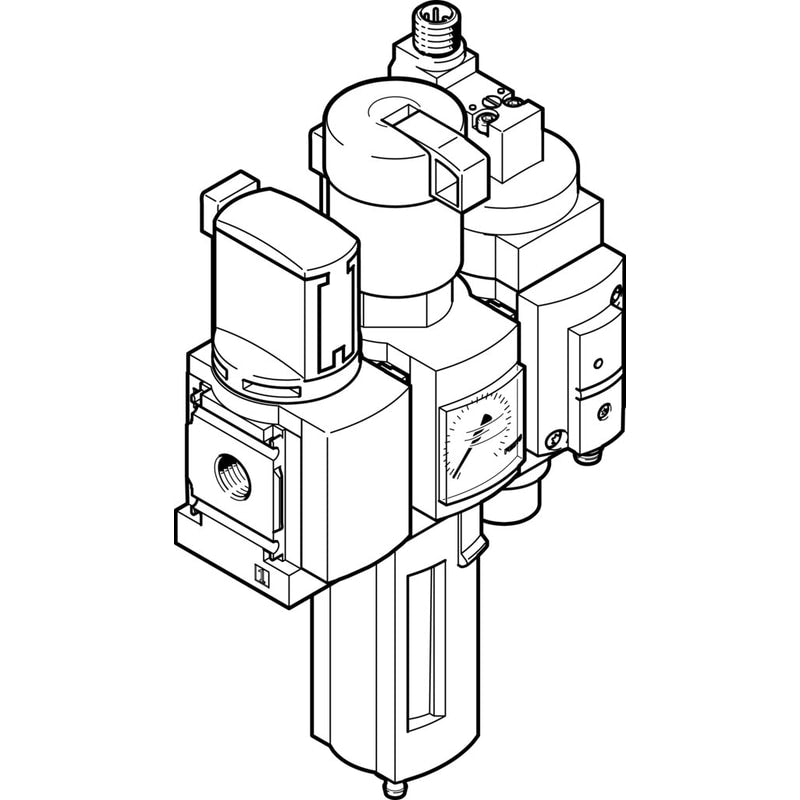

Air preparation combination unit
MSB6-1/2:C3:J120:D14-WP
8042670
GTIN 4052568287054
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 4400 l/min
- Pressure regulation range
- 4 bar - 7 bar
- Grade of filtration
- 40 µm
Regular price
$476.61
Unit price
Air preparation combination unit MSB6-1/2:C3:J120:D14-WP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSB6-1/2:C3:J120:D14-WP
Regular price
$476.61
Unit price
Air preparation combination unit MSB6-1/2:C3:J120:D14-WP is backordered and will ship as soon as it is back in stock.
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |
| Structural design | Shut off valve Filter regulator with pressure gauge |
| Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard |

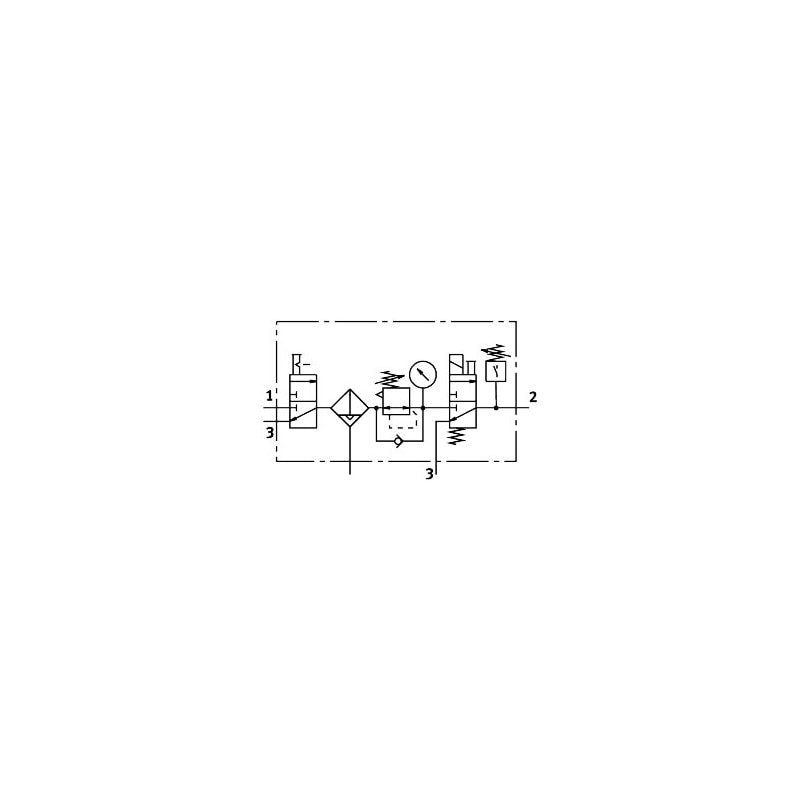

| Symbol | 00995364 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.8 bar ... 18 bar |
| Pressure regulation range | 0.5 bar ... 7 bar |
| Standard nominal flow rate | 4400 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C ... 60 °C |
| For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 2000 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
| Material of bowl | PC |
