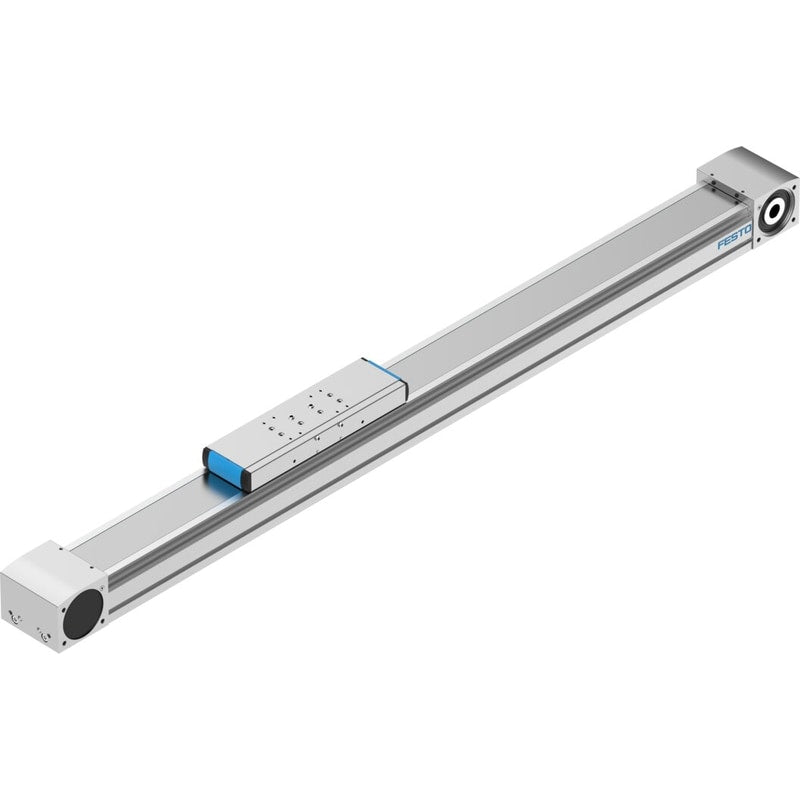

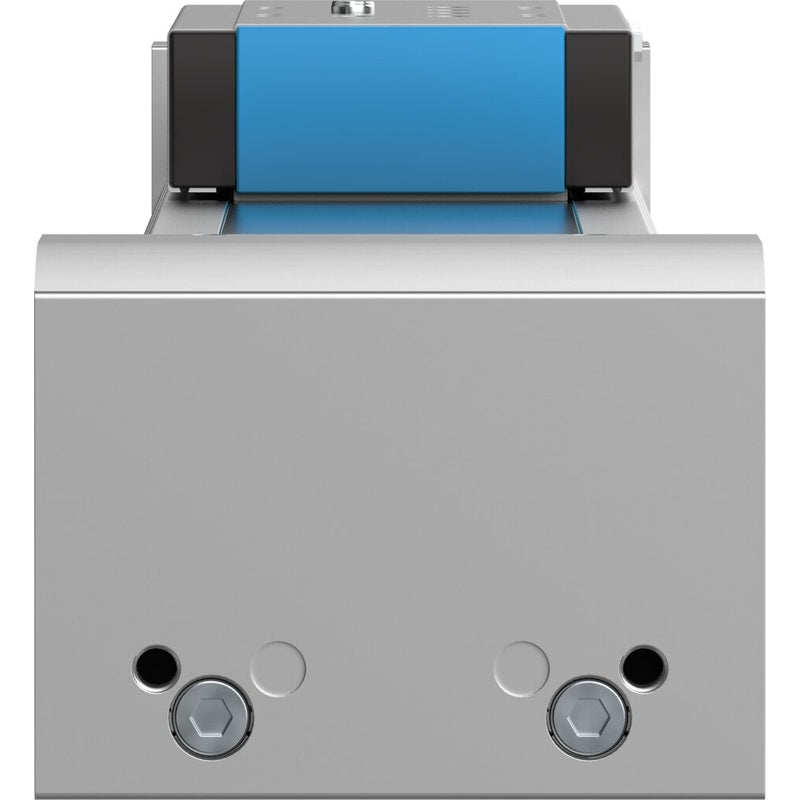

Belt driven linear actuator
ELGA-TB-KF-120-1000-0H
8041868
GTIN 4052568286682
Vendor Festo
- Size
- 120
- Max. feed force Fx
- 1300 N
- Repetition accuracy
- ±0.08 mm
- Working stroke
- 1000 mm
Regular price
$4,839.18
Unit price
ELGA-TB-KF-120-1000-0H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGA-TB-KF-120-1000-0H
Regular price
$4,839.18
Unit price
ELGA-TB-KF-120-1000-0H is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 52.52 mm |
|---|---|
| Working stroke | 1000 mm |
| Size | 120 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.0021 |
| Toothed belt pitch | 5 mm |
| Type code | ELGA |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.08 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C ... 60 °C |
| 2nd moment of area Iy | 1264580 mmâ´ |
| 2nd moment of area Iz | 4365790 mmâ´ |
| Max. driving torque | 34.1 Nm |
| Max. force Fy | 5500 N |
| Max. force Fz | 6890 N |
| Max. torque Mx | 104 Nm |
| Max. torque My | 680 Nm |
| Max. torque Mz | 680 Nm |
| Max. feed force Fx | 1300 N |
| No-load driving torque | 2.8 Nm |
| Torsion moment of inertia It | 435680 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 2.15 kgcm² |
| Mass moment of inertia JL per kg of payload | 6.9 kgcm² |
| Mass moment of inertia JO | 40.99 kgcm² |
| Mass moment of inertia JW for additional slide | 28.91 kgcm² |
| Feed constant | 165 mm/U |
| Lubrication interval, distance dependent | 1000 km |
| Slide weight | 4190 g |
| Additional slide weight | 3240 g |
| Additional weight per 10Â mm stroke | 106 g |
| Basic weight with 0Â mm stroke | 15680 g |
| Profile material | AnodizedWrought aluminum alloy |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | Stainless steel strip |
| Drive cover material | Wrought aluminum alloyAnodized |
| Slide carriage material | Tempered steel |
| Guide rail material | Tempered steelCorrotect coated |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Cast stainless steel |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
