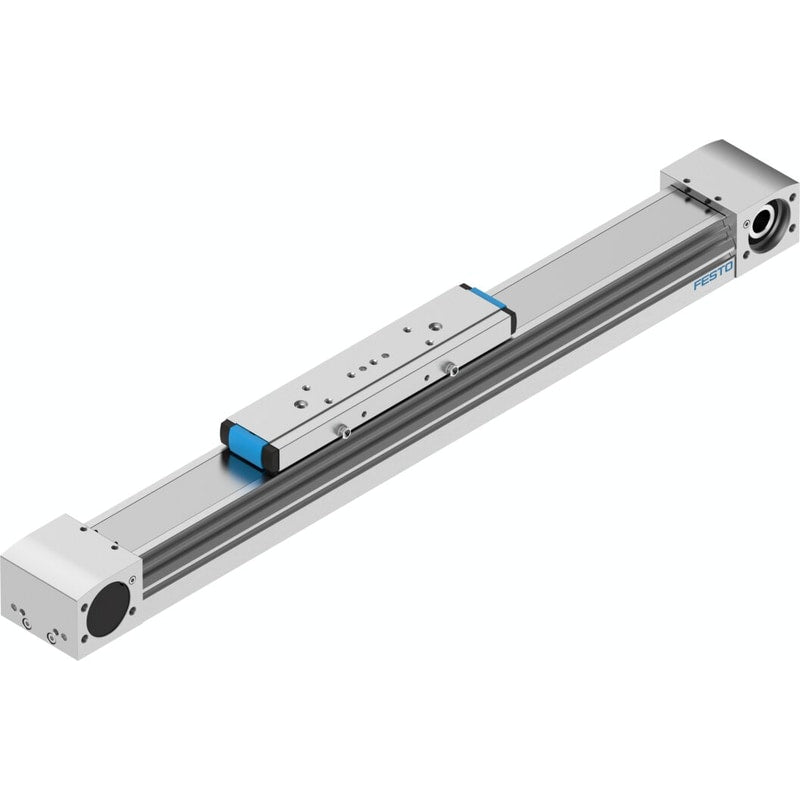

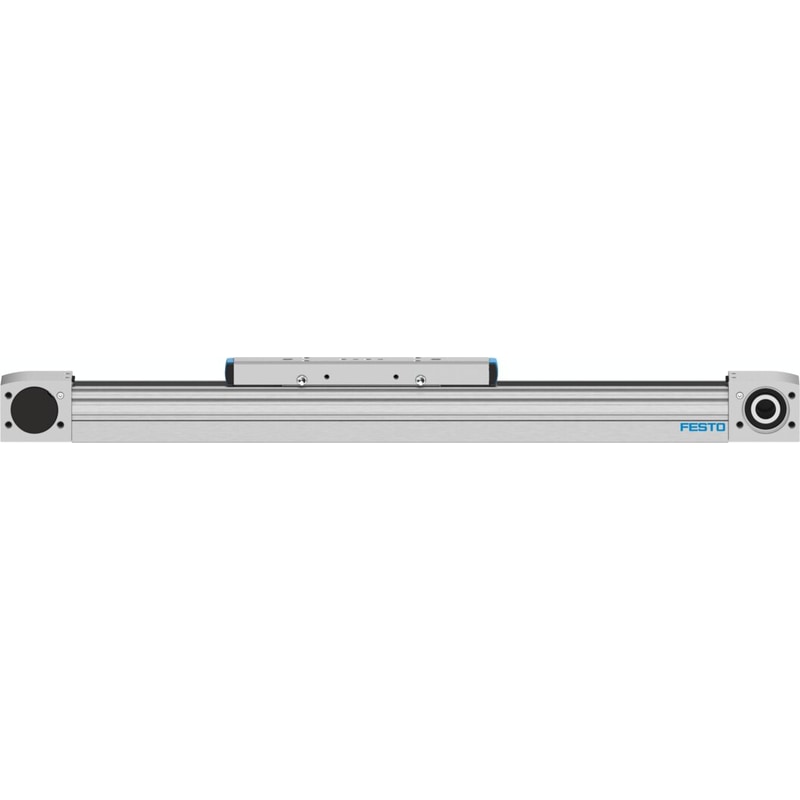

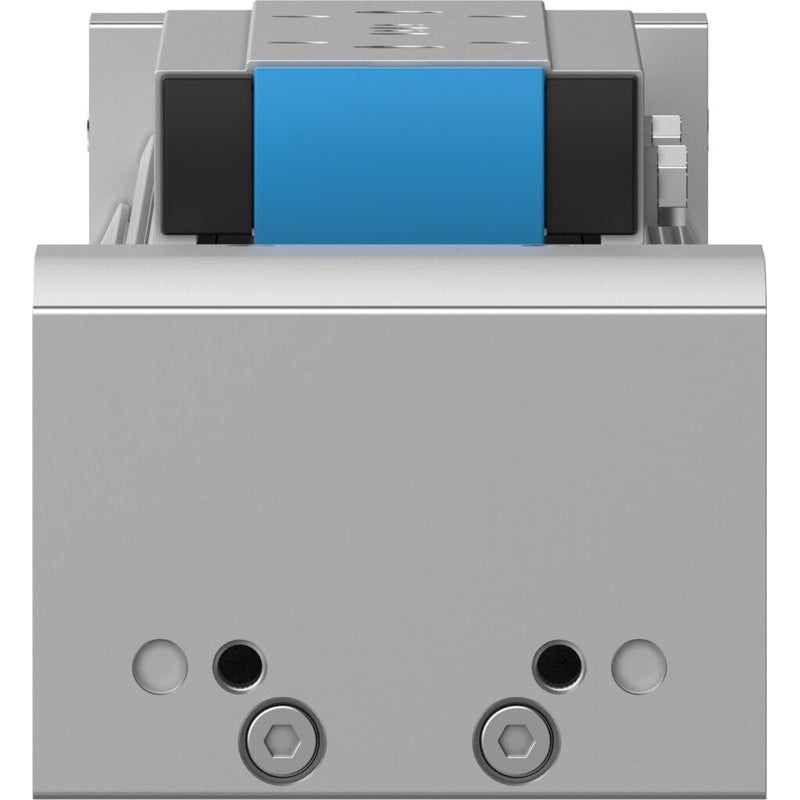

Belt driven linear actuator
ELGA-TB-KF-70-300-0H
8041851
GTIN 4052568286514
Vendor Festo
- Size
- 70
- Max. feed force Fx
- 350 N
- Repetition accuracy
- ±0.08 mm
- Working stroke
- 300 mm
Regular price
$2,380.12
Unit price
ELGA-TB-KF-70-300-0H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGA-TB-KF-70-300-0H
Regular price
$2,380.12
Unit price
ELGA-TB-KF-70-300-0H is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 28.65 mm |
|---|---|
| Working stroke | 300 mm |
| Size | 70 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.00213 |
| Toothed belt pitch | 3 mm |
| Type code | ELGA |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Electromechanical linear axiswith toothed belt |
| Motor type | Servo motorStepper motor |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.08 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C ... 60 °C |
| 2nd moment of area Iy | 146050 mmâ´ |
| 2nd moment of area Iz | 459290 mmâ´ |
| Max. driving torque | 5.02 Nm |
| Max. force Fy | 1500 N |
| Max. force Fz | 1850 N |
| Max. torque Mx | 16 Nm |
| Max. torque My | 132 Nm |
| Max. torque Mz | 132 Nm |
| Max. feed force Fx | 350 N |
| No-load driving torque | 0.6 Nm |
| Torsion moment of inertia It | 103880 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.19 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.05 kgcm² |
| Mass moment of inertia JO | 2.43 kgcm² |
| Mass moment of inertia JW for additional slide | 1.86 kgcm² |
| Feed constant | 90 mm/U |
| Lubrication interval, distance dependent | 1000 km |
| Slide weight | 900 g |
| Additional slide weight | 740 g |
| Additional weight per 10Â mm stroke | 39 g |
| Basic weight with 0Â mm stroke | 2970 g |
| Profile material | AnodizedWrought aluminum alloy |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | Stainless steel strip |
| Drive cover material | Wrought aluminum alloyAnodized |
| Slide carriage material | Stainless steel |
| Guide rail material | Stainless steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Cast stainless steel |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
