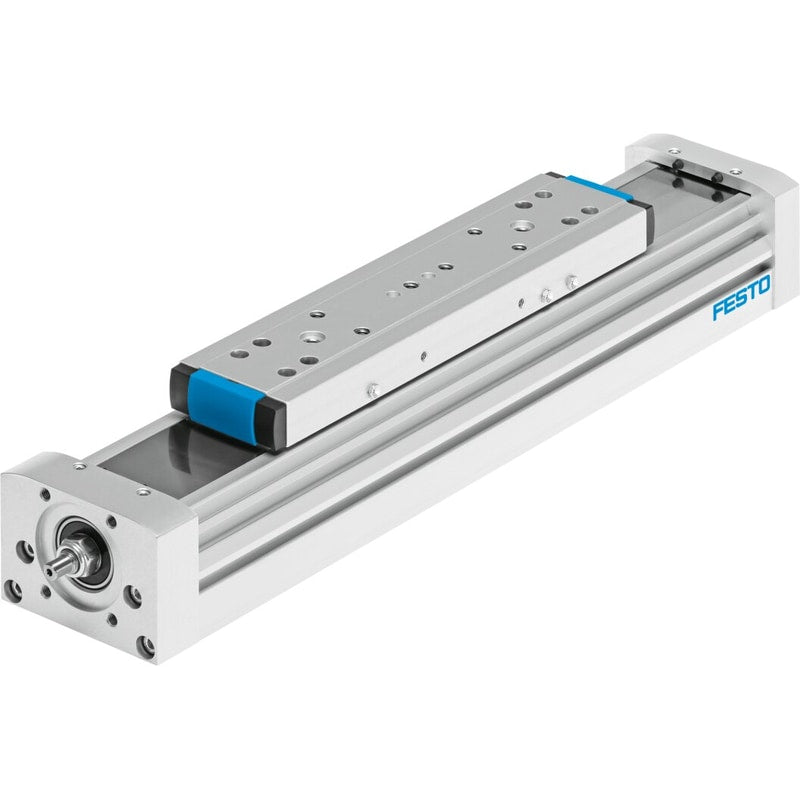

Ball screw axis
ELGA-BS-KF-80-200-0H-20P-ML
8041830
GTIN 4052568286316
Vendor Festo
- Size
- 80
- Max. feed force Fx
- 1600 N
- Repetition accuracy
- ±0.02 mm
- Working stroke
- 200 mm
Regular price
$3,178.75
Unit price
ELGA-BS-KF-80-200-0H-20P-ML is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGA-BS-KF-80-200-0H-20P-ML
Regular price
$3,178.75
Unit price
ELGA-BS-KF-80-200-0H-20P-ML is backordered and will ship as soon as it is back in stock.
| Working stroke | 200 mm |
|---|---|
| Size | 80 |
| Stroke reserve | 0 mm |
| Screw diameter | 15 mm |
| Spindle pitch | 20 mm/U |
| Type code | ELGA |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screwElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Spindle type | Ball screw |
| Symbol | 991211 |
| Measuring principle of linear potentiometer | Incremental |
| Max. acceleration | 15 m/s² |
| Max. rotational speed | 3000 1/min |
| Max. speed | 1 m/s |
| Repetition accuracy | ±0.02 mm |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C ... 60 °C |
| 2nd moment of area Iy | 310000 mmâ´ |
| 2nd moment of area Iz | 977000 mmâ´ |
| No-load torque at maximum travel speed | 0.6 Nm |
| No-load torque at minimum travel speed | 0.35 Nm |
| Max. force Fz | 3050 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 9200 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 11224 N |
| Max. torque Mx | 36 Nm |
| Max. torque My | 228 Nm |
| Max. torque Mz | 228 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 132 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 839 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 839 Nm |
| Max. radial force on actuator shaft | 250 N |
| Max. feed force Fx | 1600 N |
| Torsion moment of inertia It | 67300 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.346 kgcm² |
| Mass moment of inertia JL per kg of payload | 0.1013 kgcm² |
| Mass moment of inertia JO | 0.097 kgcm² |
| Feed constant | 20 mm/U |
| Moving mass | 1370 g |
| Additional weight per 10Â mm stroke | 46.5 g |
| Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
| Static deflection (load at standstill) | 0.1 % of axis length |
| Material of end caps | Wrought aluminum alloyAnodized |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Drive cover material | AnodizedWrought aluminum alloy |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Slide material | AnodizedWrought aluminum alloy |
| Spindle nut material | Steel |
| Spindle material | Steel |
