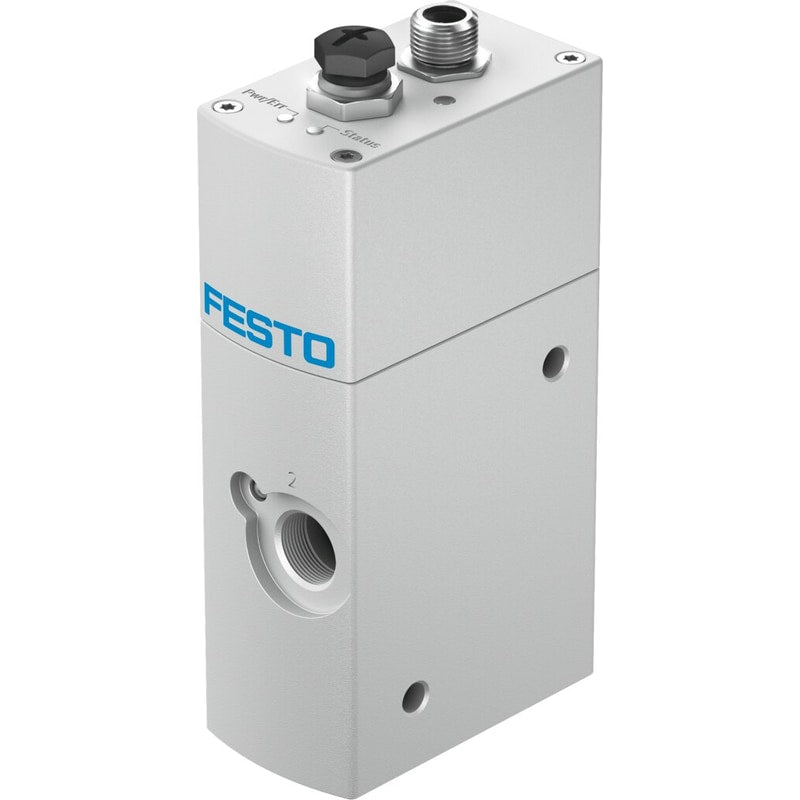

Proportional flow control valve
VPCF-6-L-8-G38-6-A4-E-EX2
8041713
GTIN 4052568286132
Vendor Festo
- Valve function
- 3-way proportional flow control valve
- Pneumatic connection 1
- G3/8
- Flow rate control range
- 20 l/min - 1000 l/min
- Analog input signal range
- 4 - 20 mA
- Current rating per output
- 100 mA
Regular price
$2,561.72
Unit price
VPCF-6-L-8-G38-6-A4-E-EX2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPCF-6-L-8-G38-6-A4-E-EX2
Regular price
$2,561.72
Unit price
VPCF-6-L-8-G38-6-A4-E-EX2 is backordered and will ship as soon as it is back in stock.
| Valve function | 3-way proportional flow control valve |
|---|---|
| Type code | VPCF |
| Design | Piston gate valvewith integrated pressure sensors |
| Type of control | Direct |
| Actuation type | Electrical |
| Reset method | Magnetic spring |
| Symbol | 995603 |
| Flow direction | Non-reversible |
| Mounting position | Any |
| Sealing principle | Hard |
| Nominal width | 6 mm |
| Short-circuit protection | yes |
| Display type | LED |
| Flow rate range | 0 l/min ... 1000 l/min |
| Operating pressure | 1 bar ... 6 bar |
| Flow rate control range | 20 l/min ... 1000 l/min |
| Note on the flow rate control range | Regulation takes place at 20 l/min; below this setpoint value, the flow control valve switches to the exhausting position.The accuracy specifications provided are based on a flow rate control range of 50-1000 l/min. |
| Repetition accuracy in ± %FS | 0.5 %FS |
| Absolute accuracy in ± %FS at room temperature | 3 %FS |
| Hysteresis in ± %FS | 0.8 %FS |
| Ambient temperature | 0 °C ... 50 °C |
| Temperature of medium | 15 °C ... 35 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX)As per EU EMC directive |
| Note on materials | RoHS-compliant |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Certification | RCM compliance mark |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T5 X Gc |
| ATEX category for dust | II 3D |
| Type of (ignition) protection for dust | Ex tc IIIC T60°C X Dc |
| Explosive ambient temperature | 0°C <= Ta <= +50°C |
| Nominal operating voltage DC | 24 V |
| DC operating voltage range | 20.4 V ... 30 V |
| Residual ripple | 0.05 |
| Max. current consumption | 1.2 A |
| Current consumption with load-free outputs | 150 mA |
| Switching output | PNP |
| Switching input | PNP |
| Current rating per output | 100 mA |
| Reverse polarity protection | for operating voltage |
| Duty cycle | 1 |
| Max. electrical power consumption | 36 W |
| Analog output signal range | 4 - 20 mA |
| Analog input signal range | 4 - 20 mA |
| Diagnostic function | Indication via LED |
| Electrical connection | M12x1A-codedPlug8-pin |
| Type of mounting | Direct mounting via through-holeDirect fastening via thread |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Product weight | 856 g |
| Housing material | Wrought aluminum alloy, anodized |
| Seals material | FPMHNBR |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX) |
