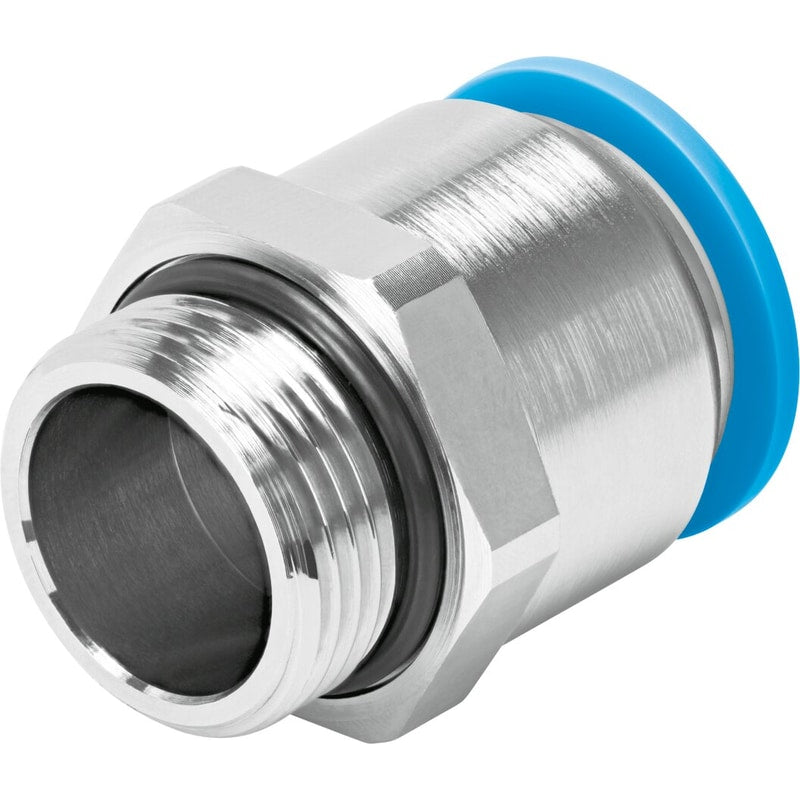

Push-in fitting
QS-G3/4-22
8040613
GTIN 4052568286118
Vendor Festo
- Pneumatic connection 1
- External thread G3/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 22 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -20 °C - 80 °C
- Nominal width
- 20 mm
Regular price
$13.53
Unit price
QS-G3/4-22 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-G3/4-22
Regular price
$13.53
Unit price
QS-G3/4-22 is backordered and will ship as soon as it is back in stock.
push-in fitting QS-G3/4-22 Size=Standard, Nominal size=20 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 20 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 14 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Nominal tightening torque | 20 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 93.2 g |
| connection 1 | Male thread G3/4 |
| connection 2 | 22mm outside diameter, for tubing |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
