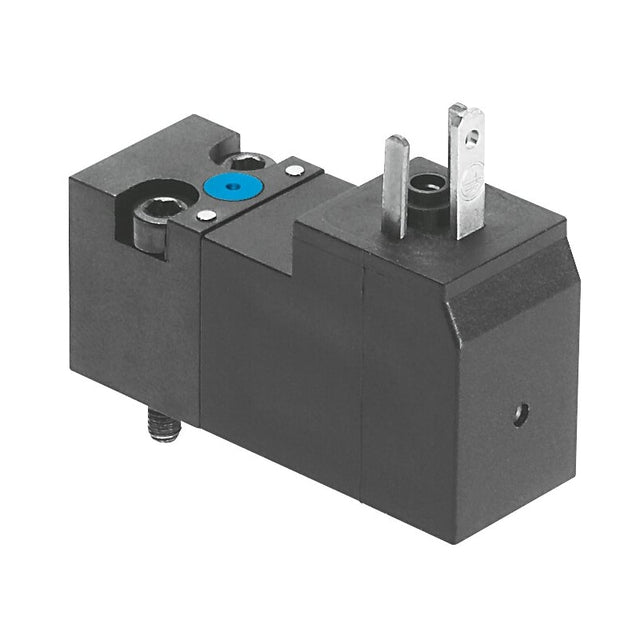

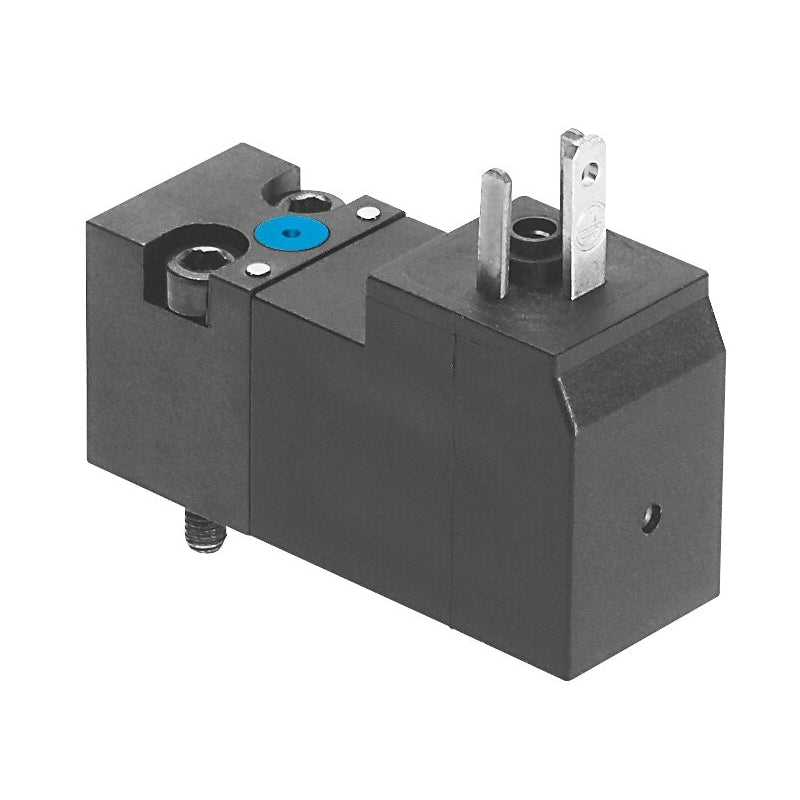

Air solenoid valve
VSCS-B-M32-MH-WA-2AC1-8
8040567
GTIN 4052568434564
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 13.5 l/min
- Pneumatic connection 1
- Sub-base
- Actuation type
- Electrical
Regular price
$31.74
Unit price
VSCS-B-M32-MH-WA-2AC1-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSCS-B-M32-MH-WA-2AC1-8
Regular price
$31.74
Unit price
VSCS-B-M32-MH-WA-2AC1-8 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, closed, monostable |
|---|---|
| Lap | Underlap |
| Actuation type | Electrical |
| Width | 15 mm |
| Standard nominal flow rate | 13.5 l/min |
| Pneumatic working port | Sub-base, size 15 mm as per ISO 15218 |
| Operating voltage | 110V AC |
| Operating pressure | 1.5 bar ... 8 bar |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Type code | VSCS |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15218 |
| Manual override | Non-detenting |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00991308 |
| Note on forced dynamization | Switching frequency at least once a week |
| Switching time off | 20 ms |
| On switching time | 8 ms |
| Duty cycle | 100% |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 2.0 VA, holding power 1.5 VA |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Electrical connection | Form Cas per DIN EN 175301-803 |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Pneumatic connection 3 | Sub-base |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
