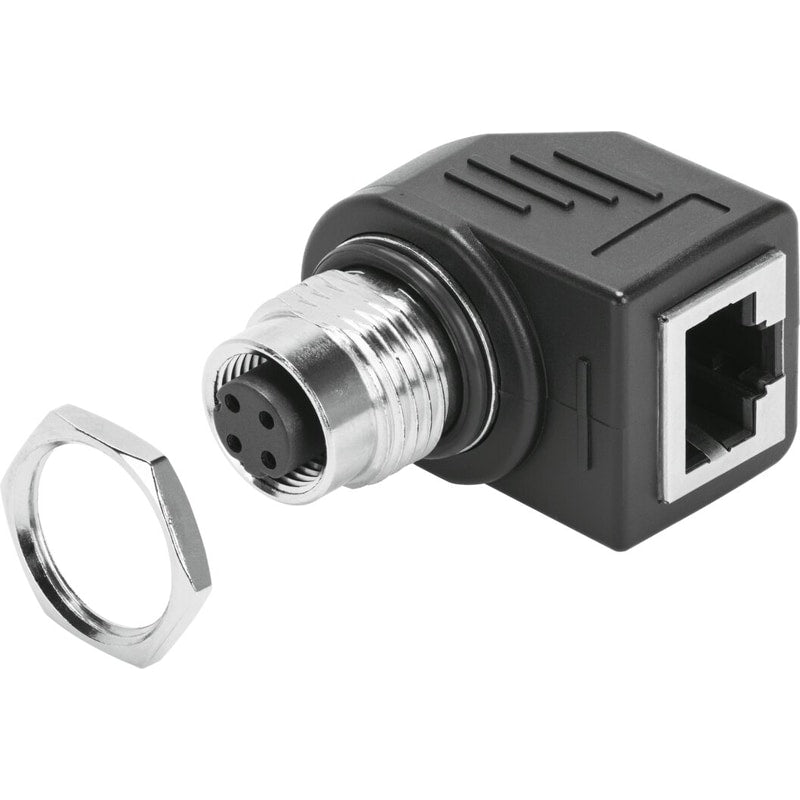

Cabinet through-feed
NEFU-D12G4-R3DW4
8040457
GTIN 4052568286057
Vendor Festo
- Degree of protection
- IP20 - IP65 - IP67
Regular price
$58.74
Unit price
NEFU-D12G4-R3DW4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEFU-D12G4-R3DW4
Regular price
$58.74
Unit price
NEFU-D12G4-R3DW4 is backordered and will ship as soon as it is back in stock.
| Length | 40.1 mm |
|---|---|
| Type code | NEFU |
| Conforms to standard | IEC 60603-7-3EN 61076-2-101 |
| Type of mounting | Screwed tightly |
| Electrical connection 1 | Straight socket, M12x1, 4-pin, D-coded |
| Electrical connection 2 | Angled socket, RJ45, 4-pin |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.0833333333333333 |
| Surge resistance | 0.8 kV |
| Degree of protection | IP67IP20IP65 |
| Ambient temperature | -5 °C ... 60 °C |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | Die-cast zincPABrass, nickel-plated |
| Housing colour | Black |
| Material of pin contacts | BrassGold-plated |
| Transmission characteristics | According to category 5, ISO/IEC 11801, class DIn accordance with category 5, EN 50173, class D |
