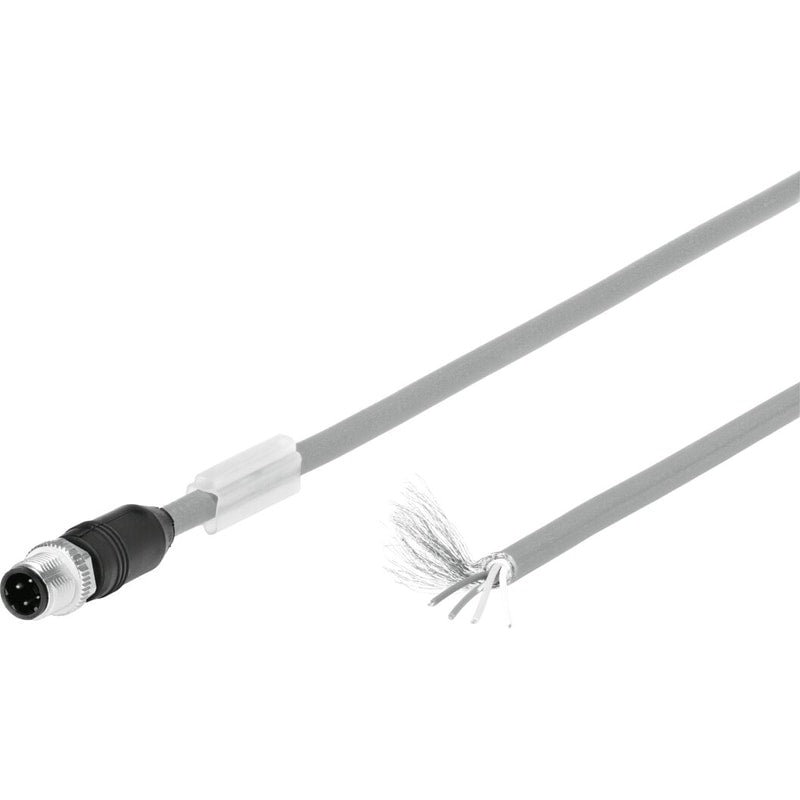

Connecting cable
NEBC-LE4-ES-5-D12G4-ET
8040456
GTIN 4052568286040
Vendor Festo
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1, D-coded as per EN 61076-2-101
- Cable length
- 5 m
Regular price
$36.48
Unit price
NEBC-LE4-ES-5-D12G4-ET is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-LE4-ES-5-D12G4-ET
Regular price
$36.48
Unit price
NEBC-LE4-ES-5-D12G4-ET is backordered and will ship as soon as it is back in stock.
connecting cable NEBC-LE4-ES-5-D12G4-ET Conforms to standard=EN 61076-2-101, Authorisation=c UL us - Listed (OL), Electrical connection 1=Open end, 4-wire, Electrical connection 2=Straight plug, M12x1, 4-pin, D-coded, Operating voltage range DC=0 - 30 V
| Conforms to standard | EN 61076-2-101 |
|---|---|
| Authorisation | c UL us - Listed (OL) |
| Electrical connection 1 | Open end, 4-wire |
| Electrical connection 2 | Straight plug, M12x1, 4-pin, D-coded |
| Operating voltage range DC | 0 ... 30 V |
| Operating voltage range AC | 0 ... 30 V |
| Acceptable current load at 40°C | 0.166666666666667 |
| Surge strength | 0.8 kV |
| Transmission properties | In accordance with category 5, EN 50173, class DIn accordance with category 5, ISO/IEC 11801, class D |
| Ethernet cable specification | Type: CAT 5 |
| Cable length | 5 m |
| Cable attribute | Suitable for chain link trunking |
| Test conditions of cable | Bending strength according to Festo standardTest conditions on requestEnergy chain: 2 million cycles, bending radius 100 mm |
