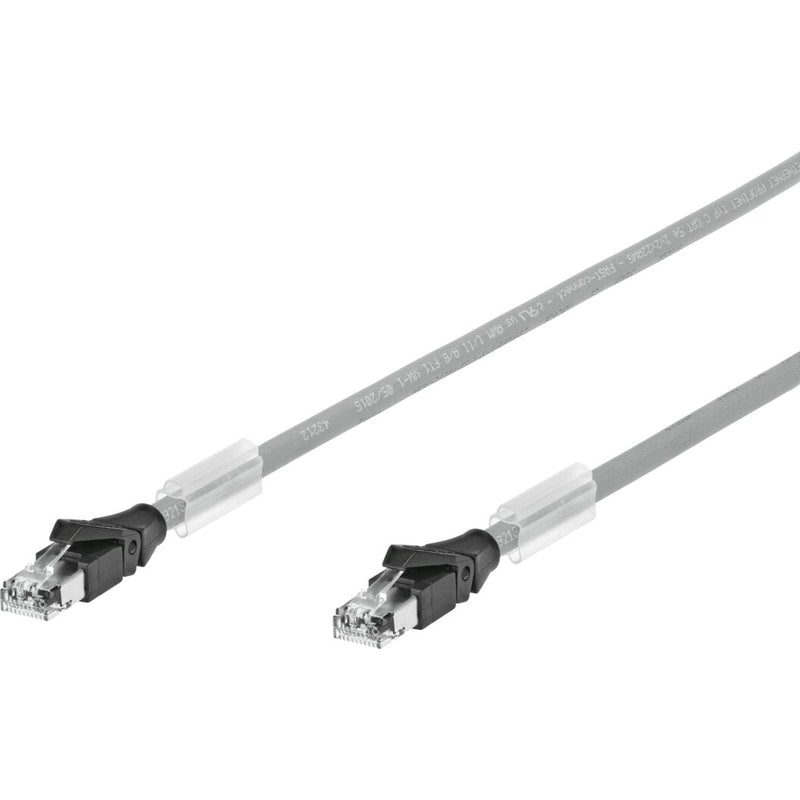

Connecting cable
NEBC-R3G4-ES-1-S-R3G4-ET
8040455
GTIN 4052568286033
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Cable length
- 1 m
Regular price
$46.89
Unit price
NEBC-R3G4-ES-1-S-R3G4-ET is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-R3G4-ES-1-S-R3G4-ET
Regular price
$46.89
Unit price
NEBC-R3G4-ES-1-S-R3G4-ET is backordered and will ship as soon as it is back in stock.
connecting cable NEBC-R3G4-ES-1-S-R3G4-ET Conforms to standard=IEC 60603-7-3, Electrical connection 1=Straight plug connector, RJ45, 4-pin, Electrical connection 2=Straight plug connector, RJ45, 4-pin, Operating voltage range DC=0 - 30 V, Acceptable current load at 40°C=1,76 A
| Conforms to standard | IEC 60603-7-3 |
|---|---|
| Electrical connection 1 | Straight plug connector, RJ45, 4-pin |
| Electrical connection 2 | Straight plug connector, RJ45, 4-pin |
| Operating voltage range DC | 0 ... 30 V |
| Acceptable current load at 40°C | 1.76 A |
| Surge strength | 0.8 kV |
| Transmission properties | In accordance with category 5, EN 50173, class DIn accordance with category 5, ISO/IEC 11801, class D |
| Ethernet cable specification | Type: CAT 5 |
| Cable length | 1 m |
| Cable attribute | Suitable for chain link trunking |
| Test conditions of cable | Bending strength according to Festo standardTest conditions on requestEnergy chain: 2 million cycles, bending radius 100 mm |
| Min. cable bending radius | 100 mm |
| Cable diameter | 6.7 mm |
