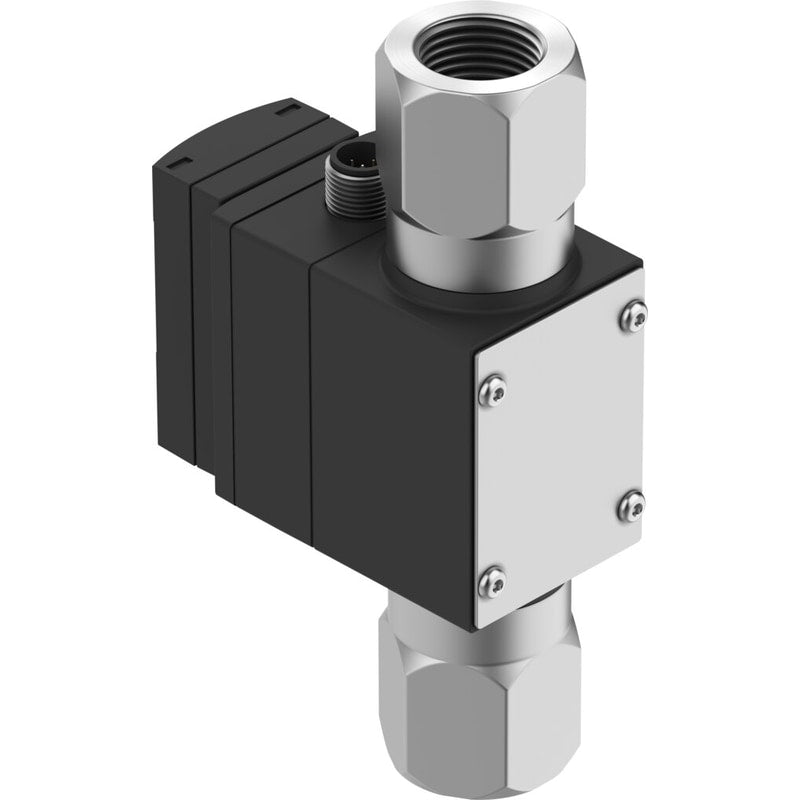

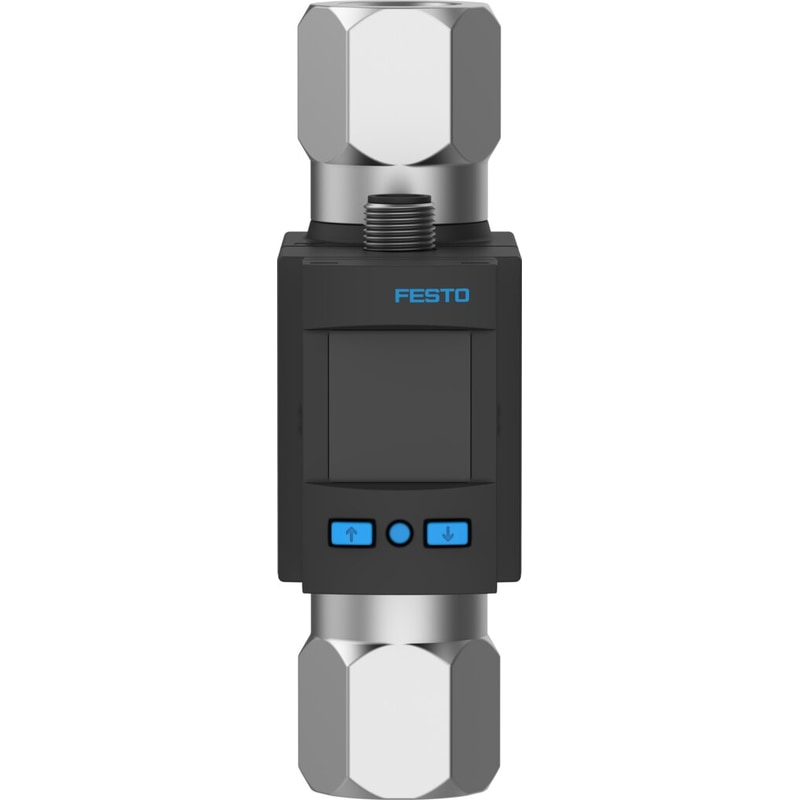

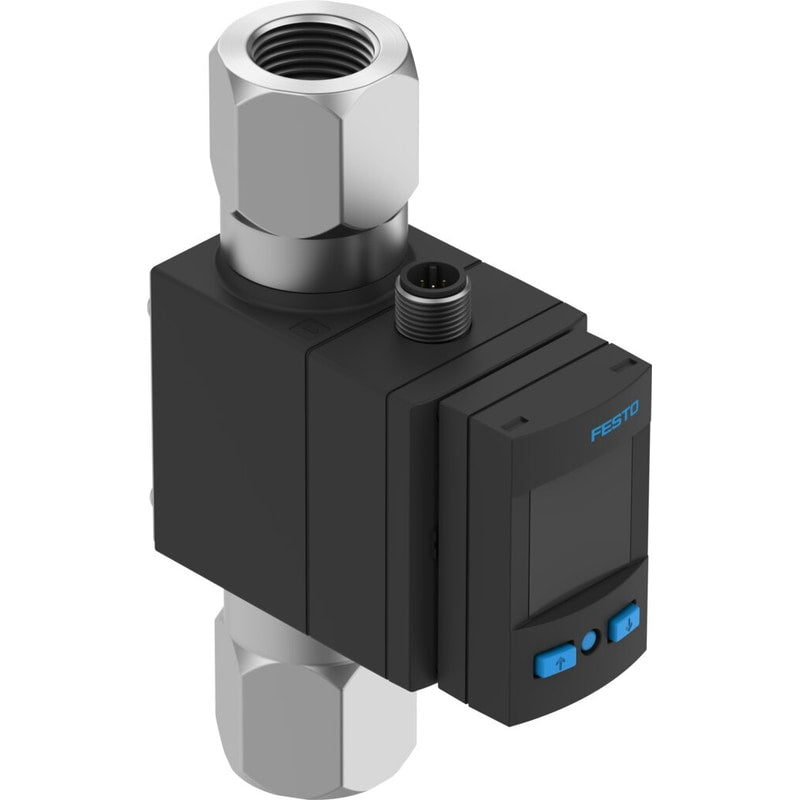

Flow sensor
SFAW-32T-TG12-E-PNLK-PNVBA-M12
8036872
GTIN 4052568285289
Vendor Festo
- Flow characteristic curve, end value
- 32 l/min
- Operating medium
- Liquid media - Water - Neutral liquids
- Operating pressure
- 0 bar - 12 bar
- Fluid connector
- Internal thread G1/2
- Flow direction
- Unidirectional - P1 -> P2
Regular price
$765.90
Unit price
SFAW-32T-TG12-E-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SFAW-32T-TG12-E-PNLK-PNVBA-M12
Regular price
$765.90
Unit price
SFAW-32T-TG12-E-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.
flow sensor SFAW-32T-TG12-E-PNLK-PNVBA-M12 Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=(* Flow rate , * Temperature), Direction of flow=(* Unidirectional, * P1 -> P2)
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Materials note | Conforms to RoHS |
| Measured variable | Flow rate Temperature |
| Direction of flow | UnidirectionalP1 -> P2 |
| Measurement method | Flow: vortexTemperature: PT1000 |
| Flow measurement range initial value | 1.8 l/min |
| Flow measurement range final value | 32 l/min |
| Temperature measuring range starting value | 0 °C |
| Temperature measuring range end value | 90 °C |
| Operating pressure | 0 ... 12 bar |
| Note on operating pressure | Max. 12 bar at 40°CMax. 6 bar at 100°C |
