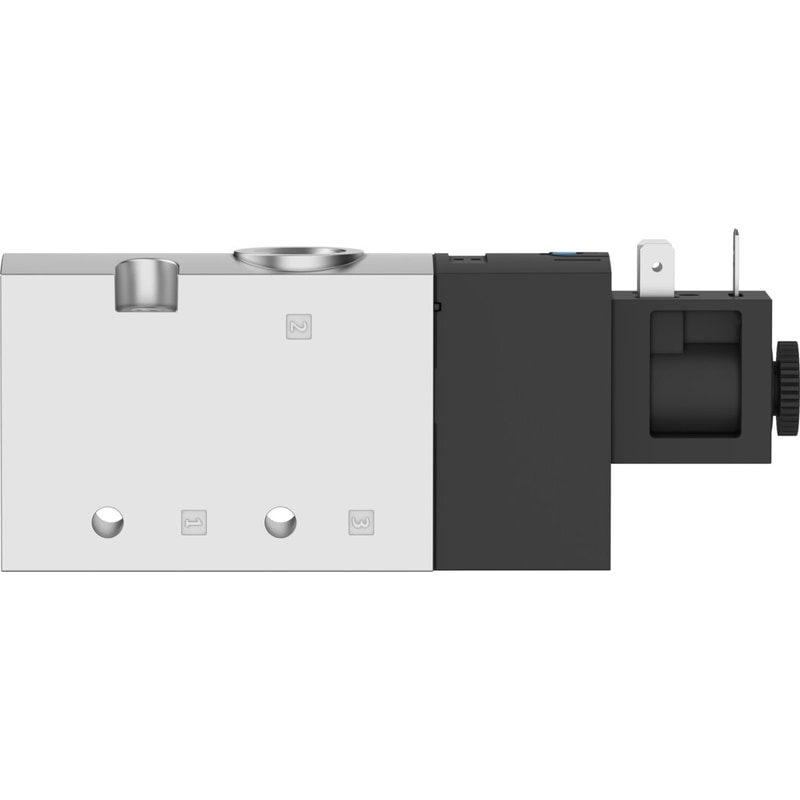

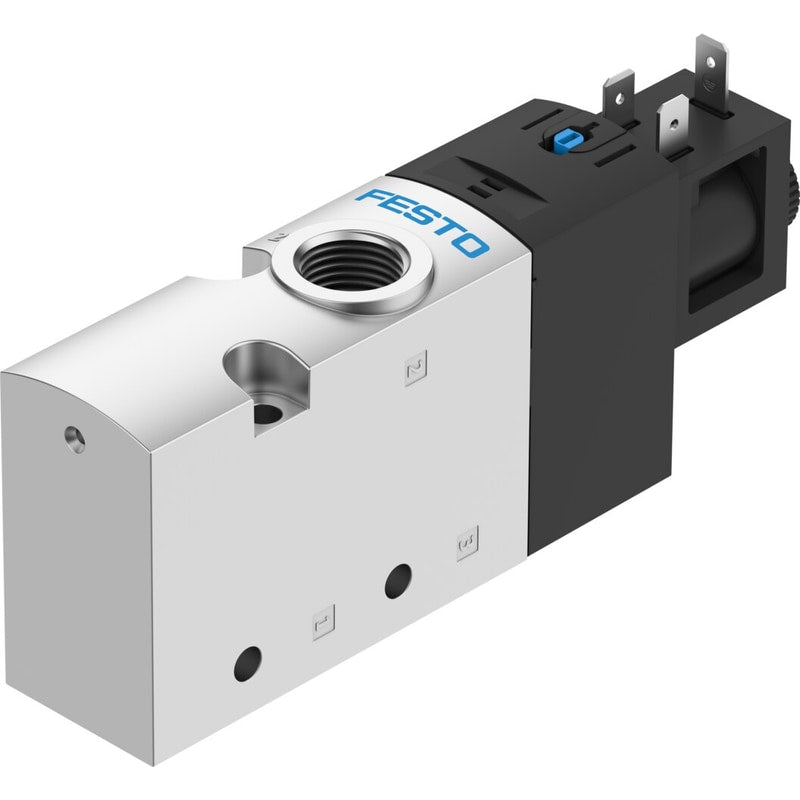

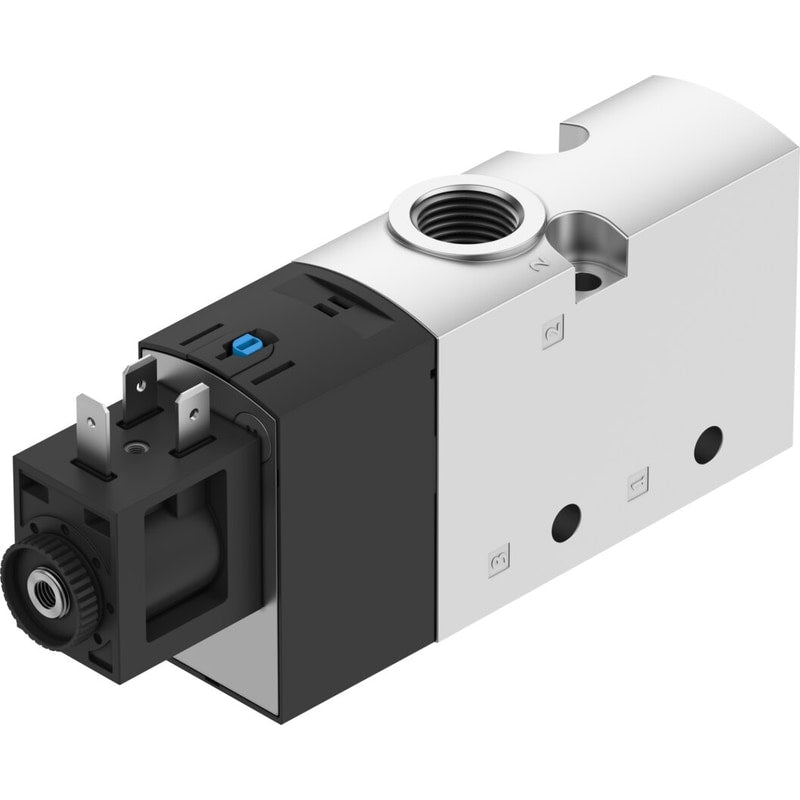

Air solenoid valve
VUVS-LT30-M32U-MZD-G38-F8-1B2
8036684
GTIN 4052568429614
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic connection 1
- G3/8
- Actuation type
- Electrical
Regular price
$142.05
Unit price
VUVS-LT30-M32U-MZD-G38-F8-1B2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVS-LT30-M32U-MZD-G38-F8-1B2
Regular price
$142.05
Unit price
VUVS-LT30-M32U-MZD-G38-F8-1B2 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, open, monostable |
|---|---|
| Material of screws | Steel, galvanized |
| Lap | Underlap |
| Actuation type | Electrical |
| Valve size | 31 mm |
| Standard nominal flow rate | 1600 l/min |
| Pneumatic working port | G3/8 |
| Operating voltage | 24V DC |
| Operating pressure | 1 bar ... 10 bar |
| Design | Plate seat |
| Reset method | Mechanical spring |
| Degree of protection | With plug socketas per IEC 60529IP65 |
| Certification | c UL us - Recognized (OL) |
| Nominal width | 7.9 mm |
| Type code | VUVS |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detentingDetenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Non-reversible |
| Symbol | 992803 |
| b-value | 0.2 |
| C value | 7 l/sbar |
| Switching time off | 36 ms |
| On switching time | 14 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse on 1 signal | 3600 µs |
| Coil characteristics | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 359 g |
| Electrical connection | Form B |
| Type of mounting | Optionally:On terminal stripWith through-hole |
| Venting hole connection | Not ducted |
| Pilot exhaust air port 82 | M5 |
| Pilot air port 12 | G1/8 |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRTPE-U(PU)NBR |
| Housing material | Die cast aluminum, painted |
| Piston slide material | Wrought aluminum alloy |
