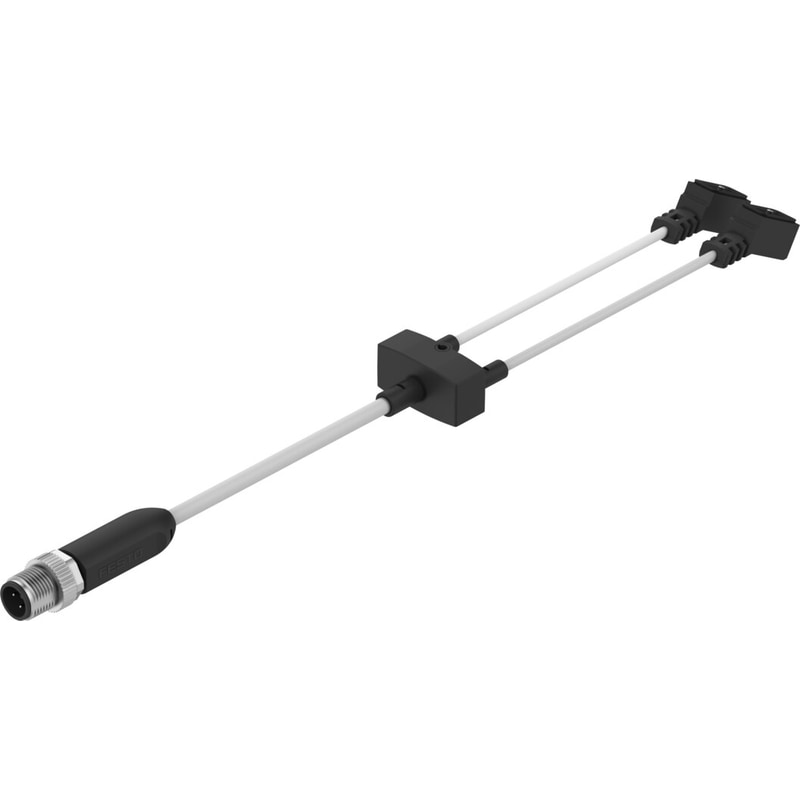

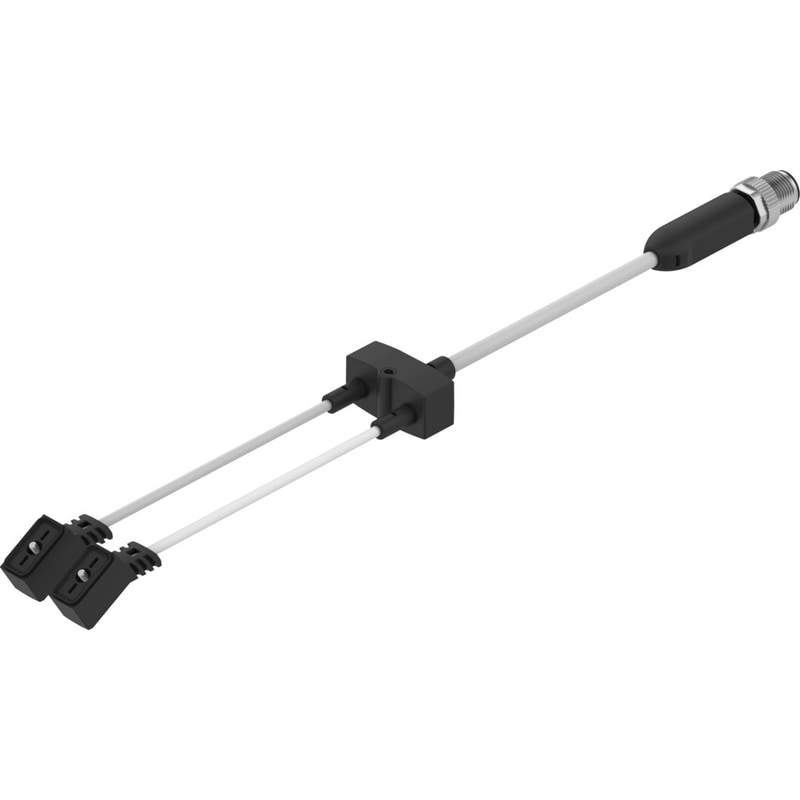

Distributor
NEDY-L2R1-V1-Z4W2Z-U-0.3L-M12G4-2.5R
8035787
GTIN 4052568285173
Vendor Festo
- Structural design
- Y-distributor with cables at both ends
- Cable length 1
- 2.5 m
- Cable length 2
- 0.3 m
- Degree of protection
- IP65
- Current rating at 40° C
- 1 A
Regular price
$71.55
Unit price
NEDY-L2R1-V1-Z4W2Z-U-0.3L-M12G4-2.5R is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDY-L2R1-V1-Z4W2Z-U-0.3L-M12G4-2.5R
Regular price
$71.55
Unit price
NEDY-L2R1-V1-Z4W2Z-U-0.3L-M12G4-2.5R is backordered and will ship as soon as it is back in stock.
| Type code | NEDY |
|---|---|
| Based on norm | EN 61076-2-101 |
| Certification | RCM compliance mark |
| Design | Y-distributor with cables at both ends |
| Distributor type | 2 to 1 |
| Signal status display | LED yellow |
| Additional functions | Holding current reduction |
| Cable designation | With label holder |
| Type of mounting | With accessoriesWith through-hole for M2 screw |
| Product weight | 100 g |
| Electrical connection 1, function | Control side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 995635 |
| Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | 2x socket |
| Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connection technology | Connection diagram ZC, metric screw |
| Electrical connection 2, occupied pins/wires | 2 |
| Electrical connection 2, connection pattern | 995625 |
| DC operating voltage range | 20.4 V ... 27.6 V |
| Current rating at 40°C | 0.0416666666666667 |
| Surge resistance | 0.8 kV |
| Cable length 1 | 2.5 m |
| Cable length 2 | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Information on cable characteristics | Standard for field device side |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 28 mmFlexural strength: as per Festo standardTest conditions on requestTorsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Note on connector cable test conditions | Standard: cable chain: 1.5 million cycles, bending radius 75 mm; flexural strength: as per Festo standard, test conditions on request |
| Bending radius 1, flexible cable installation | 45 mm |
| Bending radius 2, flexible cable installation | 34 mm |
| Cable diameter 1 | 4.5 mm |
| Cable diameter 2 | 3.4 mm |
| Nominal conductor cross section | 0.25 mm² |
| Degree of protection | IP65 |
| Ambient temperature | -10 °C ... 50 °C |
| Note on ambient temperature | -10 - 40 °C when mounted via through-hole |
| Ambient temperature with flexible cable installation | -5 °C ... 50 °C |
| Storage temperature | -10 °C ... 50 °C |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | PATPE-U(PUR) |
| Housing colour | Black |
| Seals material | NBRTPE-O |
| Material of pin contacts | Copper alloy, tin-platedCopper alloy, gold-plated |
| Threaded sleeve material | Brass, nickel-plated |
