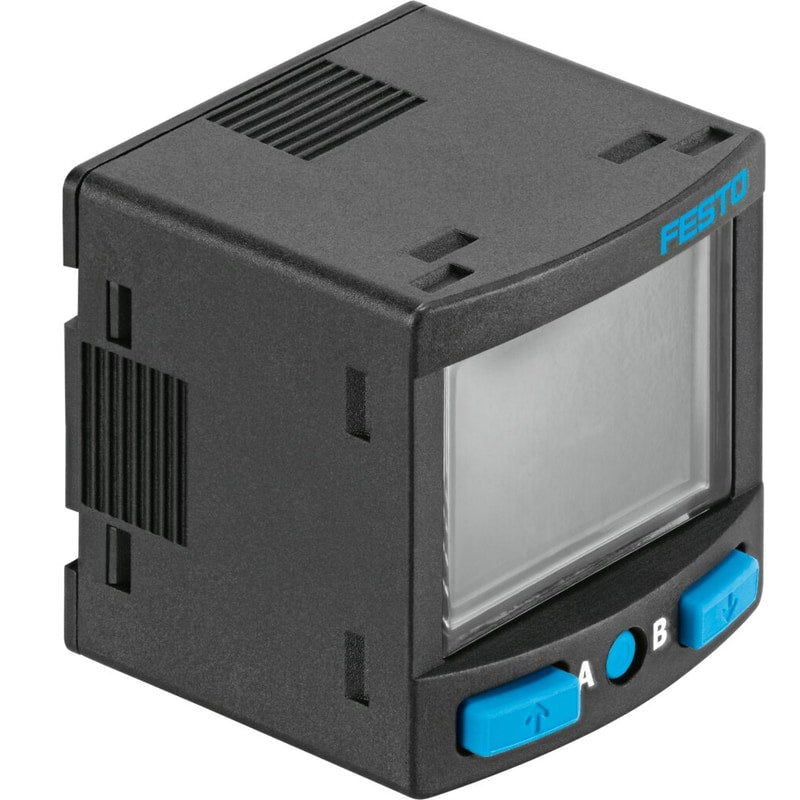

Signal conditioner
SCDN-2A-EC4-PNLK-L1
8035556
GTIN 4052568284961
Vendor Festo
- Signal range
- 0 - 20 mA
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Freely programmable
Regular price
$167.55
Unit price
SCDN-2A-EC4-PNLK-L1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SCDN-2A-EC4-PNLK-L1
Regular price
$167.55
Unit price
SCDN-2A-EC4-PNLK-L1 is backordered and will ship as soon as it is back in stock.
signal converter SCDN-2A-EC4-PNLK-L1 Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Current, Signal range=0 - 20 mA
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Certificate issuing department | UL E322346 |
| Materials note | Conforms to RoHS |
| Measured variable | Current |
| Signal range | 0 - 20 mA |
| Ambient temperature | 0 ... 50 °C |
| Typical scanning interval | 1 ms |
| Accuracy, FS | 0.5 %FS |
| Repetition accuracy in ± %FS | 0.2 %FS |
| Switch output | 2 x PNP or 2 x NPN switchable |
| Switching function | Freely programmable |
