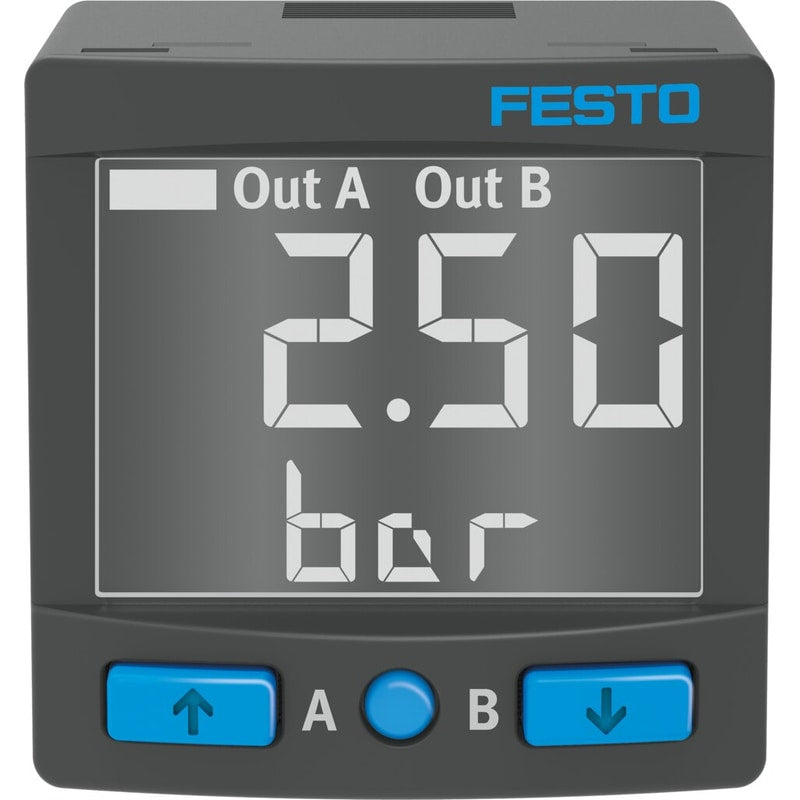

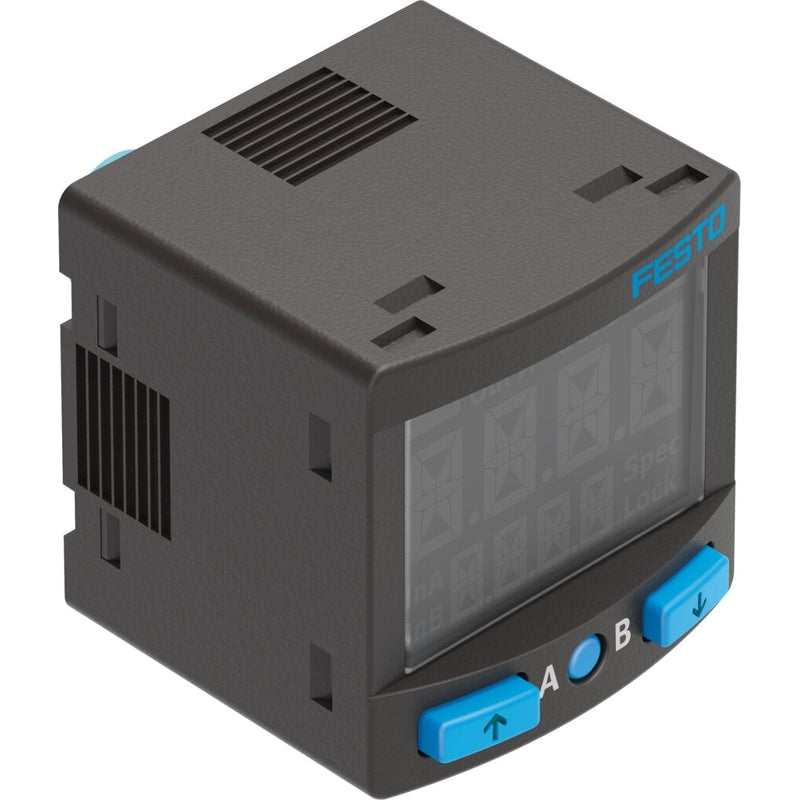

Pressure sensor
SPAN-P10R-Q4-PN-PN-L1
8035552
GTIN 4052568284923
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Switching element function
- N/C contact/N/O contact switchable
- Pneumatic connection
- For pneumatic tubing outside diameter 4 mm
Regular price
$160.17
Unit price
SPAN-P10R-Q4-PN-PN-L1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAN-P10R-Q4-PN-PN-L1
Regular price
$160.17
Unit price
SPAN-P10R-Q4-PN-PN-L1 is backordered and will ship as soon as it is back in stock.
pressure sensor SPAN-P10R-Q4-PN-PN-L1 Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Certificate issuing department | UL E322346 |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 10 bar |
| Overload range | 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
