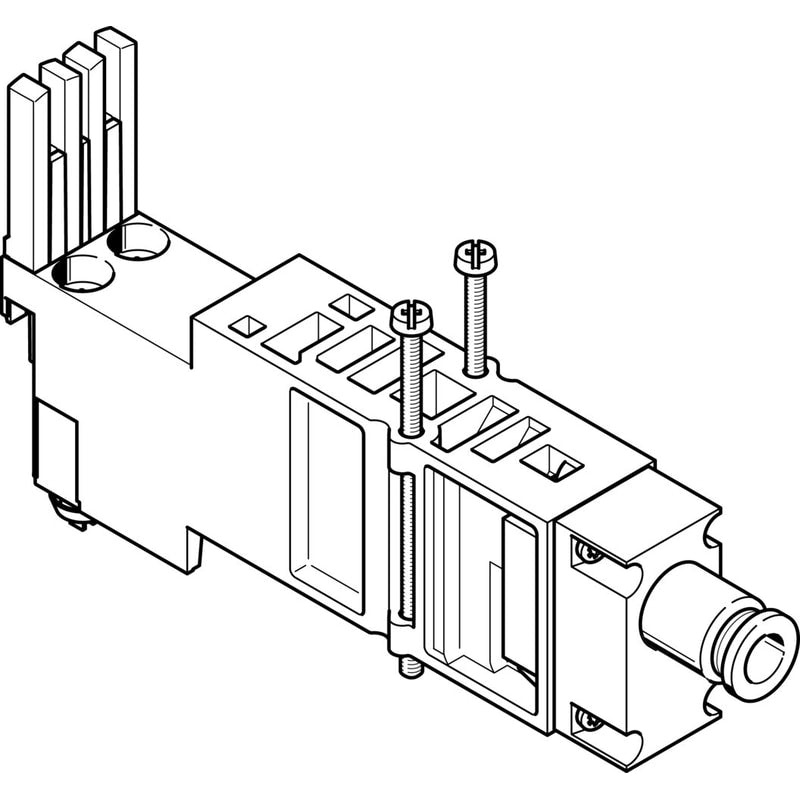

Vertical pressure supply plate
VMPA2-VSP-QS1/4
8035442
GTIN 4052568110086
Vendor Festo
Regular price
$76.22
Unit price
VMPA2-VSP-QS1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-VSP-QS1/4
Regular price
$76.22
Unit price
VMPA2-VSP-QS1/4 is backordered and will ship as soon as it is back in stock.
vertical pressure supply plate VMPA2-VSP-QS1/4 Grid dimension=21 mm, Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Corrosion resistance classification CRC=1 - Low corrosion stress
| Grid dimension | 21 mm |
|---|---|
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 80 g |
| Pneumatic connection, port 1 | QS-1/4 |
| Materials note | Conforms to RoHS |
| Material supply plate | PA-reinforced |
