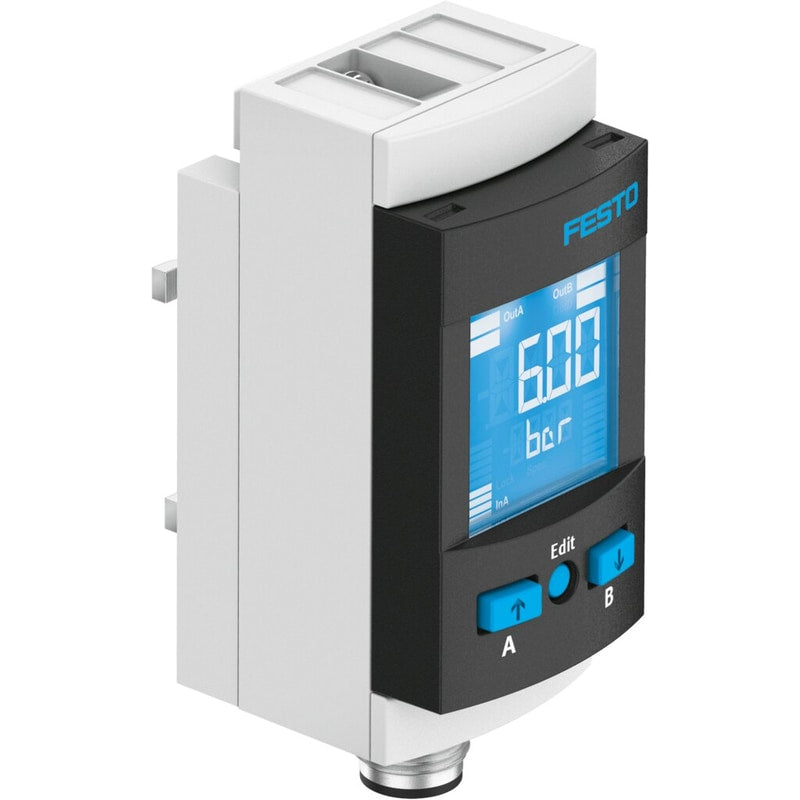

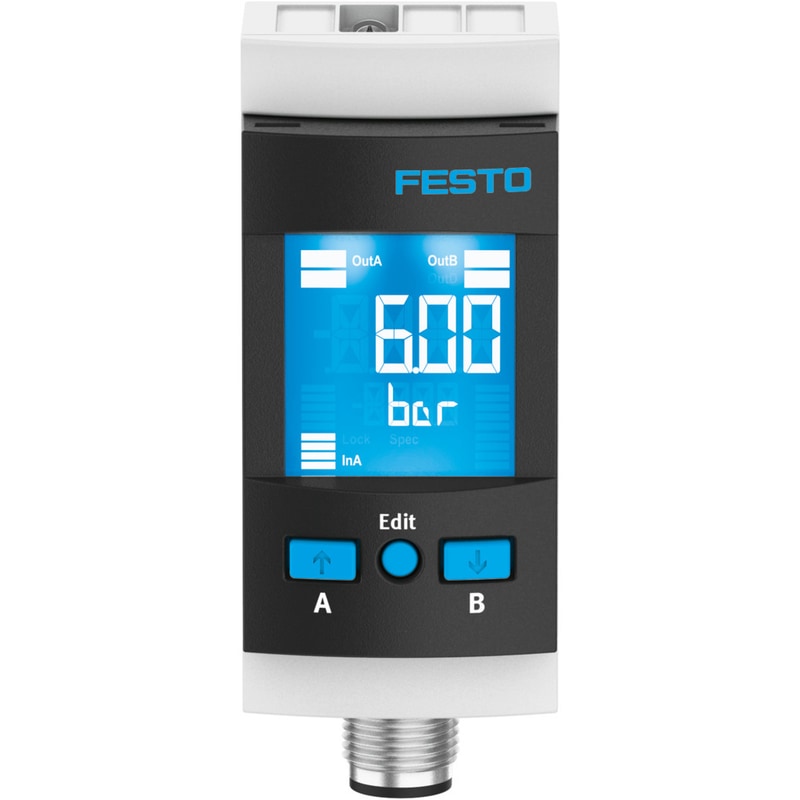

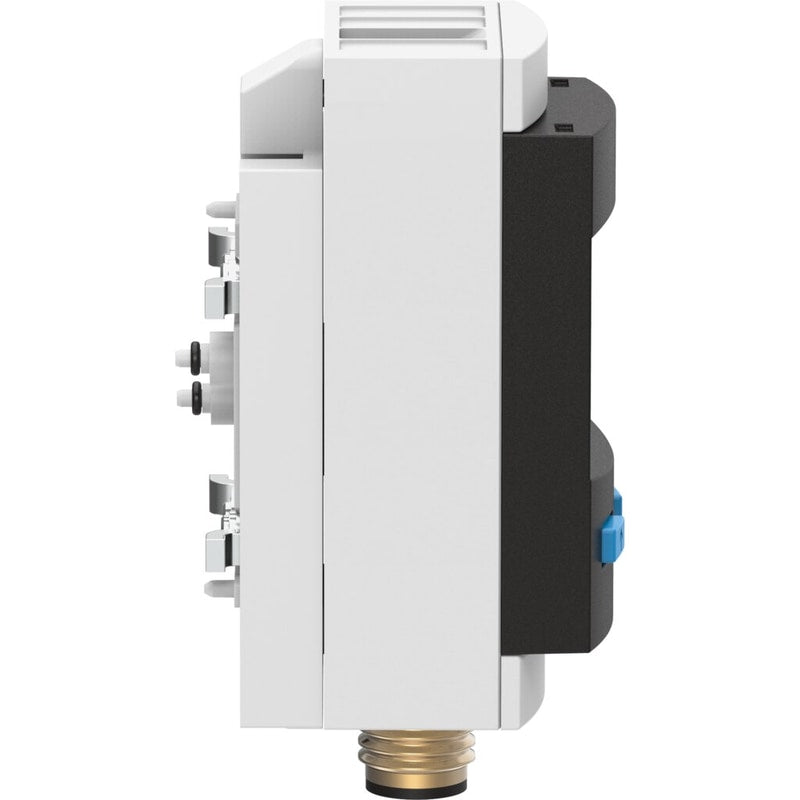

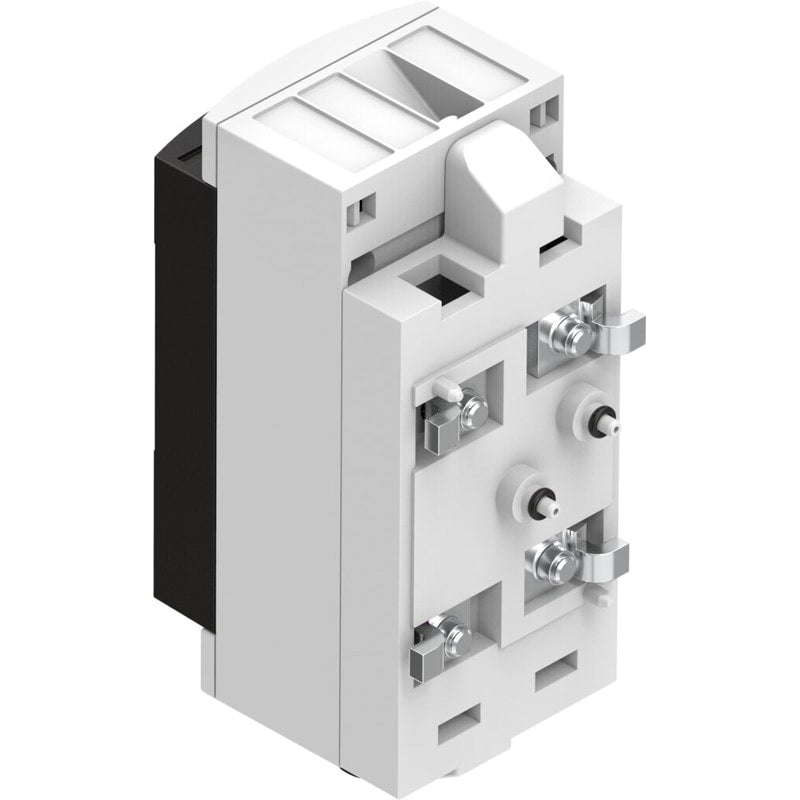

Pressure sensor
SPAU-P10R-MS4-F-L-PNLK-PNVBA-M12D
8035304
GTIN 4052568429447
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Switching element function
- N/C contact/N/O contact switchable
- Pneumatic connection
- Flange
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
Regular price
$271.87
Unit price
SPAU-P10R-MS4-F-L-PNLK-PNVBA-M12D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPAU-P10R-MS4-F-L-PNLK-PNVBA-M12D
Regular price
$271.87
Unit price
SPAU-P10R-MS4-F-L-PNLK-PNVBA-M12D is backordered and will ship as soon as it is back in stock.
| Type code | SPAU |
|---|---|
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection for input 1, connection pattern | 995386 |
| KC characters | KC EMC |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, number of pins/wires | 4 |
| Symbol | 995410 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0 bar |
| Pressure measuring range end value | 10 bar |
| Max. overload pressure | 15 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| ADC resolution | 12 bit |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature co-efficient in ± %FS/K | 0.05 %FS/K |
| Switching function | Freely programmable |
| Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100 mA |
| Analog output | 0 - 10 V4 - 20 mA1 - 5 V |
| Rise time | 3 ms |
| Max. load resistance of current output | 500 Ohm |
| Min. load resistance of voltage output | 10 kOhm |
| Short-circuit protection | yes |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Binary data channel (BDC)Teach channelProcess data variable (PDV)IdentificationDiagnostics |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 0 Byte |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring) |
| IO-Link®, minimum cycle time | 3 ms |
| IO-Link®, data memory required | 500 byte |
| DC operating voltage range | 20 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Type of mounting | On service unit |
| Mounting position | Any |
| Pneumatic connection | Flange |
| Product weight | 80 g |
| Display type | Illuminated LCD |
| Displayable unit(s) | MPabarinchH2OinchHgkPammHgkgf/cm²psi |
| Setting options | IO-Link®Teach-inVia display and pushbuttons |
| Protection against tampering | IO-Link®PIN code |
| Threshold value setting range | 0 % ... 100 % |
| Hysteresis setting range | 0 % ... 90 % |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
