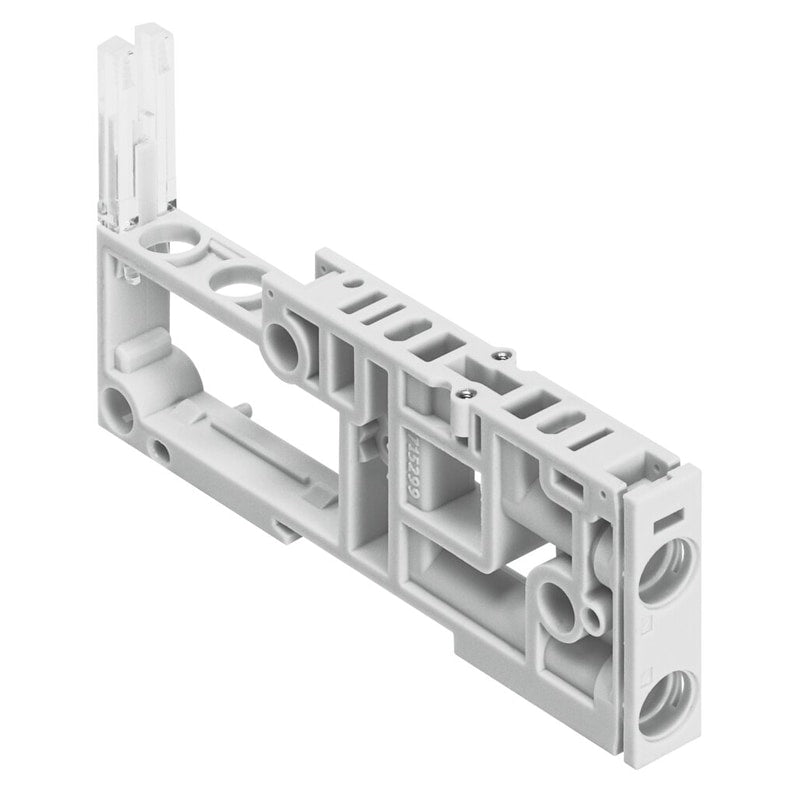

Sub-base
VMPAL-AP-10-T35-RV
8035232
GTIN 4052568294410
Vendor Festo
Regular price
$29.18
Unit price
VMPAL-AP-10-T35-RV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-AP-10-T35-RV
Regular price
$29.18
Unit price
VMPAL-AP-10-T35-RV is backordered and will ship as soon as it is back in stock.
| Width | 10 mm |
|---|---|
| Width | 10.7 mm |
| Length | 107.3 mm |
| Width dimension | 10.7 mm |
| Type code | VMPAL |
| Pressure zone separation | Channels 3 and 5 |
| Integrated function | Non-return valve |
| Max. no. of valve positions | 1 |
| Flow direction | Non-reversible |
| Valve manifold design | Valve sizes can be mixed |
| Operating pressure | 0 bar ... 10 bar |
| Pilot pressure | 3 bar ... 8 bar |
| Suitability for vacuum | no |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 25 g |
| Pneumatic connection 2 | for 10 mm cartridge |
| Pneumatic connection 4 | For 10 mm cartridge |
| Note on materials | RoHS-compliant |
| Material of sub-base | PA-reinforced |
